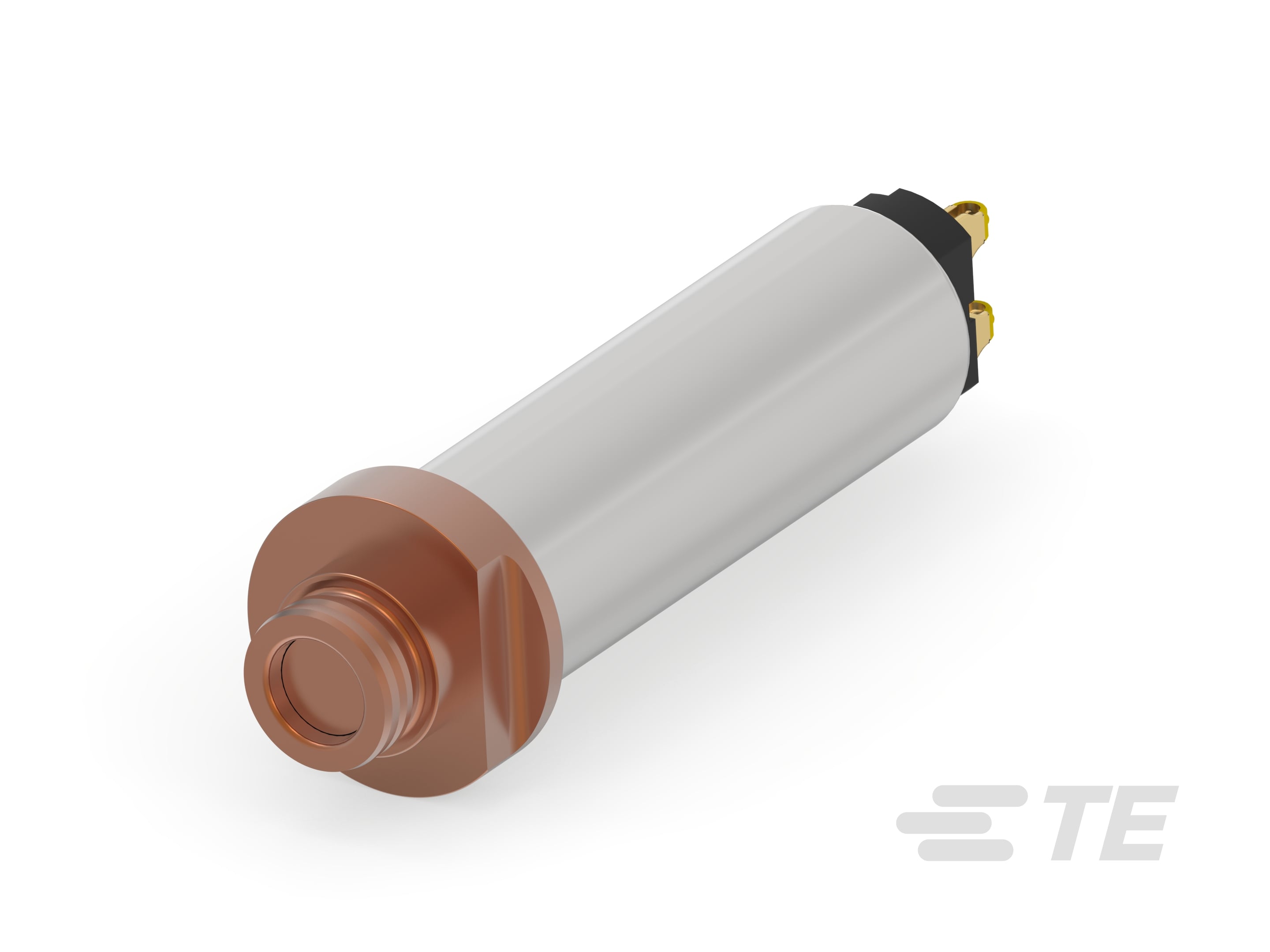

Hydraulic Brake Pressure Sensor

Hydraulic Brake Pressure Sensor-CAT-TRS0023
TE's Hydraulic Brake Pressure Sensor ensures optimal brake performance by monitoring hydraulic pressure in brake lines. Crucial for modern braking systems, they provide critical data to the Electronic Control Unit for safe and efficient vehicle operation.
More Less

Product Features

  • Pressure Sensor Type : Automotive Pressure Sensor

  • Supply Voltage Range (V): 4.75 – 5.25

  • Operating Temperature Range (°C): -40 – 130

Available from

LADD Inc
Overview

The hydraulic brake pressure sensor continuously monitors the hydraulic pressure within the brake lines, providing critical data to the Electronic Control Unit (ECU) for optimal brake performance. This sensor is a crucial component in modern braking systems, playing a vital role in providing safe and efficient vehicle operation.

Key Features

  • Strain gauge technolgy
  • Wide operating temperature range
  • Fast response time
  • Versatile compatibilty

Applications

  • Anti-lock Braking System (ABS)
  • Electronic Stability Control (ESC)
  • Integrated brake module
  • Vacuum booster
gray-bar-line

Engineered Durability

Leveraging TE Connectivity's extensive experience in pressure sensor design, this sensor is engineered to endure and perform in harsh conditions. With a design that helps mitigate the risk of assembly damage, it upholds integrity and reliability across diverse automotive environments.

High Stability

Through the use of strain gauge technology, this sensor offers high sensitivity, precise measurement capabilities and exceptional stability.

Functional Safety

TE's experience and proficiency in Functional Safety (FuSA) design help partners in achieving their safety objectives, making these sensors a trustworthy choice for critical braking applications.

gray-bar-line

Connect With Us

At TE, we understand the critical role of precise, high-quality sensors in automotive engineering. Our solutions, developed through advanced engineering capabilities and industry application knowledge, are tailored to meet the most demanding technical requirements. Around the world, we ensure responsive service and seamless integration into your existing systems. If you're looking for sensors that deliver both performance and reliability, let's connect. Our team is ready to discuss how we can contribute to the success of your next project with our customized sensor solutions.




Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  Automotive Pressure Sensor

Electrical Characteristics

  • Supply Voltage Range (V) 4.75 – 5.25

Usage Conditions

  • Operating Temperature Range (°C) -40 – 130

Operation/Application

  • Functional Area  Brake & Safety

Reference Number

  • TE Internal Number CAT-TRS0023
