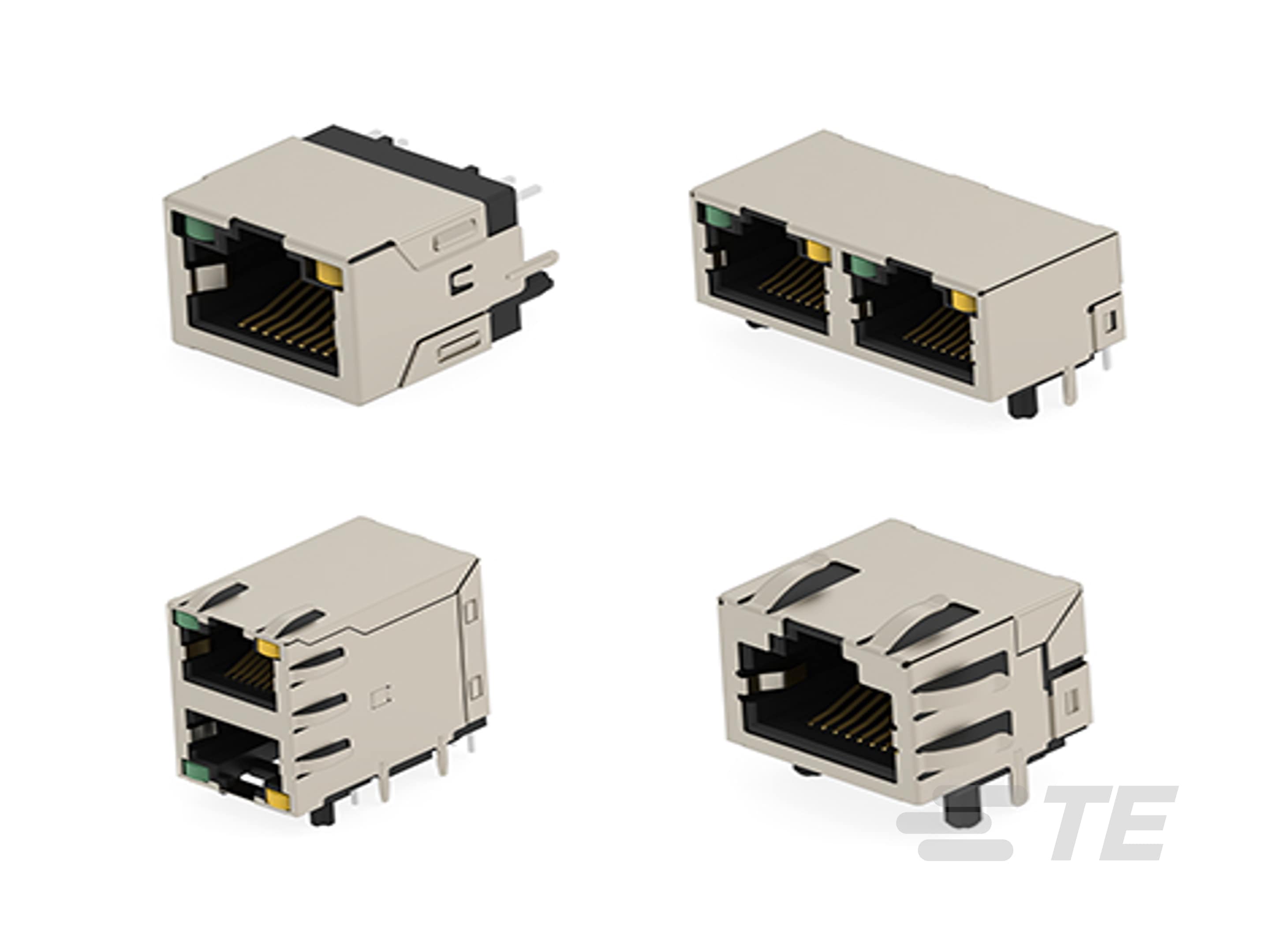

Industrial RJ45 modular jacks: 10/100 Mbps and 1 Gbps, THT reflow solderable

Industrial RJ45 modular jacks: 10/100 Mbps and 1 Gbps, THT reflow solderable-CAT-Z16-RJT45
TE RJ45 modular jacks represent the natural expansion of our Industrial RJ45 jacks portfolio, including a new set of base connectors covering the industrial standards of robustness and suitable to be used together with our discrete magnetics product line
More Less

Product Features

  • Modular Jack & Plug Interface Type : RJ45

  • Port Configuration : Single Port, Multiple Ports

  • Port Matrix Configuration : 1 x 2, 2 x 1, 1 x 1

  • Modular Jacks & Plugs Products : RJ Type Jacks & Plugs

  • Connector Contact Density : Standard

Available from

LADD Inc
Overview
Datasheet (English)
Industrial RJ45 Modular Jacks

Application

Controls for next-generation industrial automation

Learn how we are helping customers design next-gen industrial automation systems, with a broad range of solutions for programmable logic controllers (PLC), human machine interfaces (HMI), and I/O modules to increase productivity and safety across the factory floor.
Industrial RJ45 connectors

Product Group

Industrial RJ45 connectors

Industrial RJ45 connectors are rectangular data connectors designed for Ethernet networking in industrial applications. Our portfolio is build up of various form factors, RJ45 Jacks, Ethernet magnetics, and field installable cable connectors.
Connect With TE Expert

Need help finding the right product or technical document? Connect with us to know more.

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Modular Jack & Plug Interface Type  RJ45

  • Modular Jacks & Plugs Products  RJ Type Jacks & Plugs

  • Modular Connector Style  Jack

  • Grounding Options  PCB and Panel Ground, PCB Ground

  • Connector & Contact Terminates To  Printed Circuit Board

Body Features

  • PCB Retention Feature Material  LCP

  • LED Color (Bottom Right)  Bicolor Yellow/Green, None

  • Shield Plating Material  Nickel

  • Insulator Material  LCP

  • LED Color (Top Left)  None, Bicolor Yellow/Green

  • LED Color (Top Right)  None, Bicolor Yellow/Green

  • Shield Material  Copper Alloy

  • LED Color (Bottom Left)  Bicolor Yellow/Green, None

  • Modular Jack Latch Orientation  Inverted (Top) / Standard (Bottom), Inverted - Latch Up

  • Connector Profile  Standard

Configuration Features

  • Number of Panel Ground Tabs  8, 0, 2, 6

  • Multiple Port Configuration  Ganged, Stacked

  • Number of PCB Ground Tabs  2, 4

  • Panel Ground Location  Top and Side

  • Port Configuration  Single Port, Multiple Ports

  • Port Matrix Configuration  1 x 2, 2 x 1, 1 x 1

  • Connector Contact Density  Standard

  • Number of Positions  8

  • Number of Loaded Positions  8

  • PCB Mount Orientation  Vertical, Right Angle

Contact Features

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Underplating Material  Nickel

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Contact Current Rating (Max) (A) 1.5

  • Contact Mating Area Plating Material  Gold

  • Contact Base Material  Phosphor Bronze

  • Contact Mating Area Plating Material Thickness  .76 µm [ 30 µin ]

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Performance Category  Cat 5, Cat 5e

Mechanical Attachment

  • PCB Mount Retention Type  Plastic Post, Boardlock

  • Connector Mounting Type  Board Mount

Operation/Application

  • Indicator Type  LED

  • Shielded  Yes

Signal Characteristics

  • Data Rate (Mb/s) 100, 10, 1000

Termination Features

  • Termination Method to PCB  Through Hole - Solder

  • Termination Post & Tail Length  2.54 mm [ .1 in ]

Housing Features

  • Mating Entry Location  Top, Side

  • Housing Color  Black

  • Housing Material  LCP (Liquid Crystal Polymer)

Dimensions

  • Connector Height (mm) 15.75, 25.4, 13.46, 13.5, 13.45, 13.2, 25.5, 13.1, 16.7

  • Connector Height (in) 1.003, .515, .62, 1, .657, .531, .53, .519

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Packaging Features

  • Packaging Method  Tape & Reel, Tray

Other

  • EU RoHS Compliance  Compliant

Reference Number

  • TE Internal Number CAT-Z16-RJT45
