Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Recovered Wall Thickness (Tolerance) : 2.41 mm [ .095 in ]

• Product Length : 10 mm [ .393 in ]

• Recovered Wall Thickness (Nominal) : 2.41 mm [ .095 in ]

• Recovered Inside Diameter (Max) : 8.8 mm [ .345 in ]

• Expanded Inside Diameter (Min) : 44.45 mm [ 1.75 in ]

• Tubing Size Range : 8.8 – 44.45 mm [ .345 – 1.75 in ]

• Shrink Temperature (Min) (°C): 80

• Tubing Flammability Type : Flame-Retardant

• Operating Temperature Range (°C): -55 – 110

• Recovery Temperature (°C): 121

• Operating Voltage (Max) (kV): .6

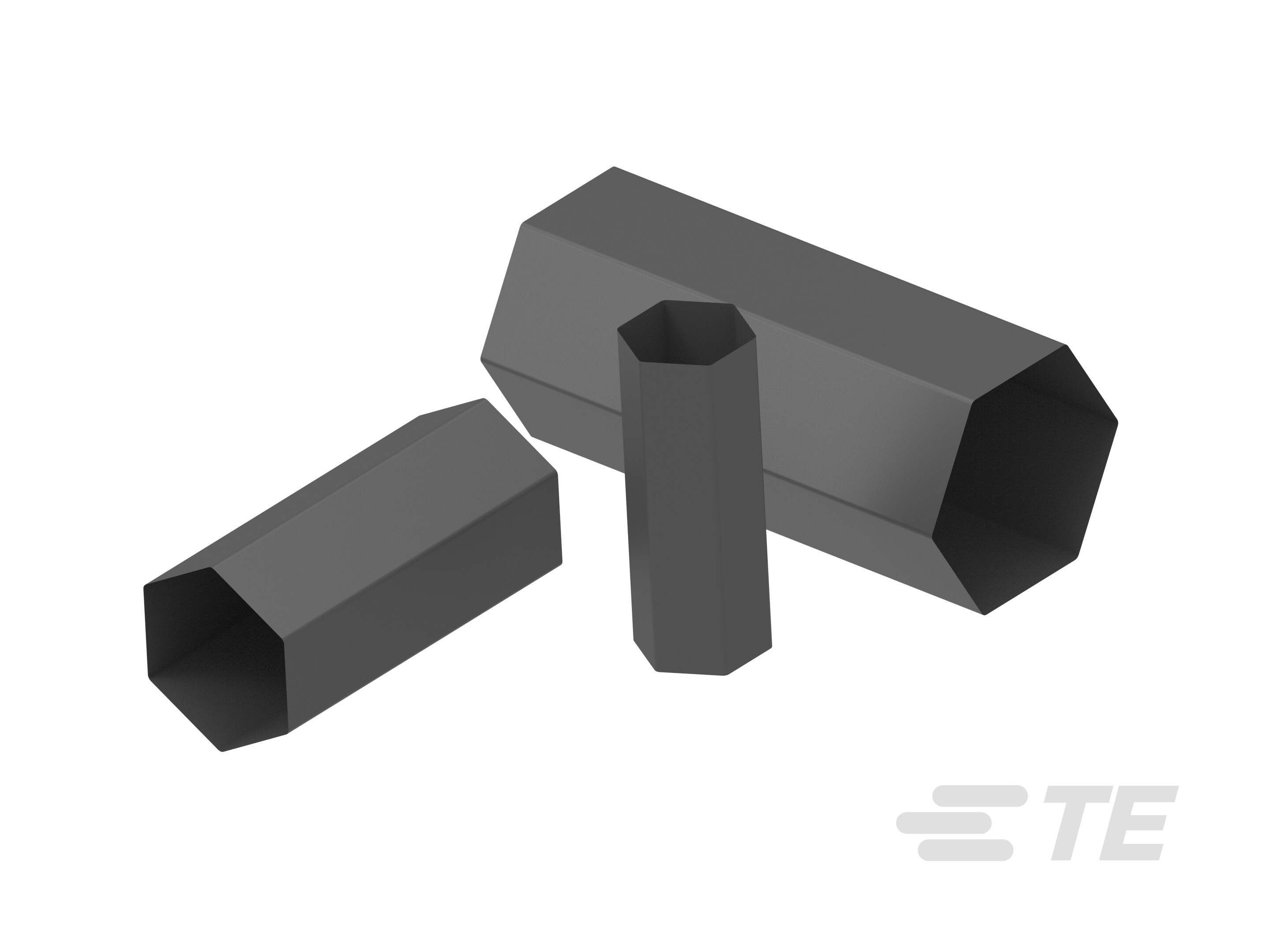

• Tubing Product Type : Heat Shrink Tubing

• Wall Type : Single Wall

• Primary Product Color : Black

• Shrink Ratio : 5:1

• Primary Product Material : Irradiated Modified Polyolefin

• Flexibility : Semi-Rigid

• Packaging Method : Box

• Mechanical Resistance : Mechanical Damage, Abrasion

• Applicable Region : Global
