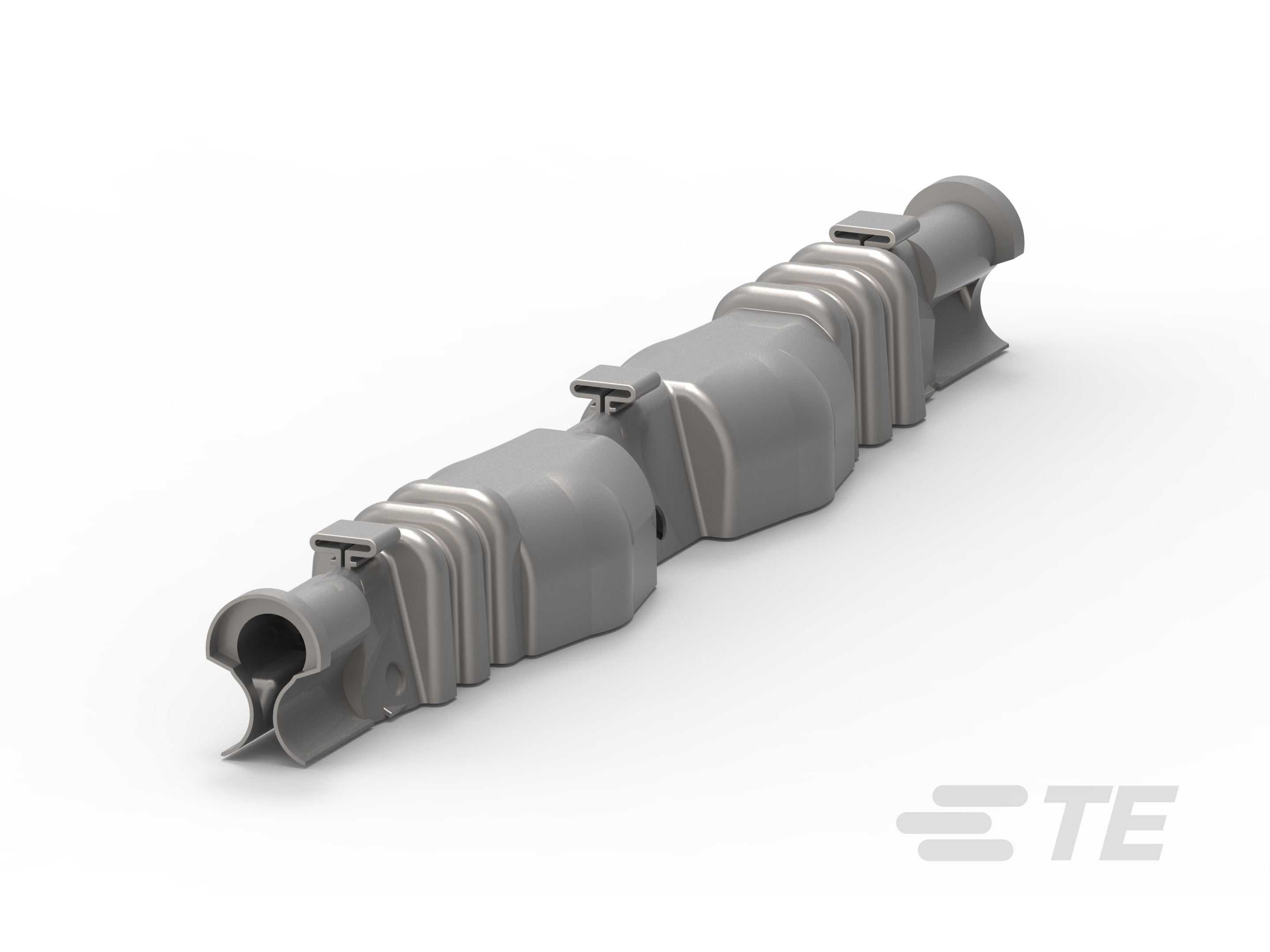

CP7898-000
Cold Applied Energised Installation, ≤ 35 kV, Insulator Cover, Double PIN, RAYCHEM BCIC, Electrical Insulator Covers & Accessories
CP7898-000
Cold Applied Energised Installation, ≤ 35 kV, Insulator Cover, Double PIN, RAYCHEM BCIC, Electrical Insulator Covers & Accessories
-
- RAYCHEM
- RAYCHEM BCIC
- TE Internal #: CP7898-000
- TE Internal Description: BCIC-G-DPIN-556-01(B6)
- Alias #: BCIC-G-DPIN-556-01(B6) 1-1899555-7
- All Bird Guards For Power Lines (41)
-
Operating Temperature Range (°C): 0 – 105
-
Primary Product Color : Gray
-
Primary Product Material : Crosslinked Polyolefin
-
LV/MV Insulating Cover Product Type : Insulator Cover
-
Compatible Conductor Range (AWG/kcmil): 6 – 556
Documents
Product Drawings
- BCIC-G-DPIN-556-01 ENG_CD_E00000838_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CP7898-000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_CP7898-000_A.2d_dxf.zip English
- ENG_CVM_CVM_CP7898-000_A.3d_igs.zip English
- ENG_CVM_CVM_CP7898-000_A.3d_stp.zip English
Datasheets & Catalog Pages
- RAPTOR COVER BCIC ENG_DS_EPP-2586_1603.pdf English
- RAYCHEM DEAD END RAPTOR COVERS BCIC/BCAC ENG_DS_EPP-2836_A1.pdf English
