CS0531-000

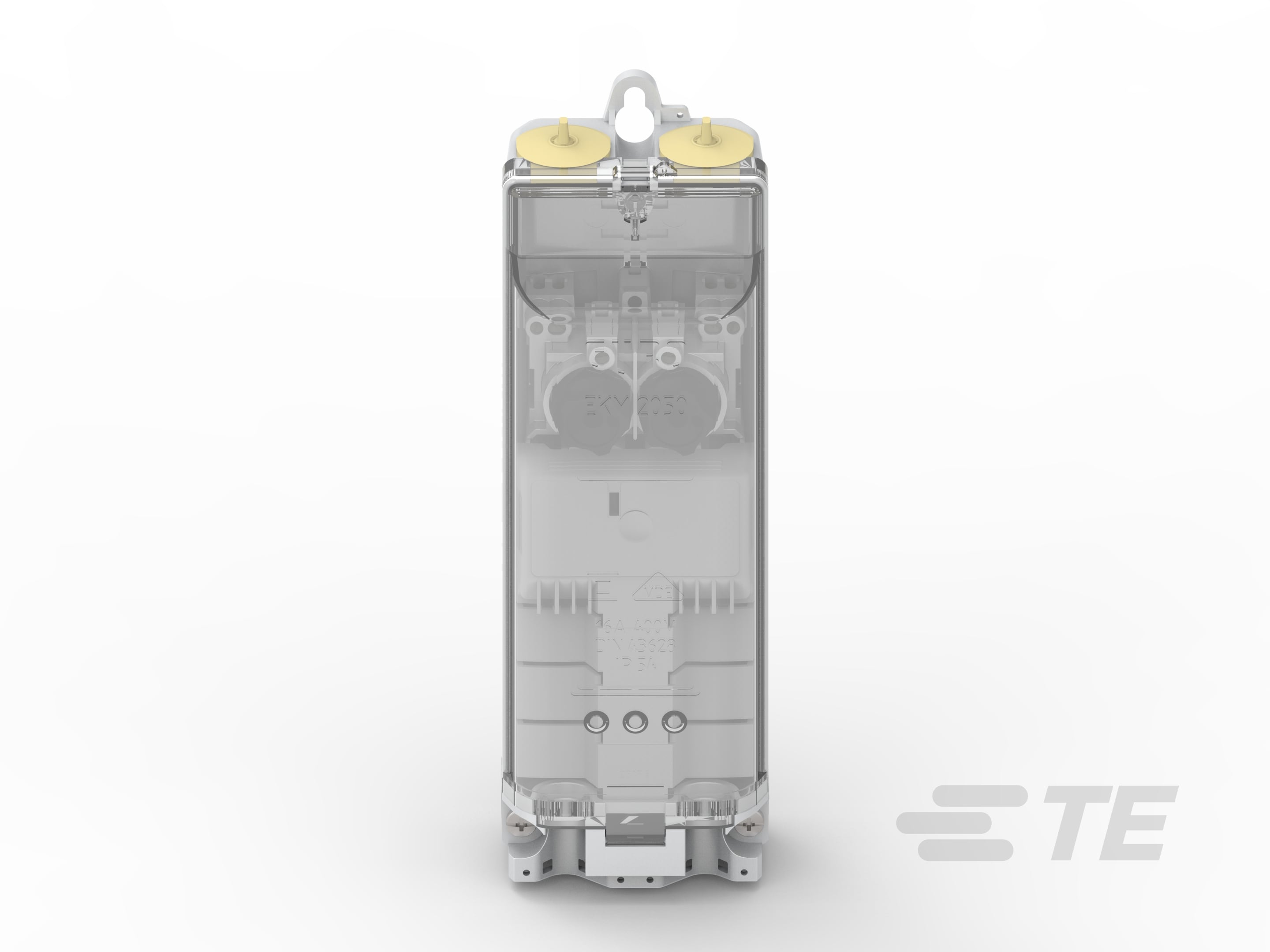

400 V, Street Lighting Fuse Box, 270 mm / 280 mm / 300 mm Door Height, 100 mm / 85 mm / 90 mm Door Width, IP54, GURO EKM, Street Lighting Fuse Boxes
CS0531-000
400 V, Street Lighting Fuse Box, 270 mm / 280 mm / 300 mm Door Height, 100 mm / 85 mm / 90 mm Door Width, IP54, GURO EKM, Street Lighting Fuse Boxes
-
- GURO
- GURO EKM
- TE Internal #: CS0531-000
- TE Internal Description: EKM-2050-2D1-5S/U
- Alias #: EKM-2050-2D1-5S/U
-
Voltage Rating (V): 400
-
Street Lighting Product Type : Street Lighting Fuse Box
-
Door Height (mm): 300, 280, 350, 270
-
Door Width (mm): 90, 85, 100
-
IP Rating : IP54
Documents
Product Drawings
- Dimensional Drawing Fuse Box-Flat Cover ENG_CD_CD-412-EKM-2050-FD_2001.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_CS0531-000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_CS0531-000_A.2d_dxf.zip English
- ENG_CVM_CVM_CS0531-000_A.3d_igs.zip English
- ENG_CVM_CVM_CS0531-000_A.3d_stp.zip English
Datasheets & Catalog Pages
- UBERSPANNUNGSSCHUTZ GER_CS_EPP-2446_1804.pdf German
- EKM2050-FUSE-BOX-STREET-LIGHTING ENG_DS_EPP-2348_1410.pdf English
- EKM-2050-2D1-5S/U GER_DS_CS0531-000_88520_0_CS0531-000_88520.pdf German
