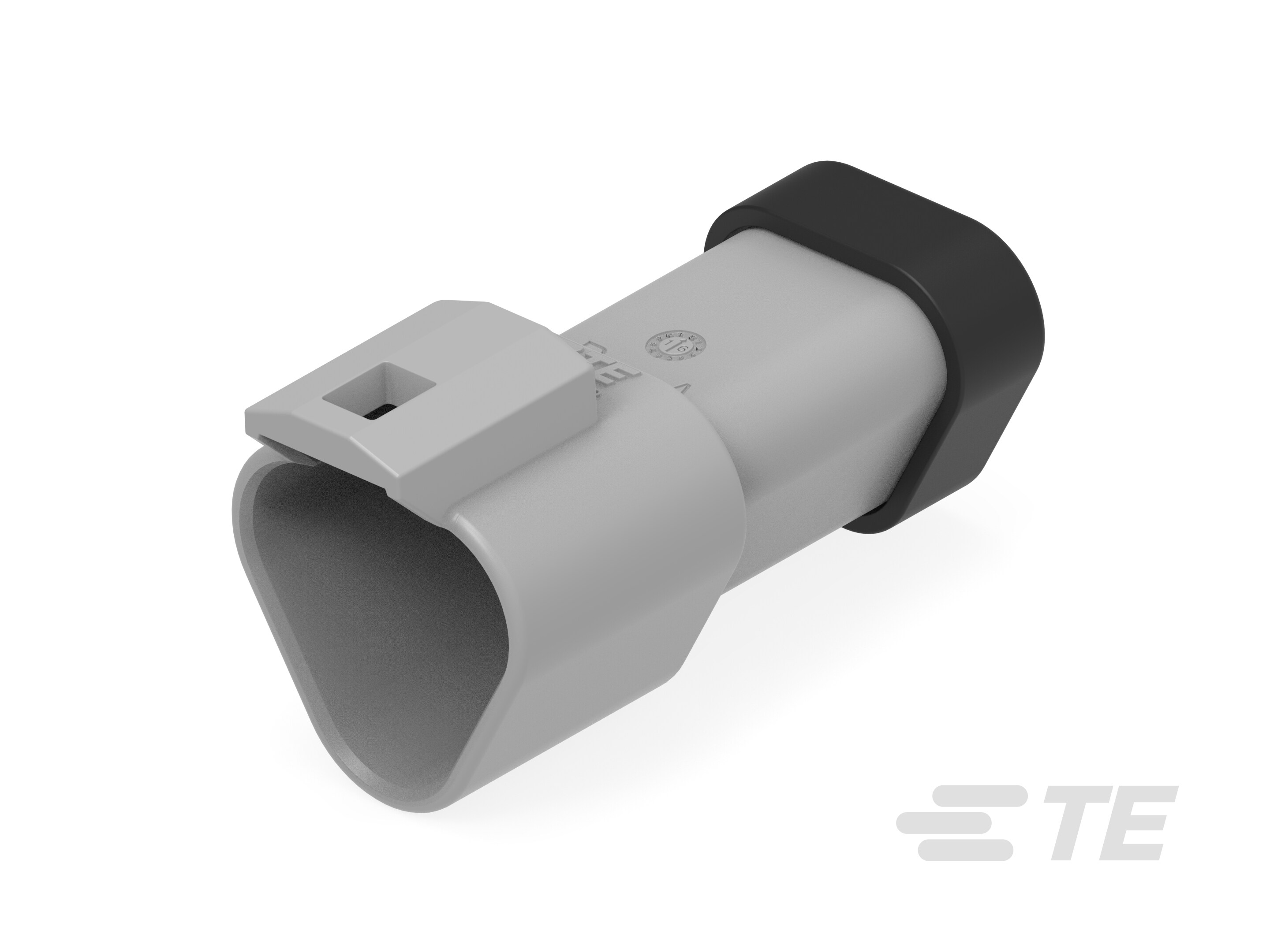

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Triangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 2

• Number of Positions : 3

• Connector Modification : Solid Rear Grommet, End Cap

• Blank Cavity Position : 2, 1, 3

• Operating Voltage (VDC): 250

• Nominal Voltage Architecture (V): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Gray

• Mating Pin Diameter : 1.59 mm [ .063 in ]

• Contact Current Rating (Max) (A): 13

• Contact Type : Pin

• Contact Size : Size 16

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Mating Alignment Type : Polarized

• Mating Alignment : With

• Centerline (Pitch) : 8.7 mm [ .341 in ]

• Housing Material : PA GF

• Product Width : 21.13 mm [ .832 in ]

• Connector Height : 24.71 mm [ .973 in ]

• Product Length : 44.65 mm [ 1.758 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• UL Flammability Rating : 12mm Flame Test per Standard UL-94

• Degree of Protection : IP68, IP6K9K

• Packaging Method : Box

• Packaging Quantity : 800
