Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

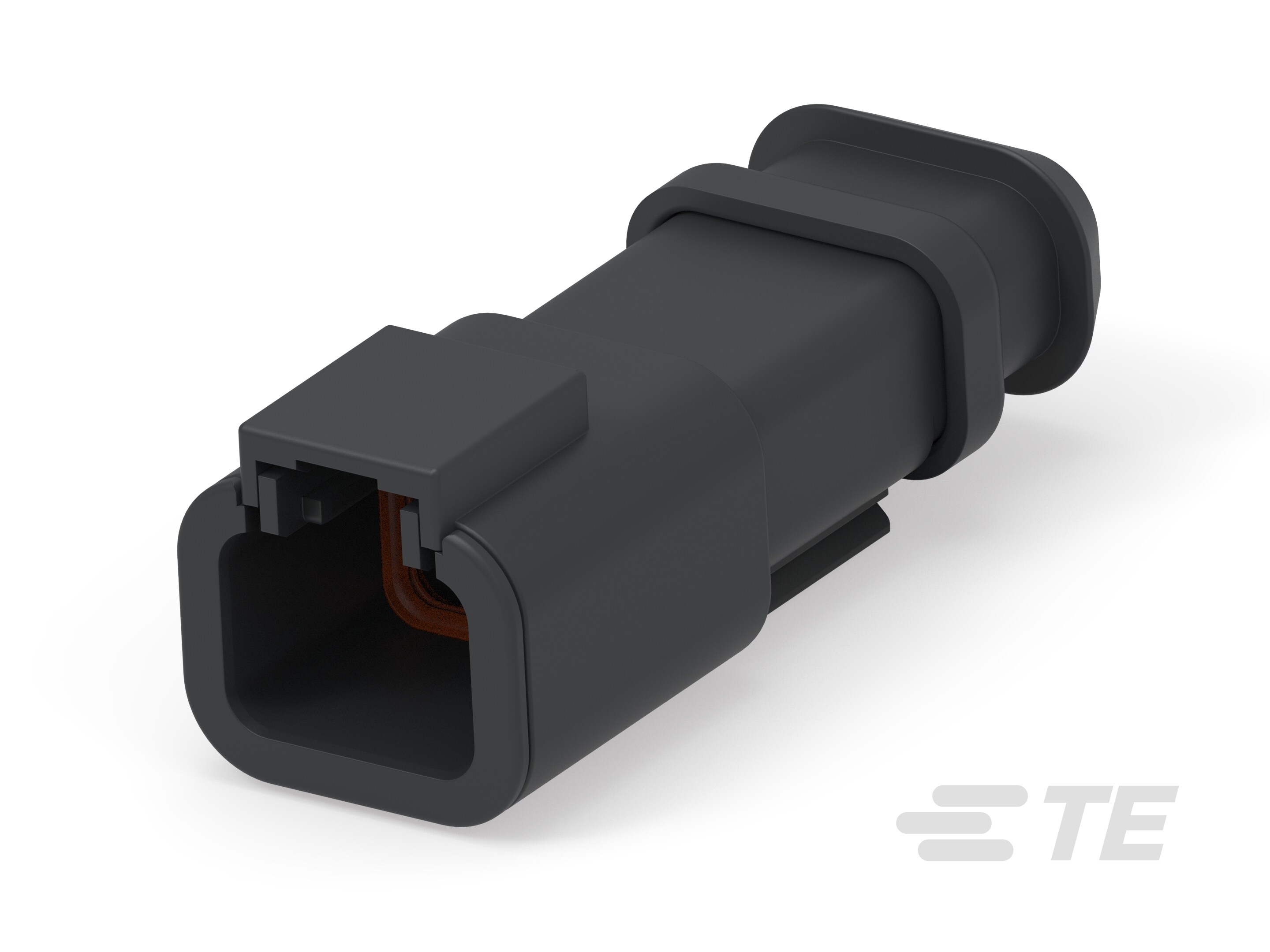

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 1

• Connector Seal Code : N Seal

• Number of Positions : 2

• Connector Modification : Shrink Boot Adapter

• Blank Cavity Position : 0

• Operating Voltage (VDC): 200

• Nominal Voltage Architecture (V): 250

• Operating Voltage (VAC): 200

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Mating Pin Diameter : 2.4 mm [ .094 in ]

• Contact Current Rating (Max) (A): 25

• Contact Type : Pin

• Contact Size : Size 12

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : No

• Strain Relief : Without

• Mating Alignment Type : Polarized

• Mating Alignment : With

• Centerline (Pitch) : 6.71 mm [ .264 in ]

• Housing Material : PA 66 GF15

• Product Width : 21.5 mm [ .846 in ]

• Connector Height : 60 mm [ 2.36 in ]

• Compatible Insulation Diameter Range : 3.4 – 4.3 mm [ .134 – .169 in ]

• Product Length : 22.1 mm [ .87 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• IP Rating : IP6K9K, IP68

• UL Flammability Rating : UL 94V-0

• Packaging Method : Box

• Packaging Quantity : 1
