Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

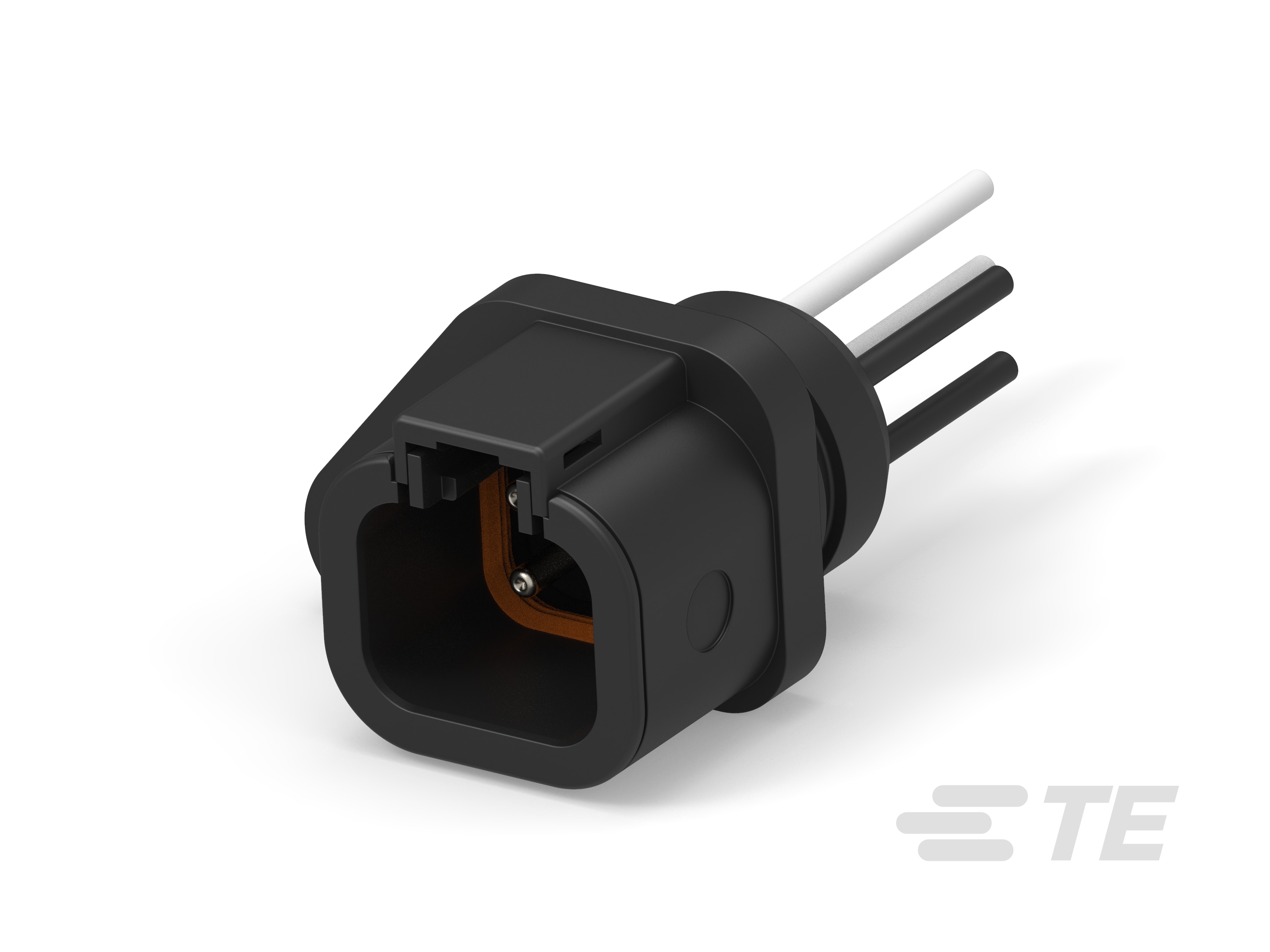

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire, Wire-to-Panel

• Mixed & Hybrid Connector : No

• Number of Rows : 2

• Number of Positions : 4

• Blank Cavity Position : 0

• Operating Voltage (VDC): 200

• Nominal Voltage Architecture (V): 200

• Operating Voltage (VAC): 200

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Mating Pin Diameter : 2.39 mm [ .094 in ]

• Contact Current Rating (Max) (A): 25

• Contact Type : Pin

• Contact Size : Size 12

• Connector Mounting Type : Panel Mount

• Terminal Position Assurance : Yes

• Strain Relief : Add By Accessory

• Mating Alignment Type : Polarized

• Mating Alignment : With

• Centerline (Pitch) : 6.71 mm [ .264 in ]

• Housing Material : PA GF

• Product Width : 41 mm [ 1.614 in ]

• Connector Height : 28.5 mm [ 1.122 in ]

• Row-to-Row Spacing : 10.16 mm [ .4 in ]

• Product Length : 38.58 mm [ 1.519 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Circuit Application : Power

• Compatible With Agency/Standards Products : SAE J2030

• UL Flammability Rating : 20mm Flame Test per Standard UL-94

• Degree of Protection : IP68

• Packaging Method : Box

• Packaging Quantity : 250
