H1131001501-000

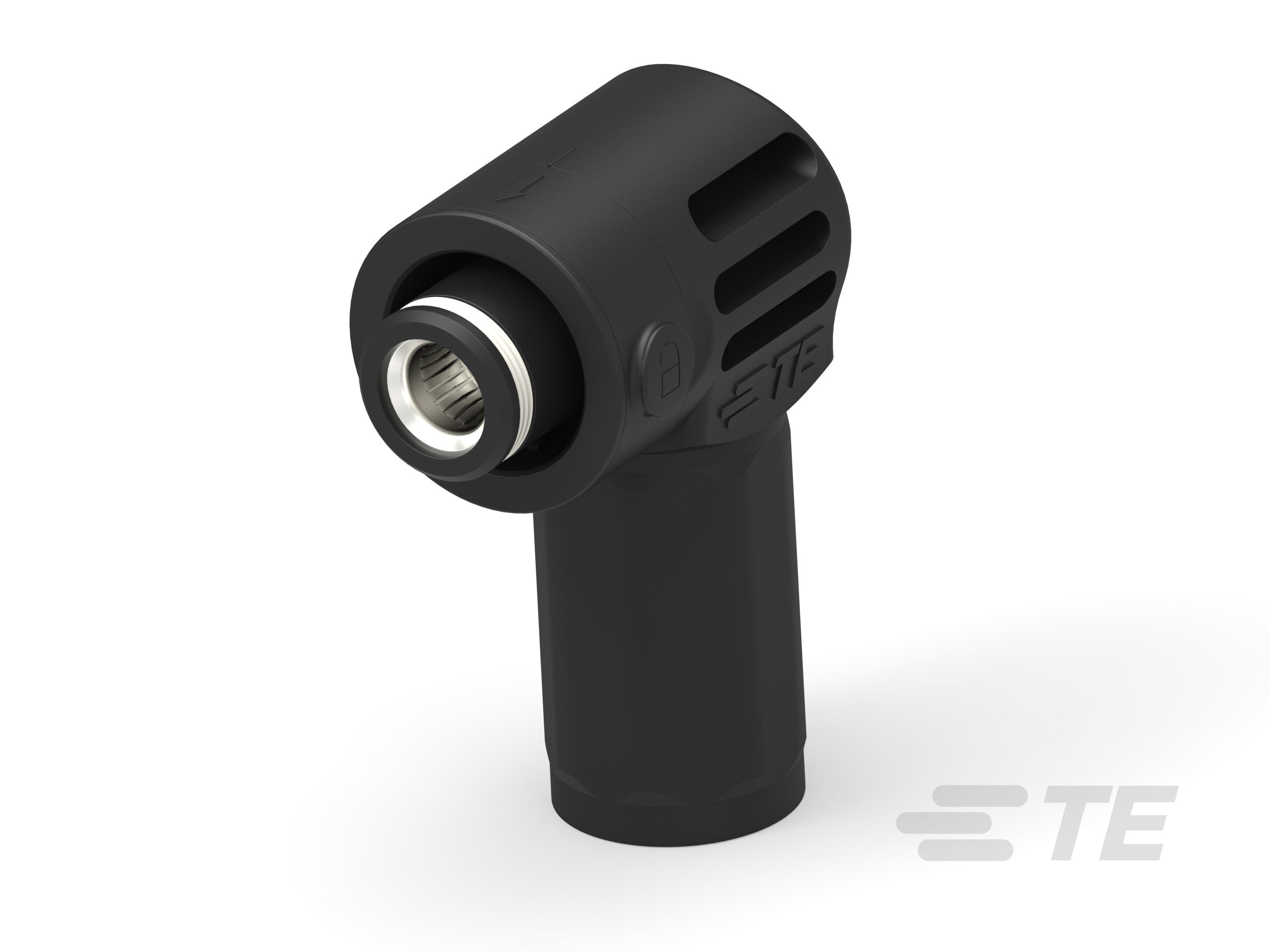

1 Position Circular Power Connector, Connector Assembly, 1500 VDC, 95 mm² Wire, Cable-to-Panel, Sealable, Wire & Cable, Plug, Power, Black
H1131001501-000
1 Position Circular Power Connector, Connector Assembly, 1500 VDC, 95 mm² Wire, Cable-to-Panel, Sealable, Wire & Cable, Plug, Power, Black
- TE Internal #: H1131001501-000
- TE Internal Description: HPC-350-095-F-P-BK-01-A
- All Efficient Integration: HPC 350A Connector for BESS Applications (12)
-
Number of Positions : 1
-
Connector Product Type : Connector Assembly
-
Operating Voltage (VDC): 1500
-
Wire Size (mm²): 95
-
Connector System : Cable-to-Panel
Documents
Product Drawings
- HPC-350-095-F-P-XX-01-X ENG_CD_H11310XX501000_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_H1131001501-000_A1.pdf 3D
- Customer View Model ENG_CVM_CVM_H1131001501-000_A1.3d_stp.zip English
- ENG_CVM_CVM_H1131001501-000_A1.2d_dxf.zip English
- ENG_CVM_CVM_H1131001501-000_A1.3d_igs.zip English
Datasheets & Catalog Pages
- HPC 350A BESS Connector ENG_DS_hpc-350a-bess-connector_2406.pdf English
- HPC 350A BESS Connector CHI_DS_hpc-350a-bess-connector_2406.pdf
Product Specifications
- Qualification test report for HPC-350 CHI_SS_501-137616-2_CHI_A.pdf
- Application Specification ENG_SS_114-137616_C.pdf English
- CHI_SS_114-137616_CHI_C.pdf
- Product Specification ENG_SS_108-137616_C.pdf English
- Qualification Test Report ENG_SS_501-137616-2_A.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E531686_20240228_C1_1.pdf English
- TUV Certificate ENG_AAD_TUV_CERT_705102400803_20240418_C1_1.pdf English
