Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

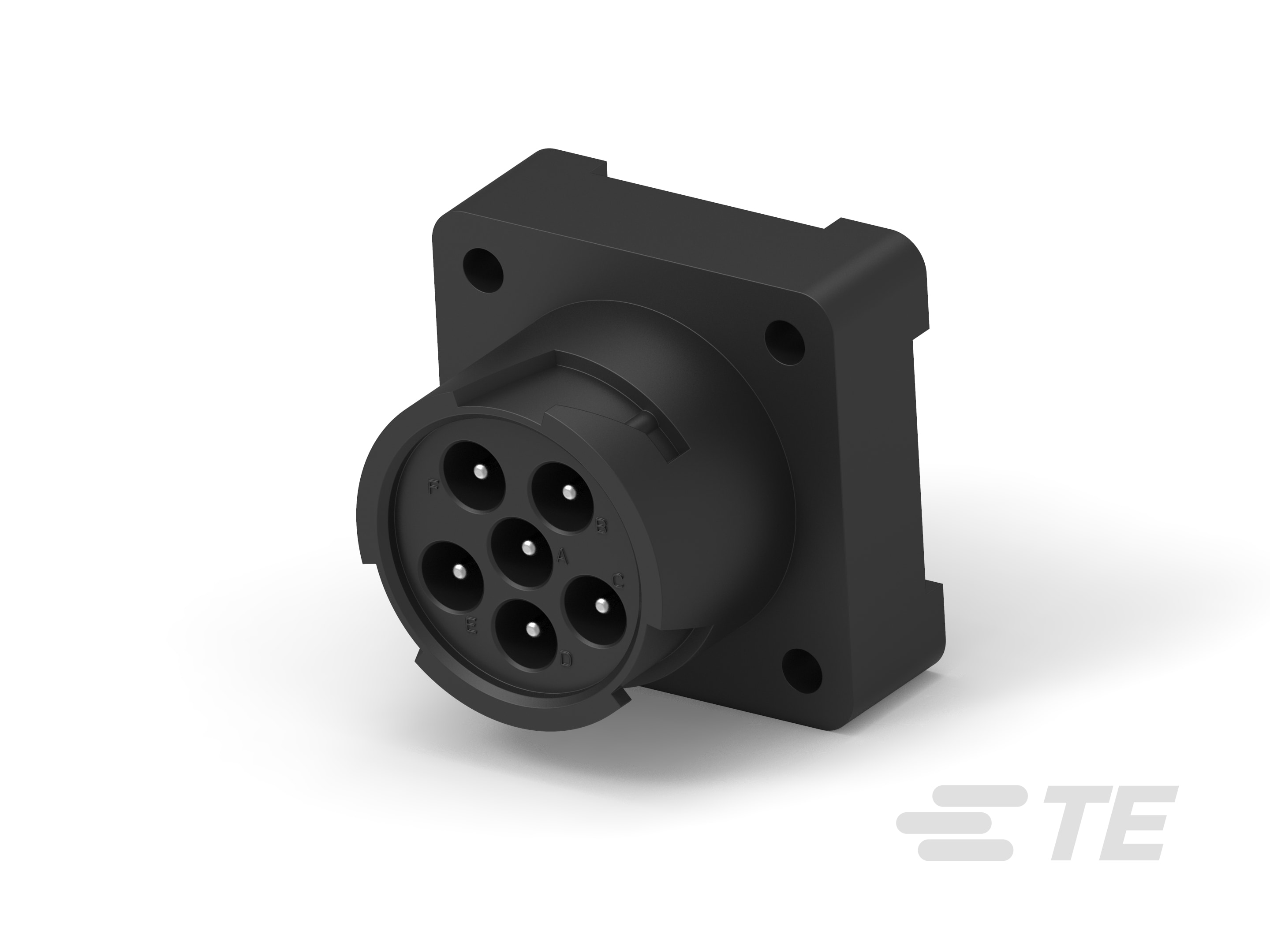

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : Yes

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Number of Sections : 1

• Number of Signal Positions : 6

• PCB Mount Orientation : Vertical

• Number of Positions : 6

• Nominal Voltage Architecture (V): 12, 24

• Voltage Rating (Max) (VDC): 250

• Voltage Rating (Max) (VAC): 250

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Black

• Contact Size : Size 16

• Mating Pin Diameter : 1.6 mm [ .063 in ]

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 13

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Mounting Screw

• Mating Alignment Type : Guide Slot

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : With

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Connector Length : 38.1 mm [ 1.5 in ]

• Profile Height from PCB : 32.1 mm [ 1.26 in ]

• PCB Thickness (Recommended) : .78 – 3.18 mm [ .031 – .125 in ]

• Connector Width : 38.1 mm [ 1.5 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Shielded : No

• Circuit Application : Power

• UL Rating : Recognized

• IP Rating : IP68, IP6K9K

• UL Flammability Rating : UL 94V-0
