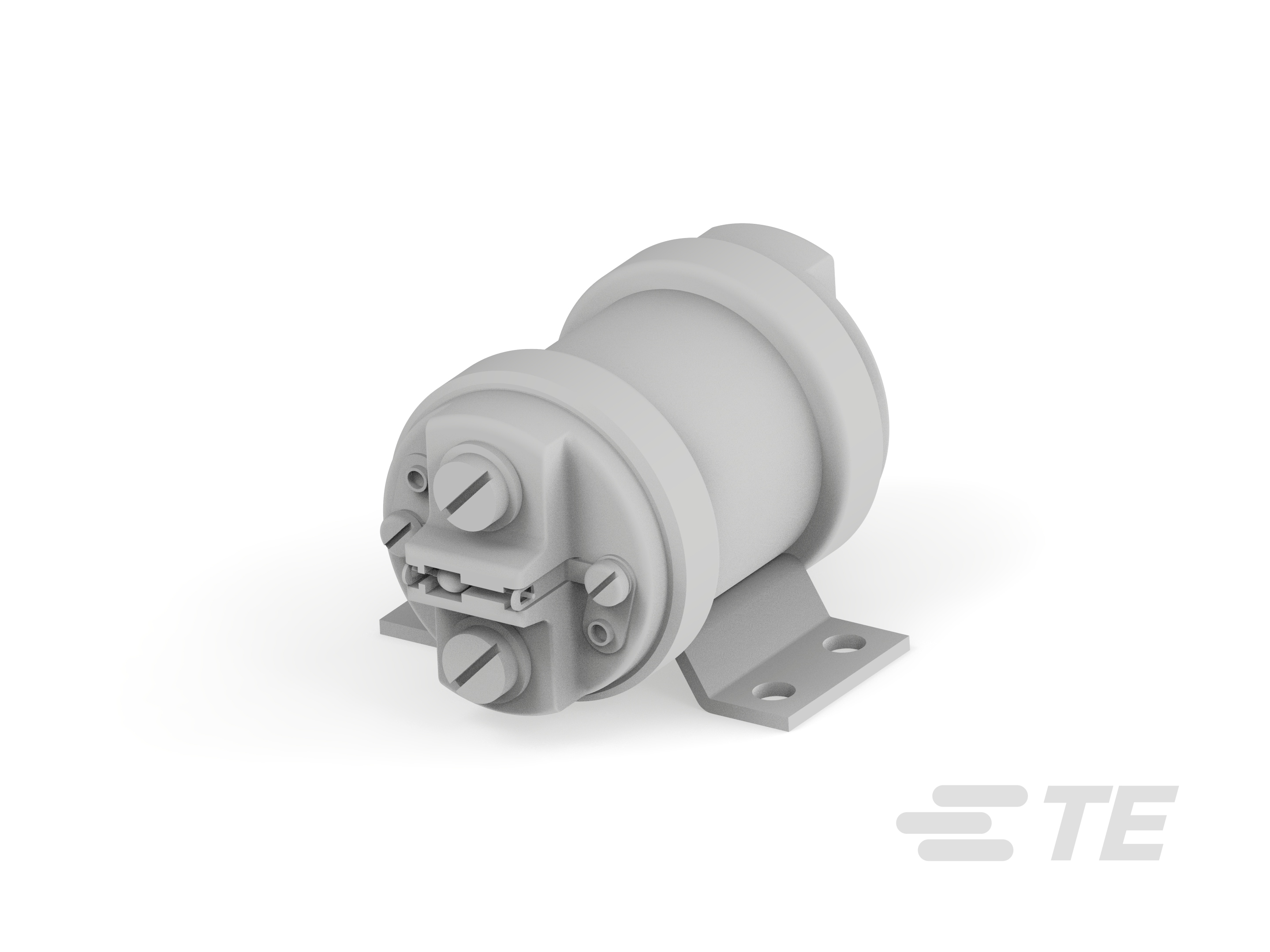

General Purpose Power Relay, DC, Monostable, 1A (NO) + 1B (NC), 50 A Contact Rating, 16 VDC / 9 VDC Coil Voltage, 7 W Coil Power, KISSLING Series 26
26-72-23
General Purpose Power Relay, DC, Monostable, 1A (NO) + 1B (NC), 50 A Contact Rating, 16 VDC / 9 VDC Coil Voltage, 7 W Coil Power, KISSLING Series 26
-
- KISSLING
- KISSLING Series 26
- TE Internal #: K1014838
- TE Internal Description: Relay 26-72-23
-
Relay & Contactor Type : General Purpose Power Relay
-
Current Type : DC
-
Coil Magnetic System : Monostable
-
Contact Arrangement : 1A (NO) + 1B (NC)
-
Contact Current Rating (A): 50
