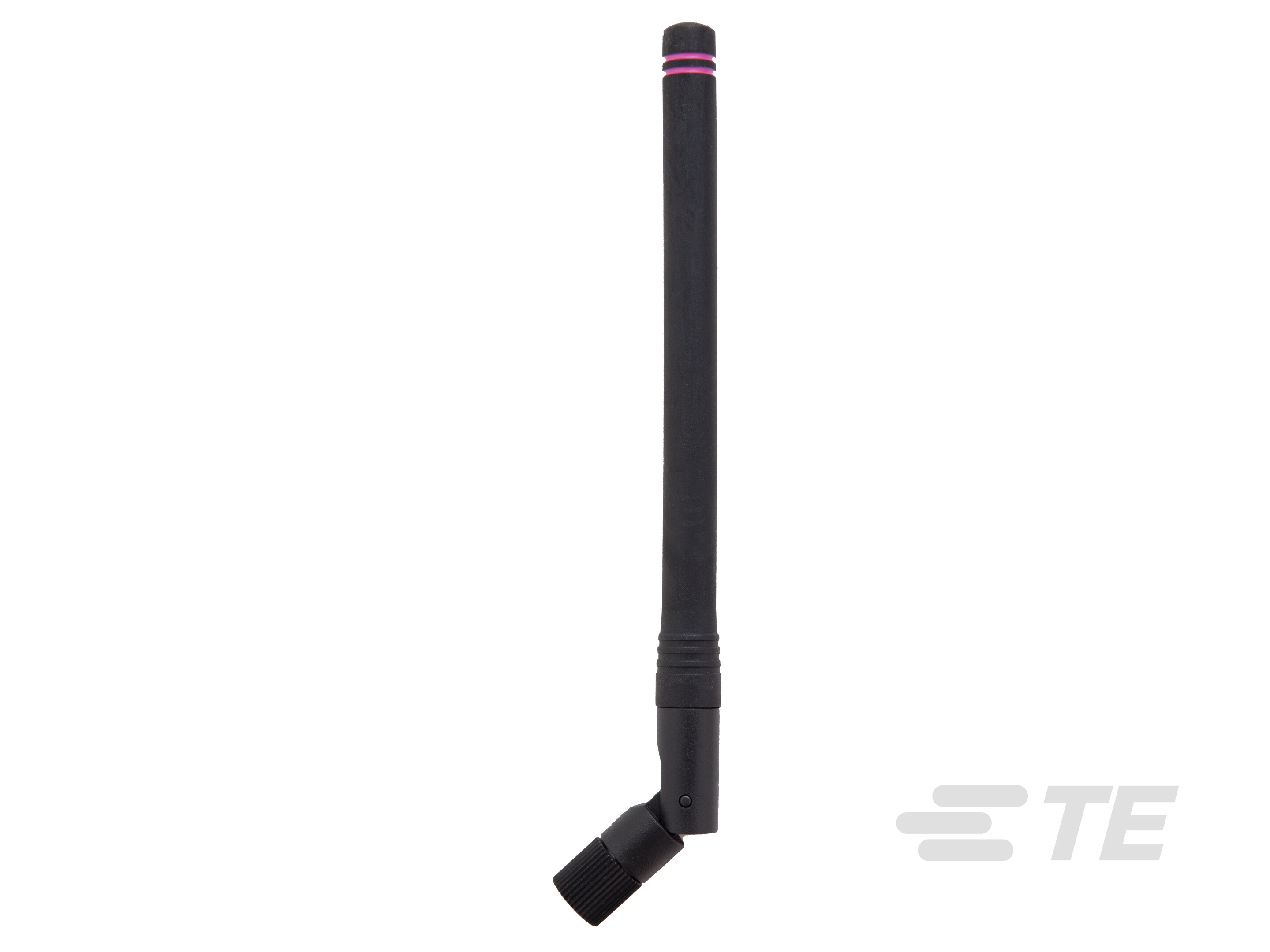

ANT-2.4-CW-HWR-SMA
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi
ANT-2.4-CW-HWR-SMA
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi
- TE Internal #: L9000020-01
- TE Internal Description: Antenna 1/2 Wave Whip Swivel 2.4GHz SMA
-
Mounting Type : Stud/Screw/Lug Mount
-
Antenna Type : Terminal/Duck
-
Port Configuration : Single Port
-
Wireless Application : Bluetooth, Zigbee, ISM
-
Antenna Termination : SMA
Documents
Product Drawings
- TABULATED CW-HWR 90 DEGREE FLEXABLE WHIP ANTENNA ENG_CD_C-ANT-FFF-CW-HWR-CCC_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_L9000020-01_B.pdf 3D
- Customer View Model ENG_CVM_CVM_L9000020-01_B.2d_dxf.zip English
- ENG_CVM_CVM_L9000020-01_B.3d_igs.zip English
- ENG_CVM_CVM_L9000020-01_B.3d_stp.zip English
Datasheets & Catalog Pages
- ANT-2.4-CW-HWR-ccc ENG_DS_L9000020-01_B.pdf English
