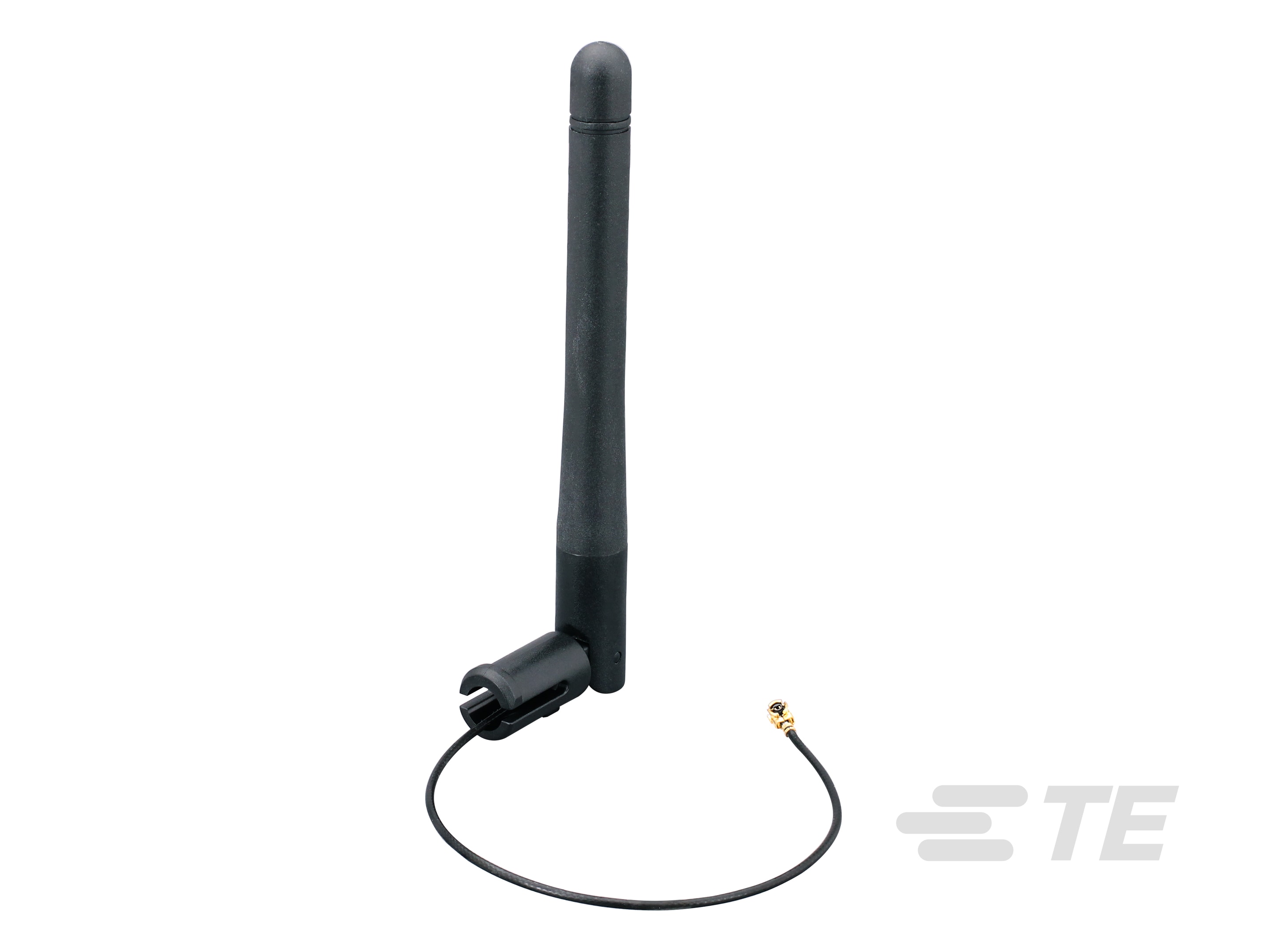

ANT-2.4-LPW-125
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, MHF1 / U.FL / UMCC, Omnidirectional, Single Port
ANT-2.4-LPW-125
Terminal/Duck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, MHF1 / U.FL / UMCC, Omnidirectional, Single Port
- TE Internal #: L9000083-01
- TE Internal Description: Antenna Hinged Pnl Mnt 2.4GHz 125 MF1
-
Mounting Type : Stud/Screw/Lug Mount
-
Antenna Type : Terminal/Duck
-
Port Configuration : Single Port
-
Wireless Application : Zigbee, Bluetooth, ISM
-
Antenna Termination : U.FL, MHF1, UMCC, MHF
Documents
Product Drawings
- Dimensional Drawing PANEL MOUNT DIPOLE ANTENNA 2.4GHZ ENG_CD_C-ANT-2.4-LPW-125_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_L9000083-01_A.pdf 3D
- Customer View Model ENG_CVM_CVM_L9000083-01_A.3d_stp.zip English
- ENG_CVM_CVM_L9000083-01_A.2d_dxf.zip English
- ENG_CVM_CVM_L9000083-01_A.3d_igs.zip English
Datasheets & Catalog Pages
- 2.4 GHz Panel-Mount Dipole Antenna ENG_DS_ant-2_4-lpw-125-ds_A.pdf English
