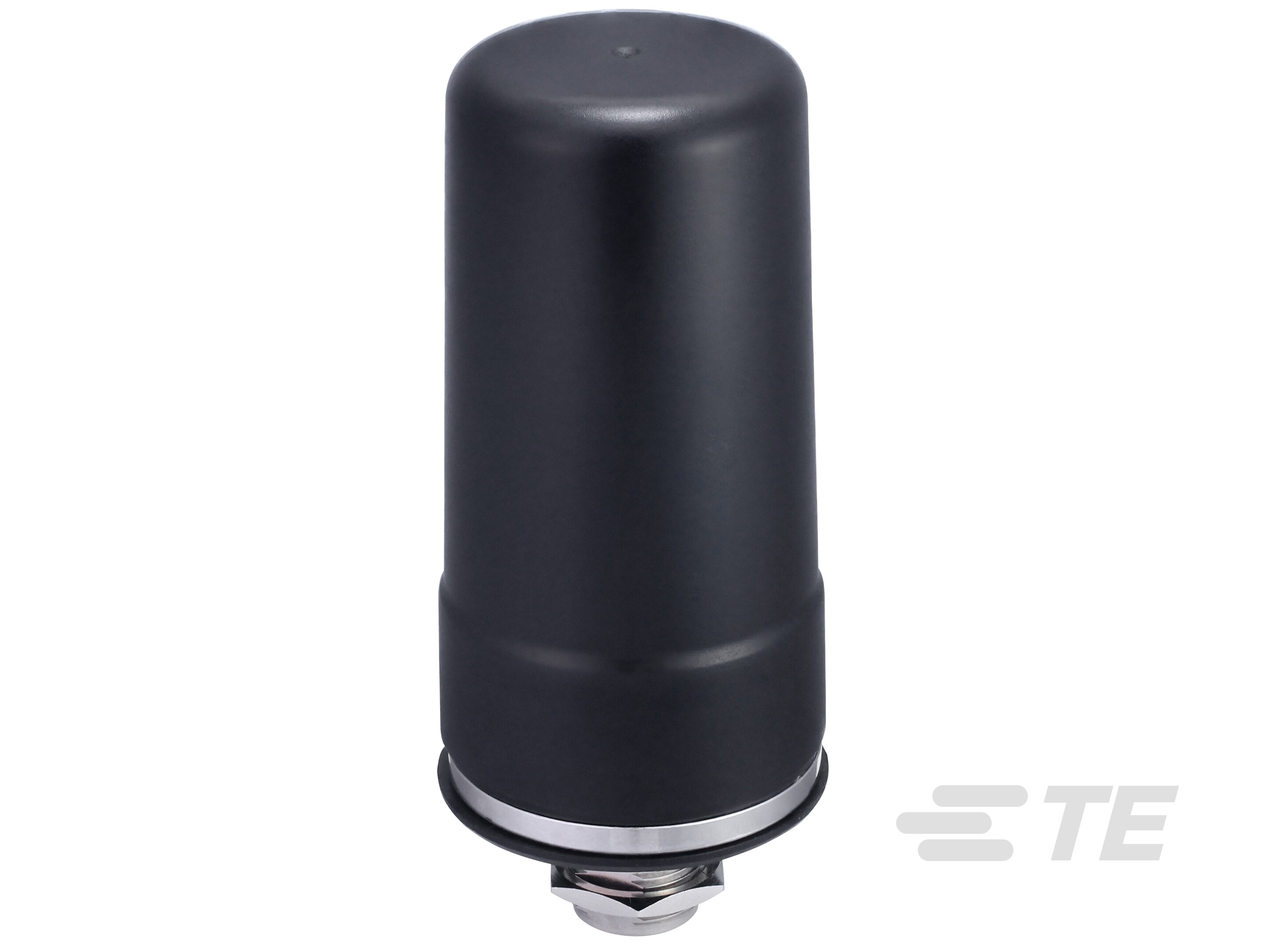

ANT-8/9-SPNF2
Dome/Puck Antenna, Dual Band, ISM / LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, Gain 3 < 6 dBi
ANT-8/9-SPNF2
Dome/Puck Antenna, Dual Band, ISM / LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, Gain 3 < 6 dBi
- TE Internal #: L9000142-01
- TE Internal Description: Antenna 868/915 LPWA Dome IP67 N Jack
-
Antenna Type : Dome/Puck
-
Band Type : Dual Band
-
Primary Application : LoRaWAN, LPWAN, ISM
-
Wireless Application : LoRaWAN, ISM, LPWAN
-
Mounting Location : External
Documents
Product Drawings
- 5G CELLULAR ANT DOME N JACK ENG_CD_C-ANT-8_9-SPNF2_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_L9000142-01_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_L9000142-01_B1.3d_igs.zip English
- ENG_CVM_CVM_L9000142-01_B1.2d_dxf.zip English
- ENG_CVM_CVM_L9000142-01_B1.3d_stp.zip English
Datasheets & Catalog Pages
- Panel Mount 868/915 MHz LPWA Antenna ENG_DS_ant-8_9-spnf2-ds_A.pdf English
