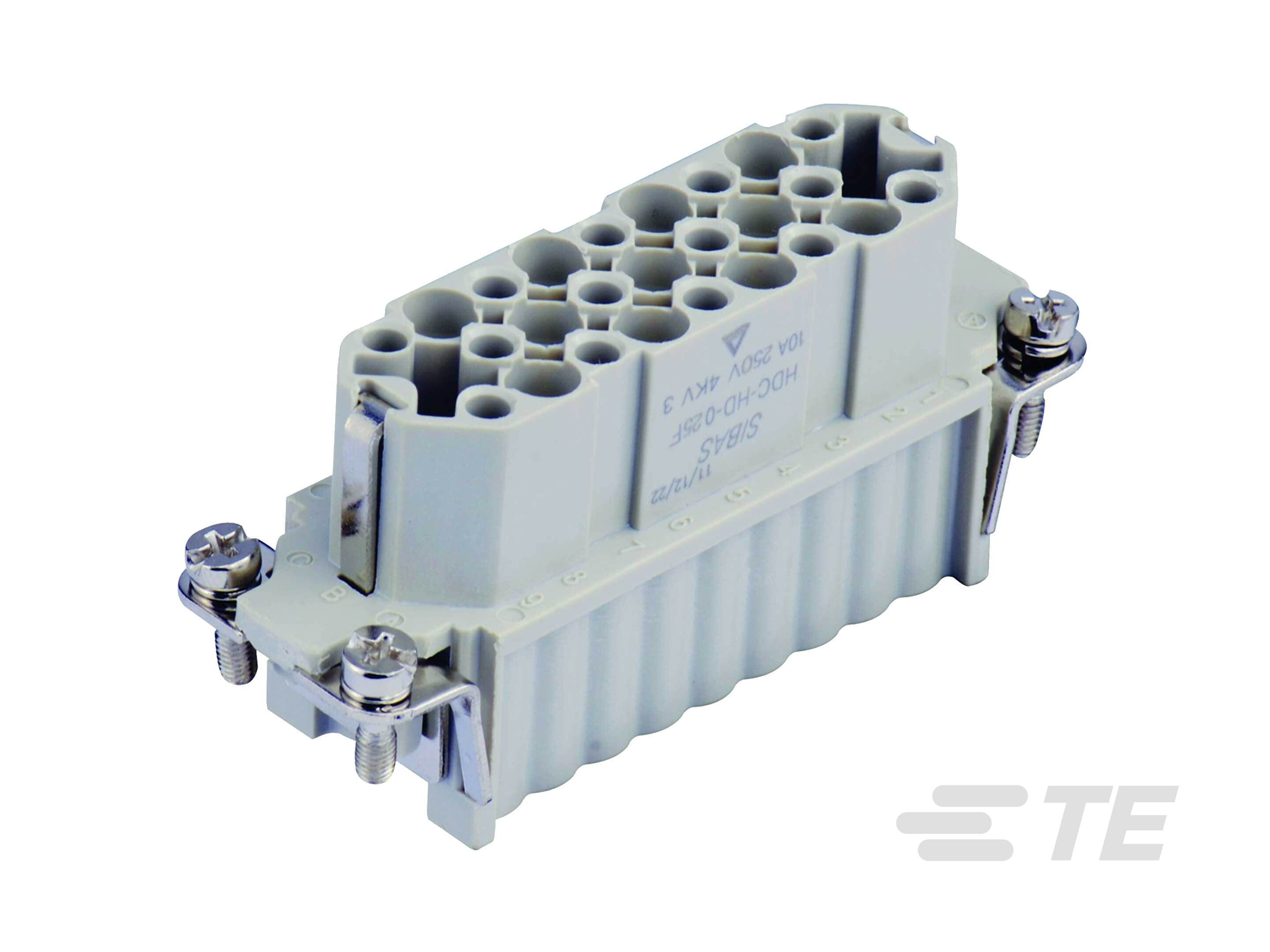

Insert for Contacts, Socket, 25+PE Pole Configuration, Crimp Terminal, 25 Position, 26 – 14 AWG Wire Size, 10 A, HDC HD, Rectangular Contact Inserts
T2020252201-000
Insert for Contacts, Socket, 25+PE Pole Configuration, Crimp Terminal, 25 Position, 26 – 14 AWG Wire Size, 10 A, HDC HD, Rectangular Contact Inserts
-
- HDC
- HDC HD
- TE Internal #: T2020252201-000
- TE Internal Description: HD-025-F
-
Rectangular Connector Insert Type : Insert for Contacts
-
Contact Type : Socket
-
Pole Configuration : 25+PE
-
Termination Method to Wire & Cable : Crimp Terminal
-
Number of Positions : 25
