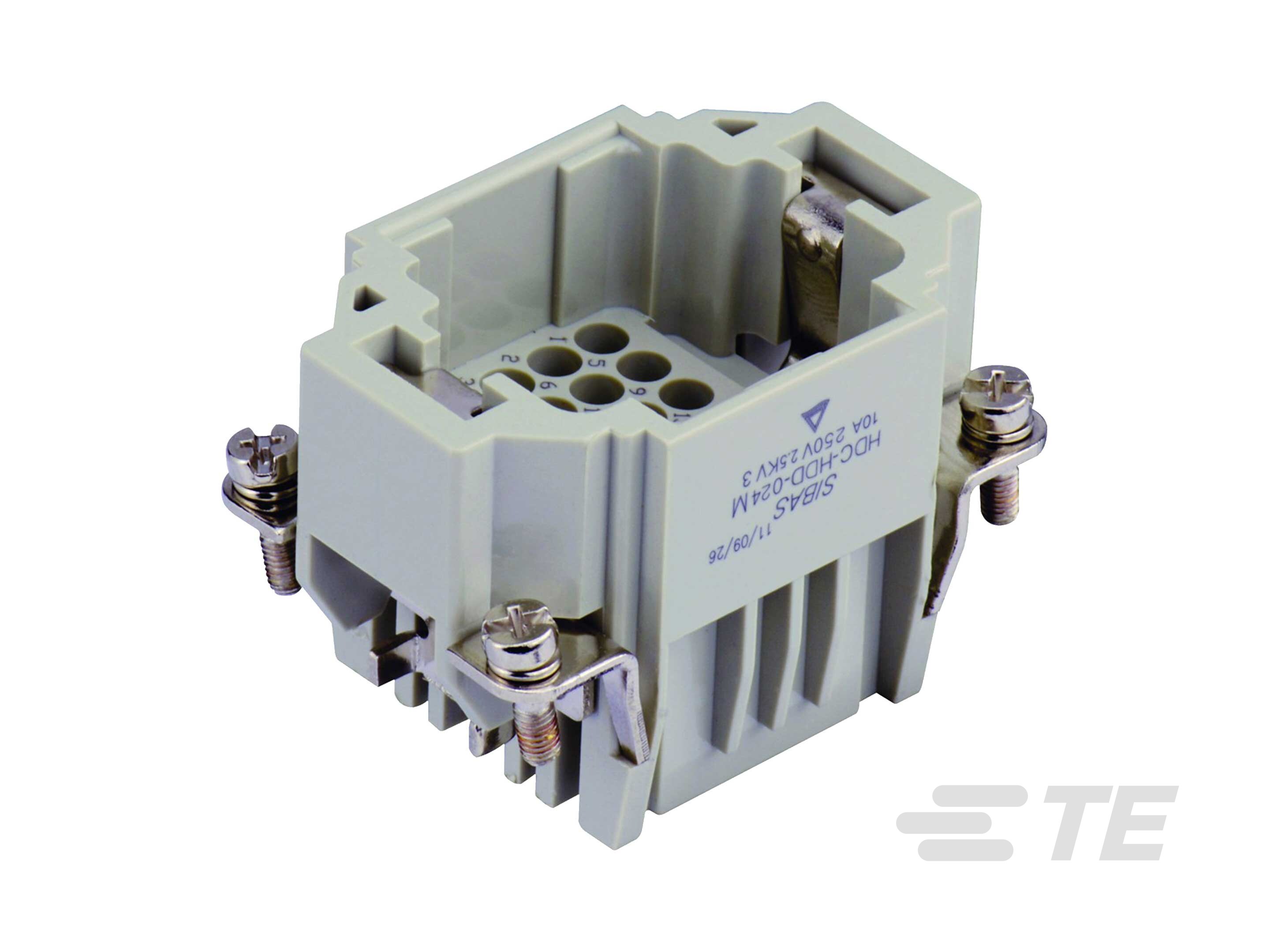

Insert for Contacts, Pin, 24+PE Pole Configuration, Crimp Terminal, 24 Position, 26 – 14 AWG Wire Size, 10 A, HDC HDD, Rectangular Contact Inserts
T2030242101-000
Insert for Contacts, Pin, 24+PE Pole Configuration, Crimp Terminal, 24 Position, 26 – 14 AWG Wire Size, 10 A, HDC HDD, Rectangular Contact Inserts
-
- HDC
- HDC HDD
- TE Internal #: T2030242101-000
- TE Internal Description: HDD-024-M
-
Rectangular Connector Insert Type : Insert for Contacts
-
Contact Type : Pin
-
Pole Configuration : 24+PE
-
Termination Method to Wire & Cable : Crimp Terminal
-
Number of Positions : 24
