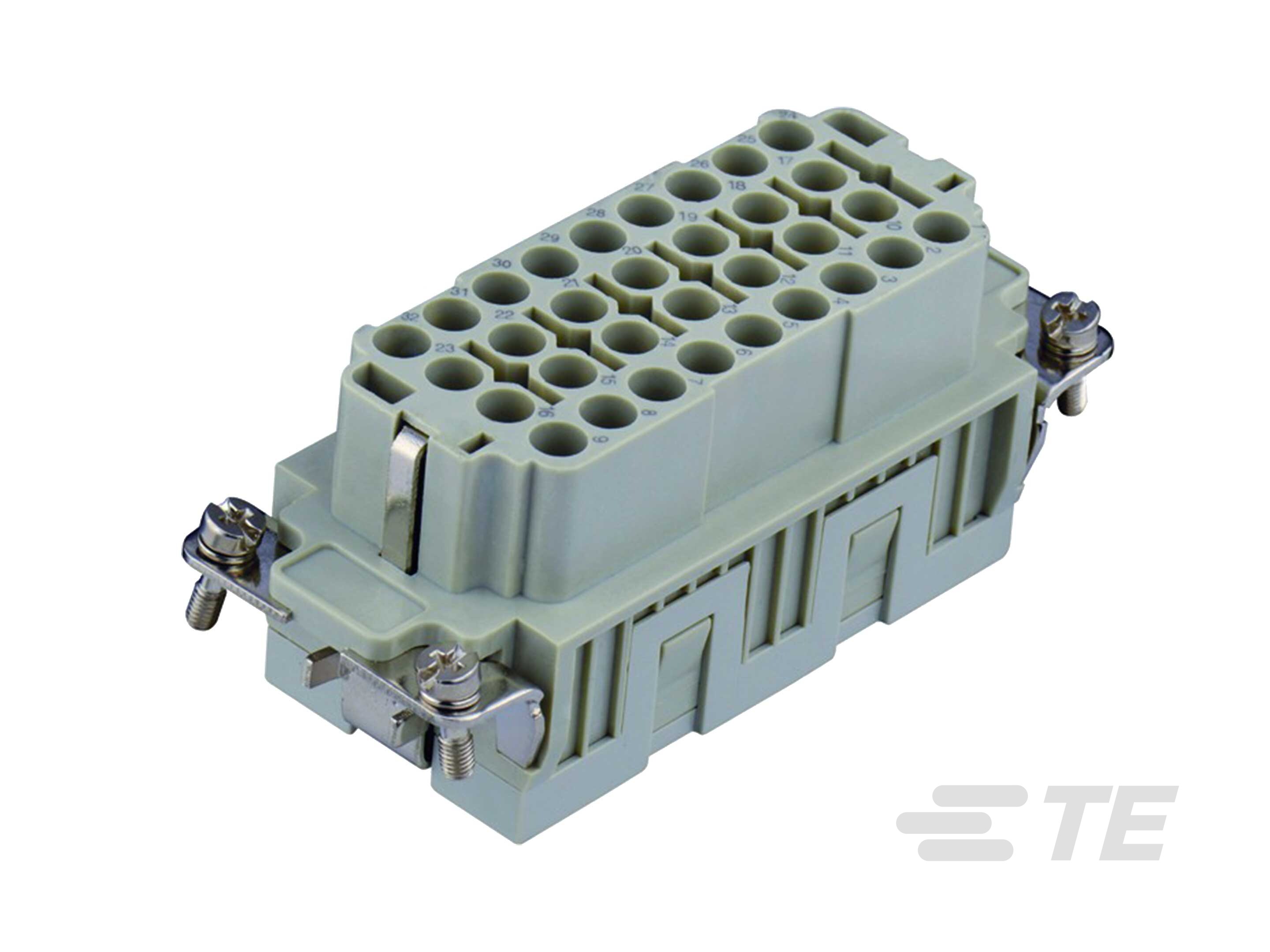

Insert for Contacts, Socket, 32 Pole Configuration, Crimp Terminal, 26 – 12 AWG, .14 – 4 mm² Wire, 16 A, Power & Signal
T2050322201-007
Insert for Contacts, Socket, 32 Pole Configuration, Crimp Terminal, 26 – 12 AWG, .14 – 4 mm² Wire, 16 A, Power & Signal
-
- HDC
- TE Internal #: T2050322201-007
- TE Internal Description: HEE-032-F
- All HDC HEE Insert Series, Rail Compliant (12)
-
Rectangular Connector Insert Type : Insert for Contacts
-
Contact Type : Socket
-
Pole Configuration : 32
-
Termination Method to Wire & Cable : Crimp Terminal
-
Number of Positions : 32
Documents
Product Drawings
- HEE-032-F ENG_CD_T2050322201007_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T2050322201-007_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T2050322201-007_A.2d_dxf.zip English
- ENG_CVM_CVM_T2050322201-007_A.3d_igs.zip English
- ENG_CVM_CVM_T2050322201-007_A.3d_stp.zip English
Datasheets & Catalog Pages
- EN45545 COMPLIANT HDC INSERTS ENG_DS_1-1773952-4_EN45545_Compliant_HDC_Insert_518.pdf English
Product Specifications
- Application Specification ENG_SS_114-106137_A2.pdf English
- Product Specification CHI_SS_108-106137_CHI_C.pdf
- ENG_SS_108-106137_C.pdf English
- Qualification Test Report ENG_SS_501-106137-7_A.pdf English
