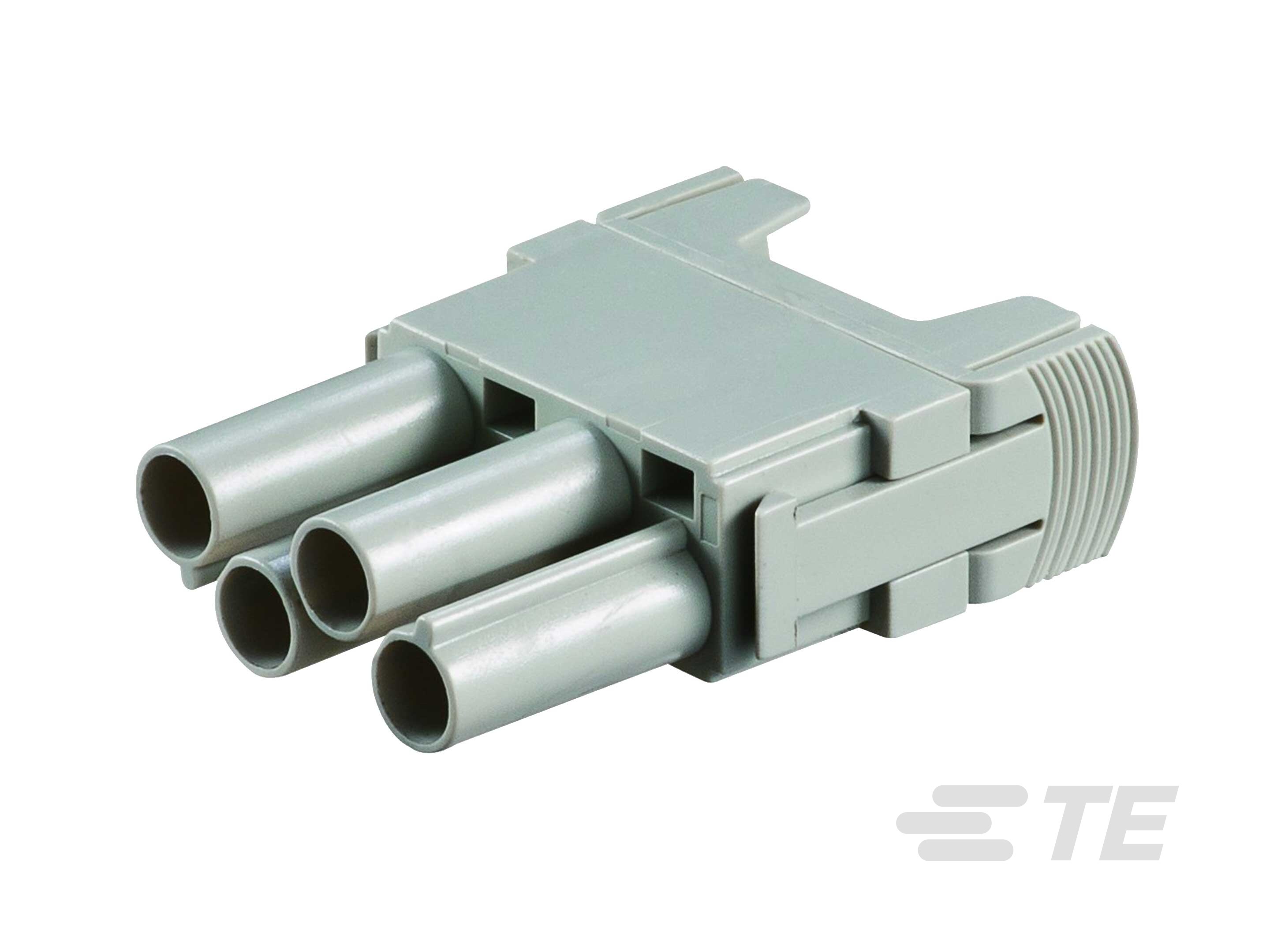

Insert for Contacts, Socket, 4 Pole Configuration, Crimp Terminal, 15 – 10 AWG, 40 A, Power & Signal, HDC HMN
T2111042201-000
Insert for Contacts, Socket, 4 Pole Configuration, Crimp Terminal, 15 – 10 AWG, 40 A, Power & Signal, HDC HMN
-
- HDC
- HDC HMN
- TE Internal #: T2111042201-000
- TE Internal Description: HMN-004-F
- All HDC HMN Modular System, Rail Compliant (111)
-
Rectangular Connector Insert Type : Insert for Contacts
-
Contact Type : Socket
-
Pole Configuration : 4
-
Termination Method to Wire & Cable : Crimp Terminal
-
Number of Positions : 4
Documents
Product Drawings
- HMN-004-F ENG_CD_T2111042201000_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T2111042201-000_B.pdf 3D
- Customer View Model ENG_CVM_CVM_T2111042201-000_B.2d_dxf.zip English
- ENG_CVM_CVM_T2111042201-000_B.3d_igs.zip English
- ENG_CVM_CVM_T2111042201-000_B.3d_stp.zip English
Datasheets & Catalog Pages
- Heavy Duty Connectors ENG_CS_1-1773869-8_HDC_Catalog_0517.pdf English
- ENG_CS_1-1773869-8_2501.pdf English
- JPN_CS_1-1773869-8_2501.pdf Japanese
Product Specifications
- Application Specification ENG_SS_114-137060_A4.pdf English
- Product Specification ENG_SS_108-137060_C1.pdf English
- Qualification Test Report ENG_SS_501-137060_B1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E28476_20151030_C1_8.pdf English
