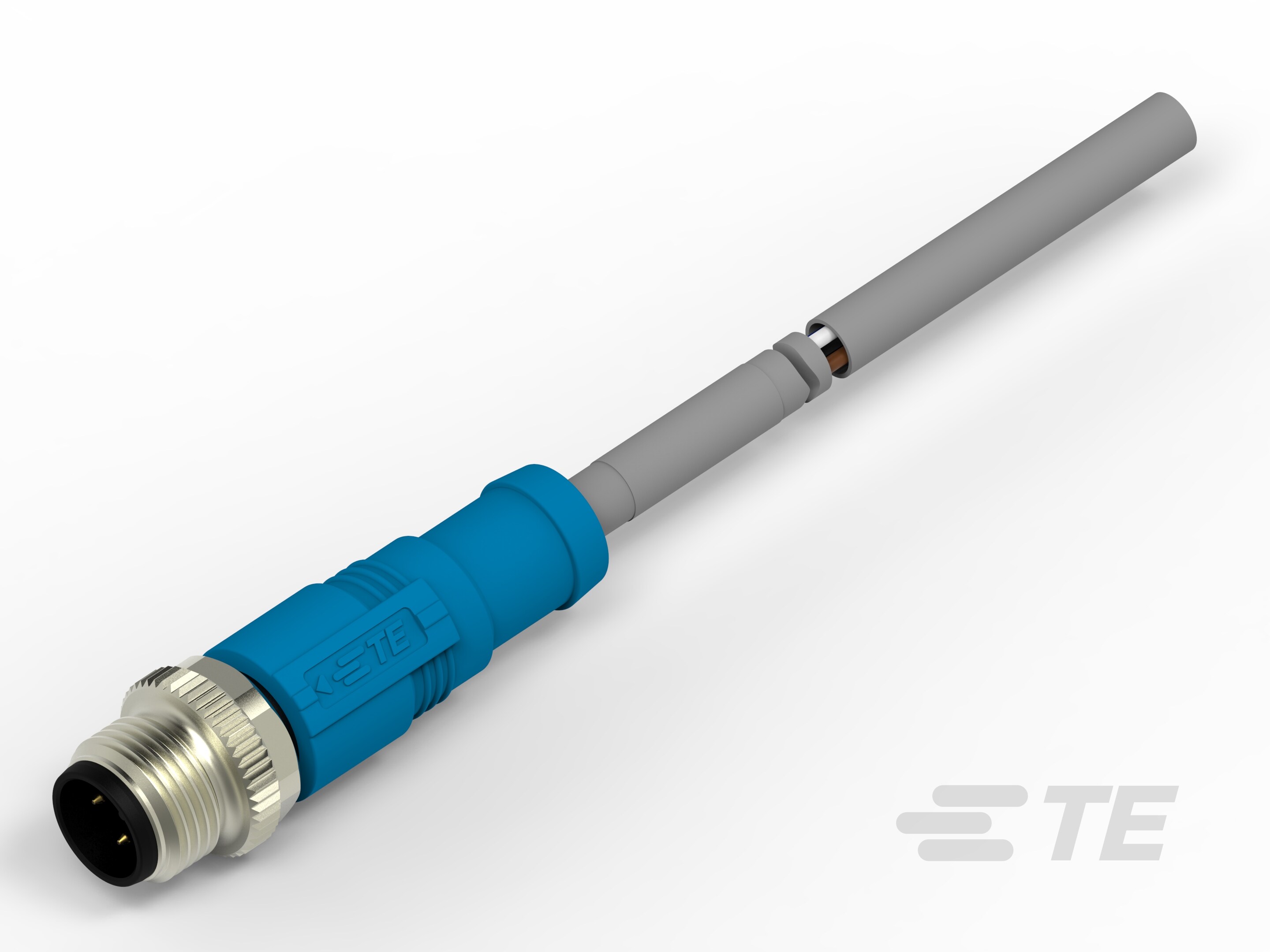

M12 Pigtail Cable Assembly, 4 Position, .5 m, Sensor/Actuator, A Code, M12 Plug End A, Single Ended, GF Nylon
T4151120004-001
M12 Pigtail Cable Assembly, 4 Position, .5 m, Sensor/Actuator, A Code, M12 Plug End A, Single Ended, GF Nylon
- TE Internal #: T4151120004-001
- TE Internal Description: RPC-M12-MS-4CON-PUR-0.5
- All M12 A-Code Male Straight Single Ended Cable (139)
-
Cable Assembly Type : M12 Pigtail
-
Number of Positions : 4
-
Cable Assembly Length (m): .5
-
M8/M12 Application Type : Sensor/Actuator
-
Connector & Keying Code : A
Documents
Product Drawings
- M12X1 STRAIGHT PLUG, FREE END A-CODE, UNSHIELDED, ENG_CD_T41511X00XX00X_B1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T4151120004-001_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T4151120004-001_A.2d_dxf.zip English
- ENG_CVM_CVM_T4151120004-001_A.3d_igs.zip English
- ENG_CVM_CVM_T4151120004-001_A.3d_stp.zip English
Datasheets & Catalog Pages
- M8 / M12 Connector System Catalog ENG_CS_1-1773701-8_M8M12_CONNECTOR_SYSTEM_2402.pdf English
- M8/M12 Cable Assemblies Brochure ENG_DS_3-1773983-2_2101.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_SS_108-106140_A8.pdf English
- Qualification Test Report ENG_SS_501-106140-1_A1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E193908_20170714_C1_2.pdf English
