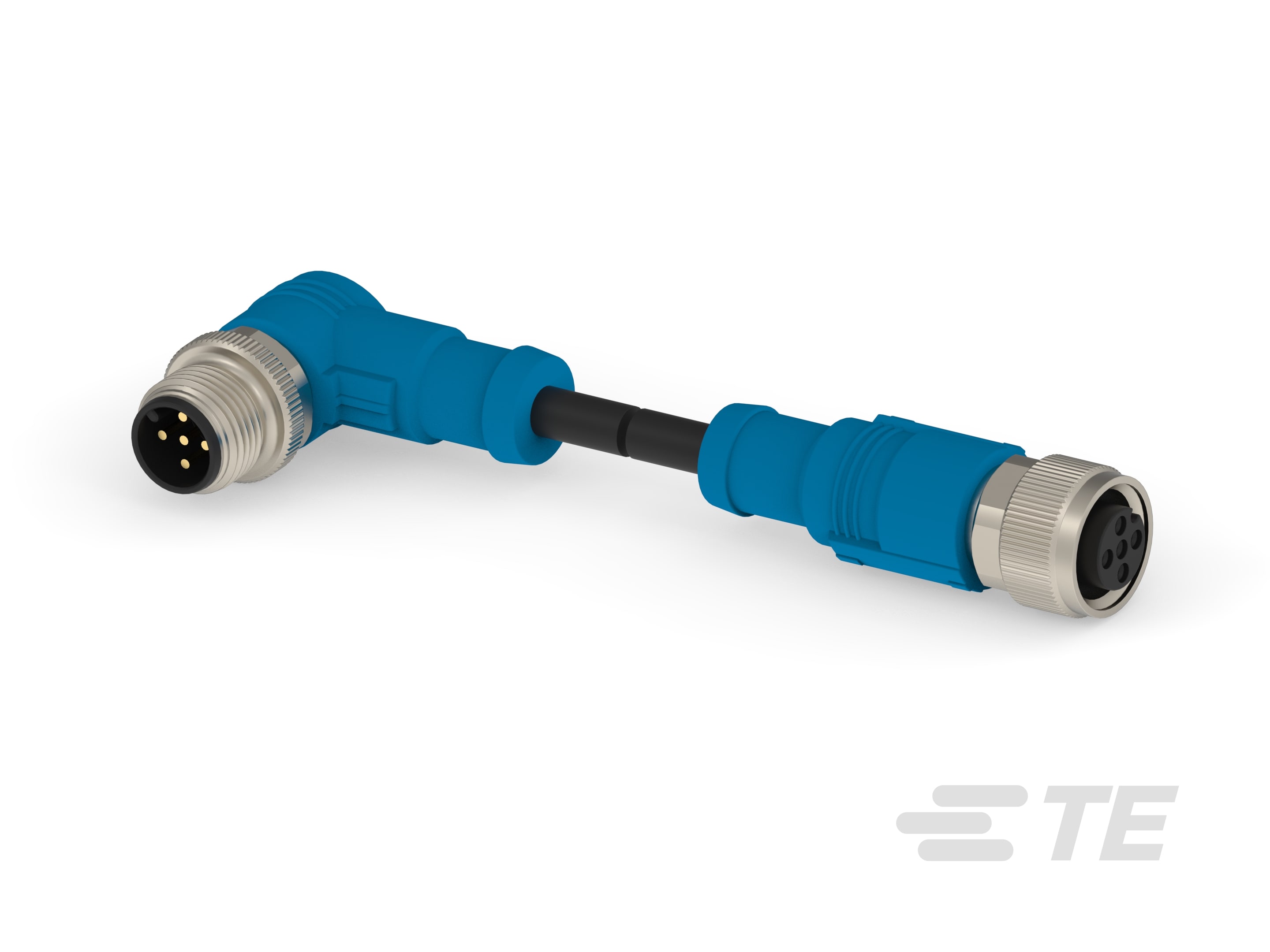

M12 Cable Assembly, 5 Position, .5 m, Sensor/Actuator, Code A, M12 Plug End A, M12 Plug End B, Shielded, Double Ended, GF Nylon
T4162213005-001
M12 Cable Assembly, 5 Position, .5 m, Sensor/Actuator, Code A, M12 Plug End A, M12 Plug End B, Shielded, Double Ended, GF Nylon
- TE Internal #: T4162213005-001
- TE Internal Description: RPC-M12-5MR-0.5SH-M12-5FS-PVC
- All M12 A-Code MR-FS Double Ended Cable (140)
-
Cable Assembly Type : M12
-
Number of Positions : 5
-
Cable Assembly Length (m): .5
-
M8/M12 Application Type : Sensor/Actuator
-
Connector & Keying Code : A
Documents
Product Drawings
- M12X1 MALE TO FEMALE,XP A-CODE,SHIELDED ENG_CD_T4162XXX0XX00X_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T4162213005-001_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T4162213005-001_A.2d_dxf.zip English
- ENG_CVM_CVM_T4162213005-001_A.3d_igs.zip English
- ENG_CVM_CVM_T4162213005-001_A.3d_stp.zip English
Datasheets & Catalog Pages
- M8/M12 Cable Assemblies Brochure ENG_DS_3-1773983-2_2101.pdf English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_SS_108-106140_A8.pdf English
- Qualification Test Report ENG_SS_501-106140-1_A1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E193908_20170714_C1_2.pdf English
