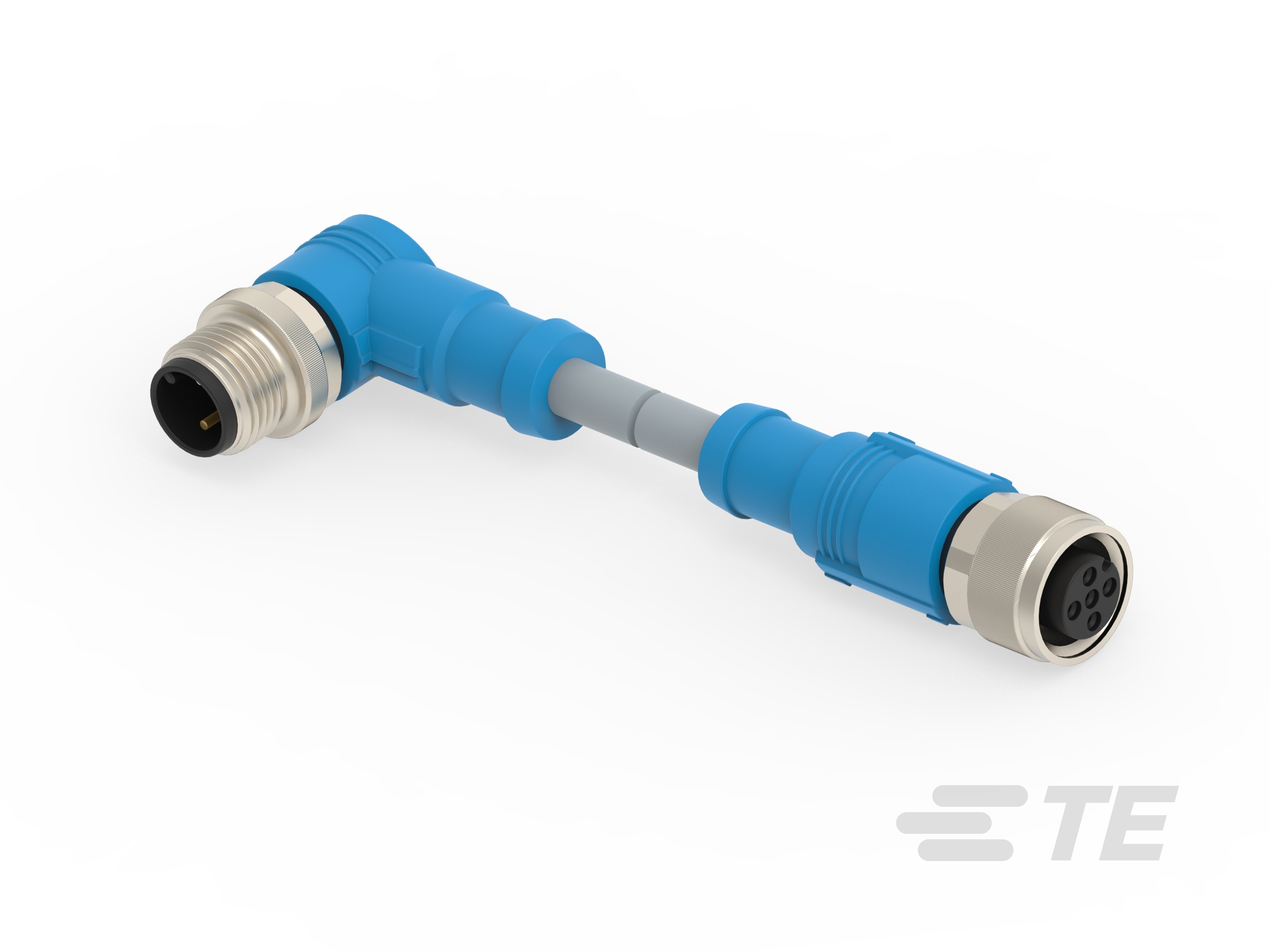

M12 Cable Assembly, 3 Position, 1.5 m, Sensor/Actuator, Code A, M12 Plug, M12 Socket, Shielded, Double Ended, GF Nylon
T4162223003-003
M12 Cable Assembly, 3 Position, 1.5 m, Sensor/Actuator, Code A, M12 Plug, M12 Socket, Shielded, Double Ended, GF Nylon
- TE Internal #: T4162223003-003
- TE Internal Description: RPC-M12-3MR-1.5SH-M12-3FS-PUR
- All M12 A-Code MR-FS Double Ended Cable (140)
-
Wire Size (AWG): 22
-
Cable Assembly Configuration : Double Ended
-
Jacket Material : PUR
-
Housing Material : GF Nylon
-
Number of Positions : 3
Documents
Product Drawings
- M12X1 MALE TO FEMALE,XP A-CODE,SHIELDED ENG_CD_T4162XXX0XX00X_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_T4162223003-003_A.pdf 3D
- Customer View Model ENG_CVM_CVM_T4162223003-003_A.2d_dxf.zip English
- ENG_CVM_CVM_T4162223003-003_A.3d_igs.zip English
- ENG_CVM_CVM_T4162223003-003_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-137144_A11.pdf English
- Product Specification ENG_ _108-106140_A7.pdf English
- Qualification Test Report ENG_SS_501-106140-1_A1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERT_E193908_20170714_C1_2.pdf English
