Quality and Flexibility with Every Press

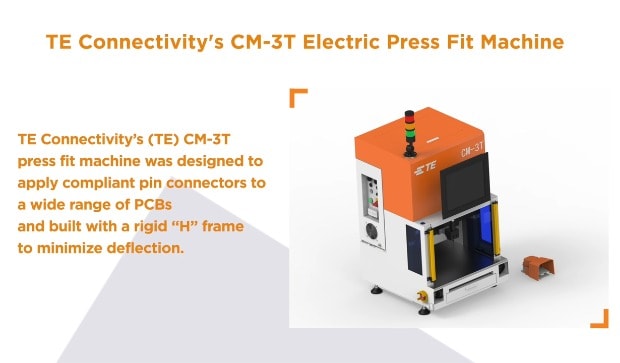

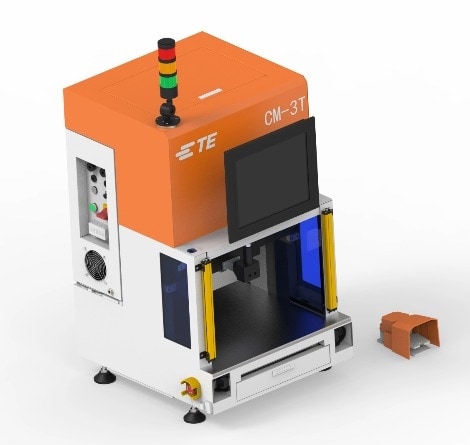

Our CM-3T press fit machine was designed to apply compliant pin connectors to a wide range of PCBs and built with a rigid “H” frame to minimize deflection. It is fully capable of handling demanding applications for flexible various small and medium-sized PCB.
Watch this video to familiarize yourself with our new CM-3T electric press fit machine and the operational steps.
Features and Benefits
Optimized High-Performance Tool
- Operating system - windows 10 may be more user friendly and IPC-base shorten lead time
- Software under friendly while closely monitoring force, distance, and speed
- Built with a rigid “H” frame to minimize deflection
- Touch screen monitor for enhanced machine operation
- Optional bar code scanner, which provides fast PCB serial number entry
Quality and Control Management
- Manually adjust the press head and/or the PCB between connector press
cycles - Air table that assists the operator when positioning product under the
press head - Laser Pointing option for advanced version to better guide operator pressing area
- PCB capacity of the CM-3T press is 460*610 mm
- The SPC feature within the CM’s included software provides a press log and in addition, allows press force plotting for every connector
Customizable
- Customizations available to meet your production requirements
- Wide range of insertion heads for TE & non-TE terminals
Support
- Our machines are supported by an established, experienced and responsive field service organization
- Field engineers are located worldwide and are available to assist with on-site and remote service; selection and installation of new equipment; training; and technical support
Industries and Applications
Industries
- Data Communications
Applications
- Data Centers
- Servers
- Switching & Routing
- Storage
- Machine Learning and Inference Systems
- High Speed IO
