HHM Hybrid Harness Maker

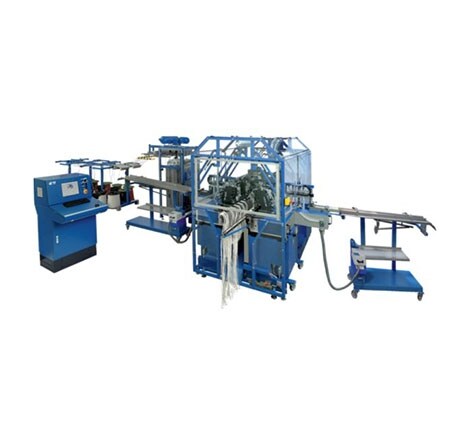

The HHM Hybrid Harness Maker Machine is a fully automatic wire terminating machine designed for medium to large volume production and all possible harness layouts, including jumpers, crossovers and bridges. By adding the optionally available leadmaking module the HHM offers ultimate flexibility for IDC, IDC, or IDC – Crimp harnesses.
Features
Base Machine
- Wire feeding system – mass feeding of 8 wires into 4 wire combs. 2 different wire sizes and up to 10 different wire colors are possible
- Wire storage for up to 40 wire barrels
- Fully-automatic adjustment of all wire feeding parameters
- Wire cutting
- Software with multiple language selection
- PC with user-friendly machine interface provides for intuitive system controls, harness programming, configuration and machine optimization
- Remote access by internet connection
- Alignment of wires in wire combs and wire zero cutting prior to mass termination
- Safety device fulfilling CE regulation
- Servo controlled axis for wire transport
Features
IDC Modules
- Connector feeding, separating, latch cutting and positioning
- Coding cutting
- Mass termination
- Cover closing
- Out-feed
Options
Depending on type of IDC Module
- Electrical continuity check IDC – IDC
- Wire insertion length check
- Keying check
Features
Lead Making Module
- Wire feeding for up to 6 wires
- Up to 3 crimp units for applicators (e.g. TE OCEAN applicators)
- Crimp force analyzer for detection of missing strands
Applications

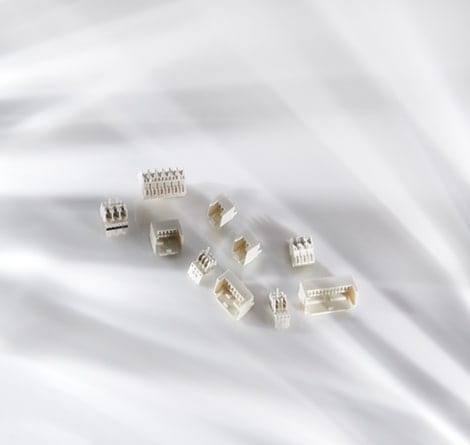

IDC Connectors
- AMP DUOPLUG 2.5
- AMP DUOPLUG 2.5 Mark II
- AMP DUOPLUG Power
- AMP MONO-SHAPE
- AMP multifitting Mark II
