1000V High Voltage signal realibility with ERNI VolTron 1000 Connectors

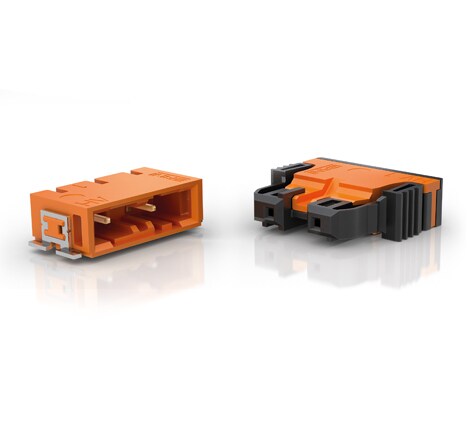

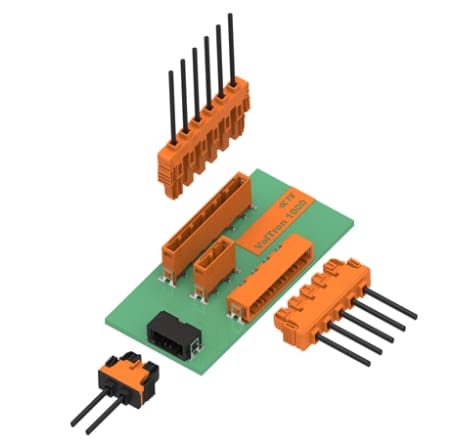

ERNI VolTron 1000V high voltage sensing connector is specifically designed for use in the Battery Management System (BMS) and Battery Disconnect Units (BDU) to measure voltage across the battery architecture and ecosystem. The connector has multiple design features and combines high CTI materials and contact surfaces to help maximize creep and clearance. This results in high-performance value up to 1000V, strong dielectric strength, and capability to use above 5000M sea level, with pollution degree 2 according to IEC 60664-1. The connector complies with LV214, LV215, and USCAR automotive standards.
Technical Features
- Up to 1000V signal measurement capability
- Miniaturization grade with a low profile
- CTI 600 materials and Au terminal contact surface
- 5000M altitude compensation
Applications
- Battery Management System (BMS); Battery Disconnect Units (BDU).
- Integrated power electronics.
- In a broad range of applications, high voltage needs to be measured on a constant basis.
