Enhanced Connector Protection
Our new and improved AMPSEAL 16 backshells provide strain relief, environmental protection, and deliver enhanced aesthetics for AMPSEAL 16 connectors. These backshells are available in 180° and 90° versions for all AMPSEAL 16 plug and cap arrangements (2, 3, 4, 6, 8, and 12). The two-piece 180° version channels the wires directly out of the back of the connector. Our four-piece 90° version features an innovative elbow that allows for 360° rotation, enabling the wires to be routed in various angles. These backshells are available with either a smooth wire exit or a corrugated tubing style exit.
Product Features:
Specs for AMPSEAL 16 backshells
- 180˚ and 90˚ wire exit options
- 360˚ rotation for 90˚ wire outlets
- Multiple latch points for robust assembly
- Smooth wire or several corrugated tubing size options available
- Backshell components kitted for single part number ordering
- Flammability rating of UL94 V-0
- Temperatures between -40°C and 125°

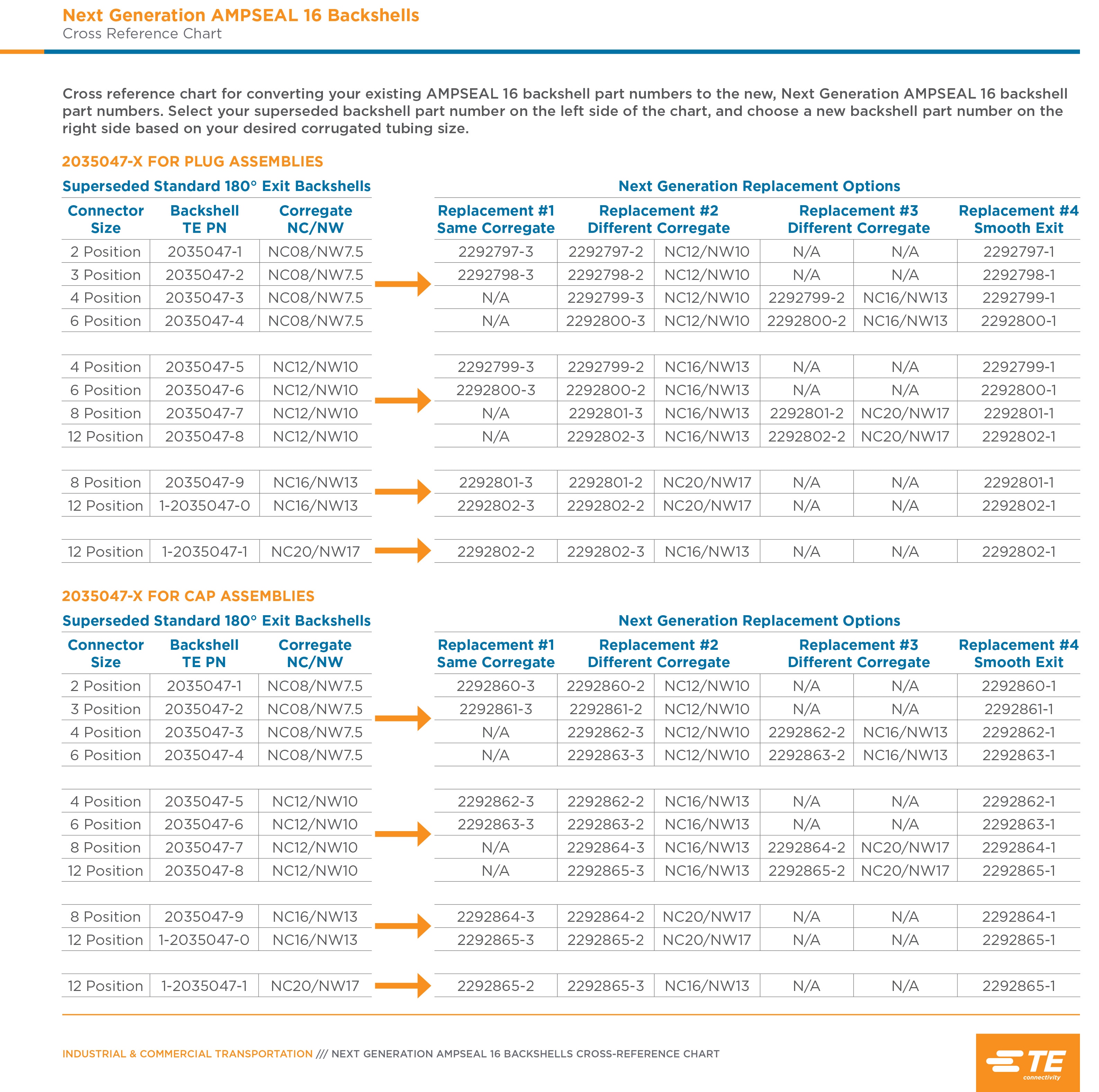

Cross Reference Chart
-
AMPSEAL 16 Backshell Cross Reference (English)
Cross reference chart for converting existing AMPSEAL 16 backshell part numbers to the new, Next Generation AMPSEAL 16 backshell part numbers.
- AMPSEAL 16 Backshell Cross Reference (German)
- AMPSEAL 16 Backshell Cross Reference (Chinese)
- AMPSEAL 16 Backshell Cross Reference (Japanese)
