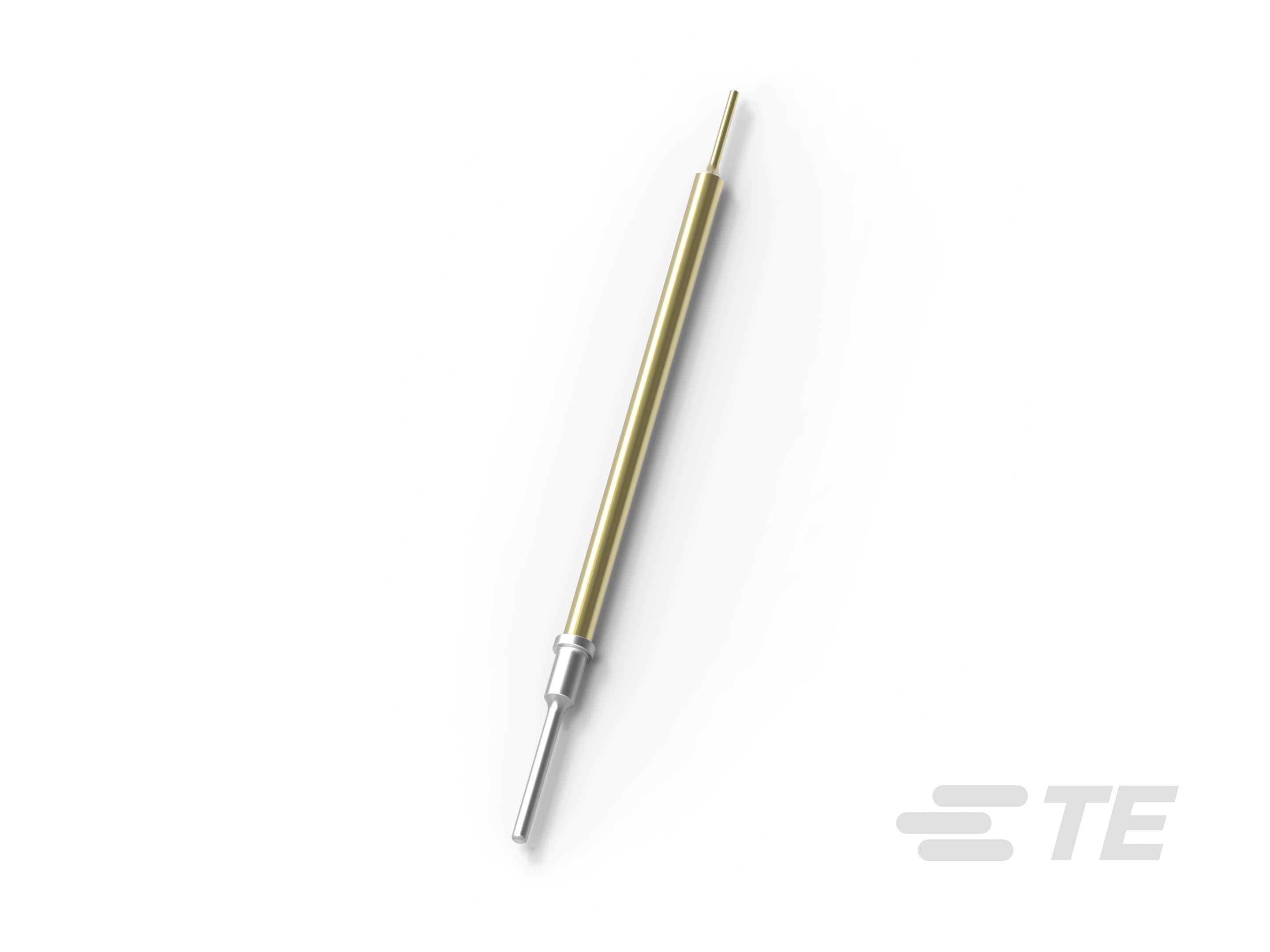

0460-208-2090
Pin, Pin Diameter 1 mm [.04 in], Tin (Sn) Interface Plating, -55 – 125 °C [-67 – 257 °F], DEUTSCH Common Contact, Automotive Terminals
0460-208-2090
Pin, Pin Diameter 1 mm [.04 in], Tin (Sn) Interface Plating, -55 – 125 °C [-67 – 257 °F], DEUTSCH Common Contact, Automotive Terminals
-
- DEUTSCH
- DEUTSCH Common Contact
- TE Internal #: 0460-208-2090
- TE Internal Description: PIN, SOLID, SIZE 20, EXTENDED PCB, SN
- Alias #: ZPF000000000131883 0460-208-20309
- All DEUTSCH Solid Contacts (46)
-
Packaging Method : Crate
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Interface Plating : Tin (Sn)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_0460-208-2090_C_c-0460-208-2090-c-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_0460-208-2090_C_c-0460-208-2090-c.2d_dxf.zip English
- ENG_CVM_CVM_0460-208-2090_C_c-0460-208-2090-c.3d_igs.zip English
- ENG_CVM_CVM_0460-208-2090_C_c-0460-208-2090-c.3d_stp.zip English
Datasheets & Catalog Pages
- DEUTSCH HD30 & HDP20 CONNECTOR SERIES ENG_CS_8-1773982-0_A.pdf English
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151004_E1.pdf English
- Product Specification ENG_SS_108-151004_E.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-151078_B.pdf English
