0460-256-12233

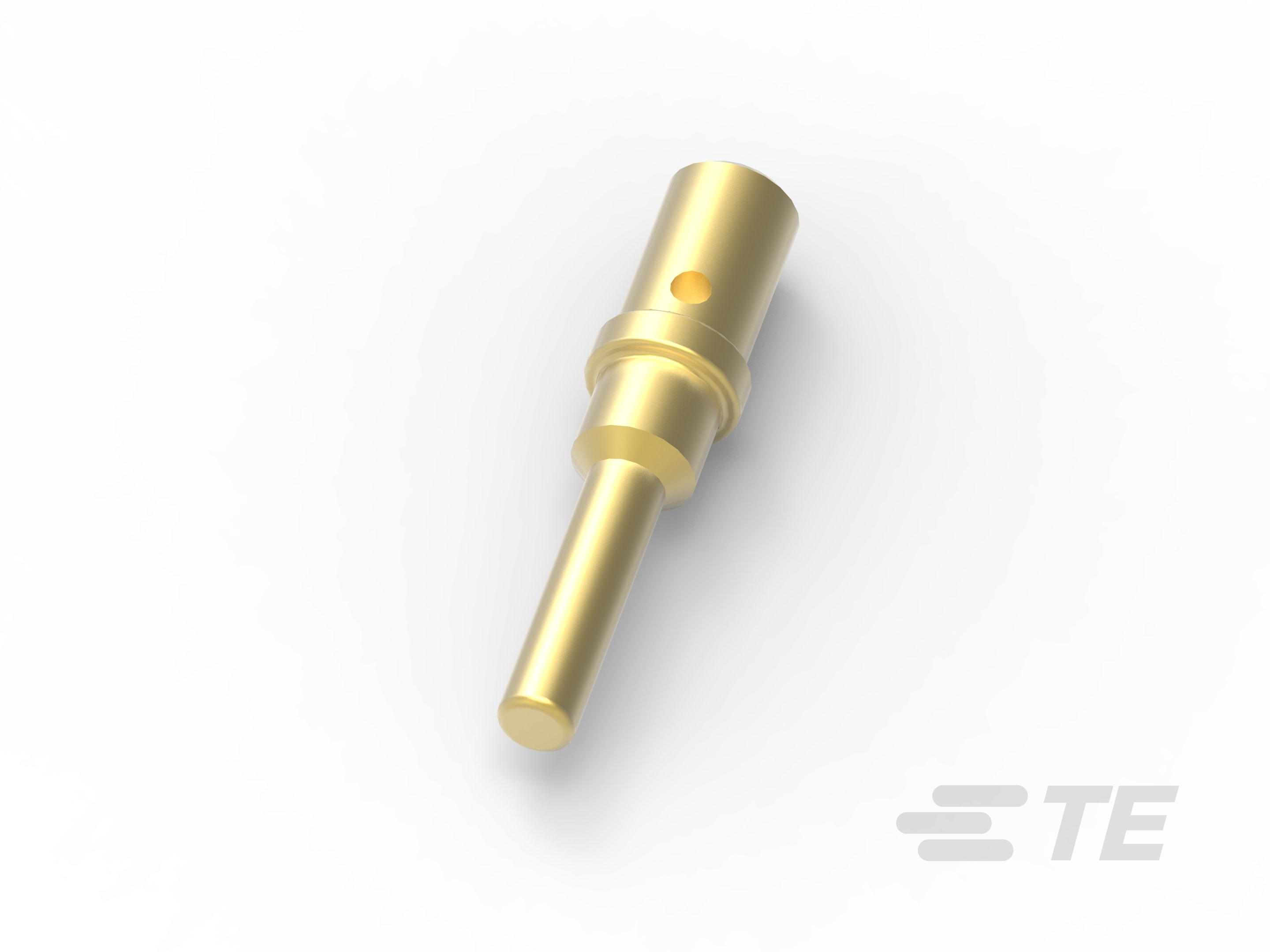

Pin, Pin Diameter 2.4 mm [.094 in], 16 – 18 AWG Wire Size, .75 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
0460-256-12233
Pin, Pin Diameter 2.4 mm [.094 in], 16 – 18 AWG Wire Size, .75 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
-
- DEUTSCH
- DEUTSCH Common Contact
- TE Internal #: 0460-256-12233
- TE Internal Description: PIN, SOLID, SIZE 12,16-18AWG,PD/NI/AU
- Alias #: ZPF000000000131867
- All DEUTSCH Solid Contacts (46)
-
Packaging Method : Crate
-
Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]
-
Interface Plating : Palladium Nickel (PdNi)
-
Operating Temperature (Max) : 150 °C [ 302 °F ]
-
Wire Size (AWG): 16 – 18
Documents
Product Drawings
- CONTACT PIN SIZE 12, REDUCED CRIMP BARRELL ENG_CD_0460-256-12XX_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_0460-256-12233_B_c-0460-256-12233-b-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_0460-256-12233_B_c-0460-256-12233-b.2d_dxf.zip English
- ENG_CVM_CVM_0460-256-12233_B_c-0460-256-12233-b.3d_igs.zip English
- ENG_CVM_CVM_0460-256-12233_B_c-0460-256-12233-b.3d_stp.zip English
Datasheets & Catalog Pages
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151004_E1.pdf English
- Product Specification ENG_SS_108-151004_E.pdf English
