0460-264-16141

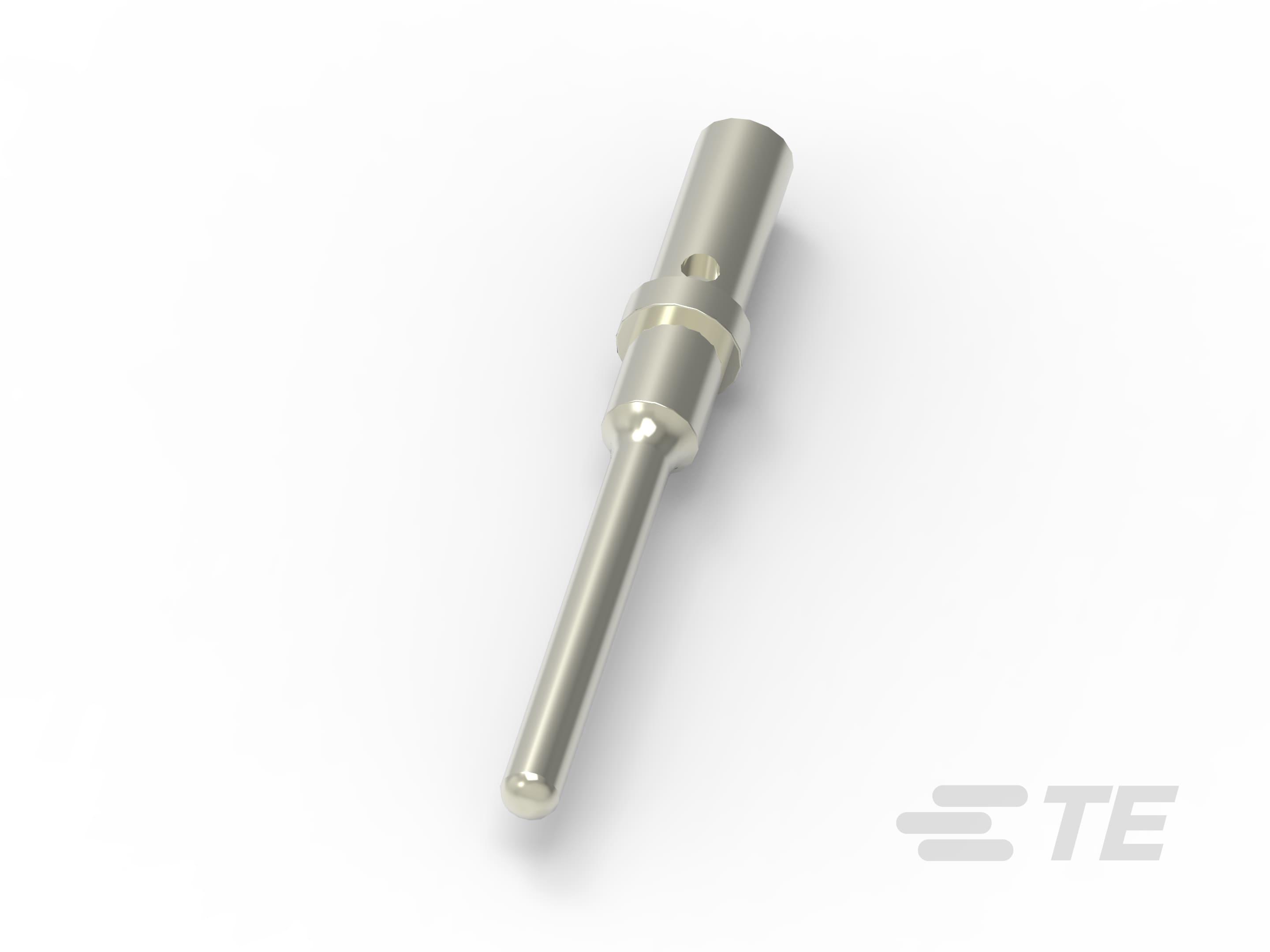

Pin, Pin Diameter 1.5 mm [.06 in], 16 – 20 AWG Wire Size, .5 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
0460-264-16141
Pin, Pin Diameter 1.5 mm [.06 in], 16 – 20 AWG Wire Size, .5 – 1.5 mm² Wire Size, DEUTSCH Common Contact, Automotive Terminals
-
- DEUTSCH
- DEUTSCH Common Contact
- TE Internal #: 0460-264-16141
- TE Internal Description: PIN, SOLID, SIZE 16, 16-20AWG, NI
- Alias #: ZPF000000000131878
- All DEUTSCH Solid Contacts (46)
-
Packaging Method : Package
-
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
-
Interface Plating : Nickel (Ni)
-
Operating Temperature (Max) : 125 °C [ 257 °F ]
-
Wire Size (AWG): 16 – 20
Documents
Product Drawings
- CONTACT PIN, EXTENDED SIZE 16, 16-18 AWG WIRE HD SERIES ENG_CD_0460-264-16XX_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_0460-264-16141_C.pdf 3D
- Customer View Model ENG_CVM_CVM_0460-264-16141_C.2d_dxf.zip English
- ENG_CVM_CVM_0460-264-16141_C.3d_igs.zip English
- ENG_CVM_CVM_0460-264-16141_C.3d_stp.zip English
Datasheets & Catalog Pages
- CONNECTOR SELECTOR ENG_DS_1-1773962-8_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-151004_E1.pdf English
- Product Specification ENG_SS_108-151004_E.pdf English
