Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

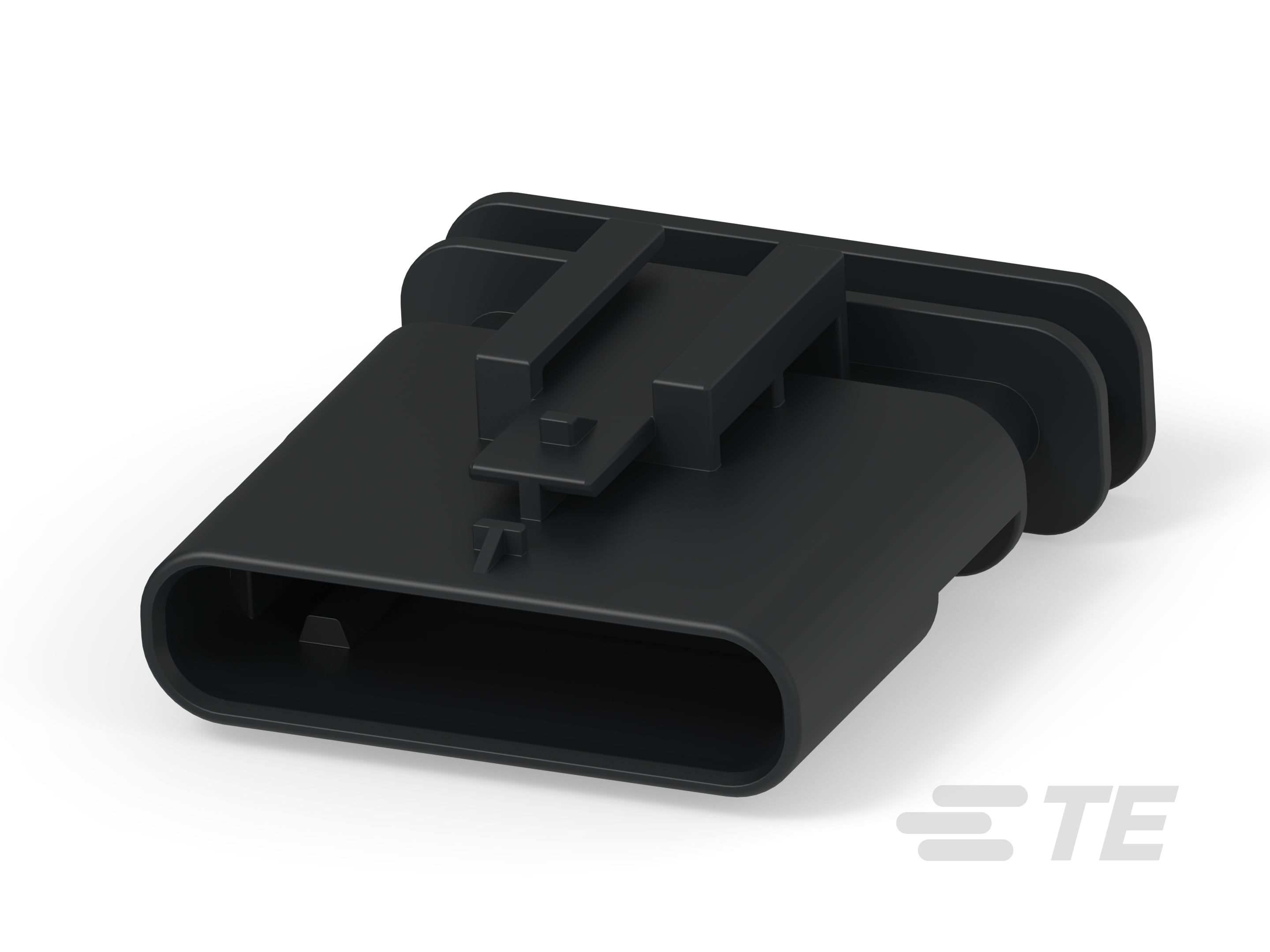

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : On the Terminal

• Sealable : Yes

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Positions : 8

• Number of Rows : 1

• Operating Voltage (VDC): 14

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Connector & Keying Code : A

• Cable Exit Angle : 180°

• Mating Tab Width : 1.2 mm [ .047 in ]

• Contact Current Rating (Max) (A): 25

• Contact Size : 1.2mm

• Contact Type : Tab

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Product Width : 44 mm [ 1.732 in ]

• Connector Height : 16.25 mm [ .64 in ]

• Product Length : 40.2 mm [ 1.583 in ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Circuit Application : Power

• Packaging Method : Box

• Packaging Quantity : 1
