Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

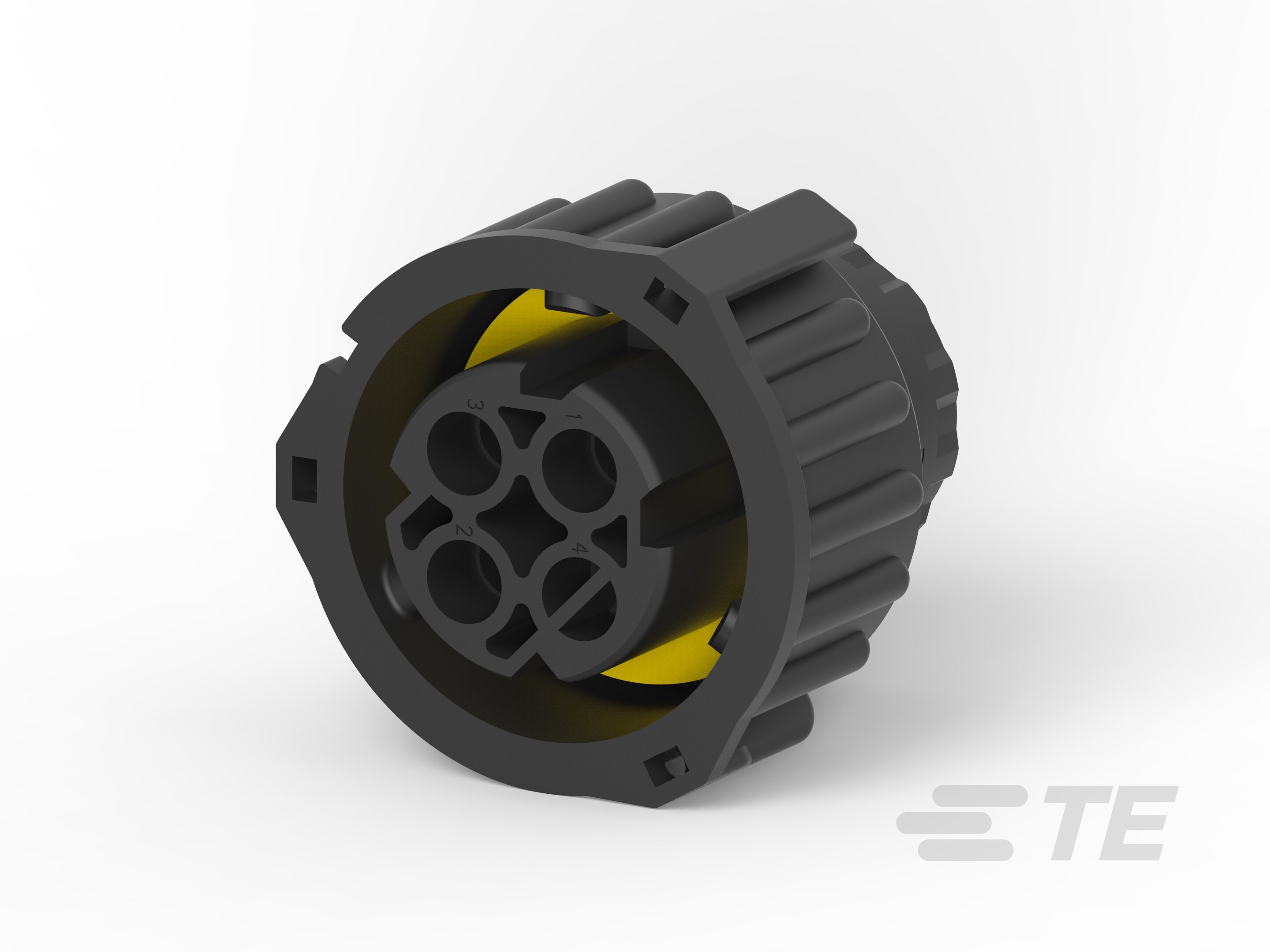

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Circular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 2

• Number of Positions : 3

• Blank Cavity Position : 4

• Operating Voltage (VDC): 48

• Nominal Voltage Architecture (V): 12, 24, 42, 48

• Primary Product Color : Black

• Connector & Keying Code : 1

• Cable Exit Angle : 180°

• Mating Pin Diameter : 2.5 mm [ .098 in ]

• Contact Type : Socket

• Contact Size : 2.5mm

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : No

• Strain Relief : Without

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 7 mm [ .276 in ]

• Housing Material : PBT GF

• Product Width : 31 mm [ 1.22 in ]

• Connector Height : 32.8 mm [ 1.291 in ]

• Product Length : 32.8 mm [ 1.29 in ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Circuit Application : Power

• IP Rating : IP67, IP69K

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 700
