Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

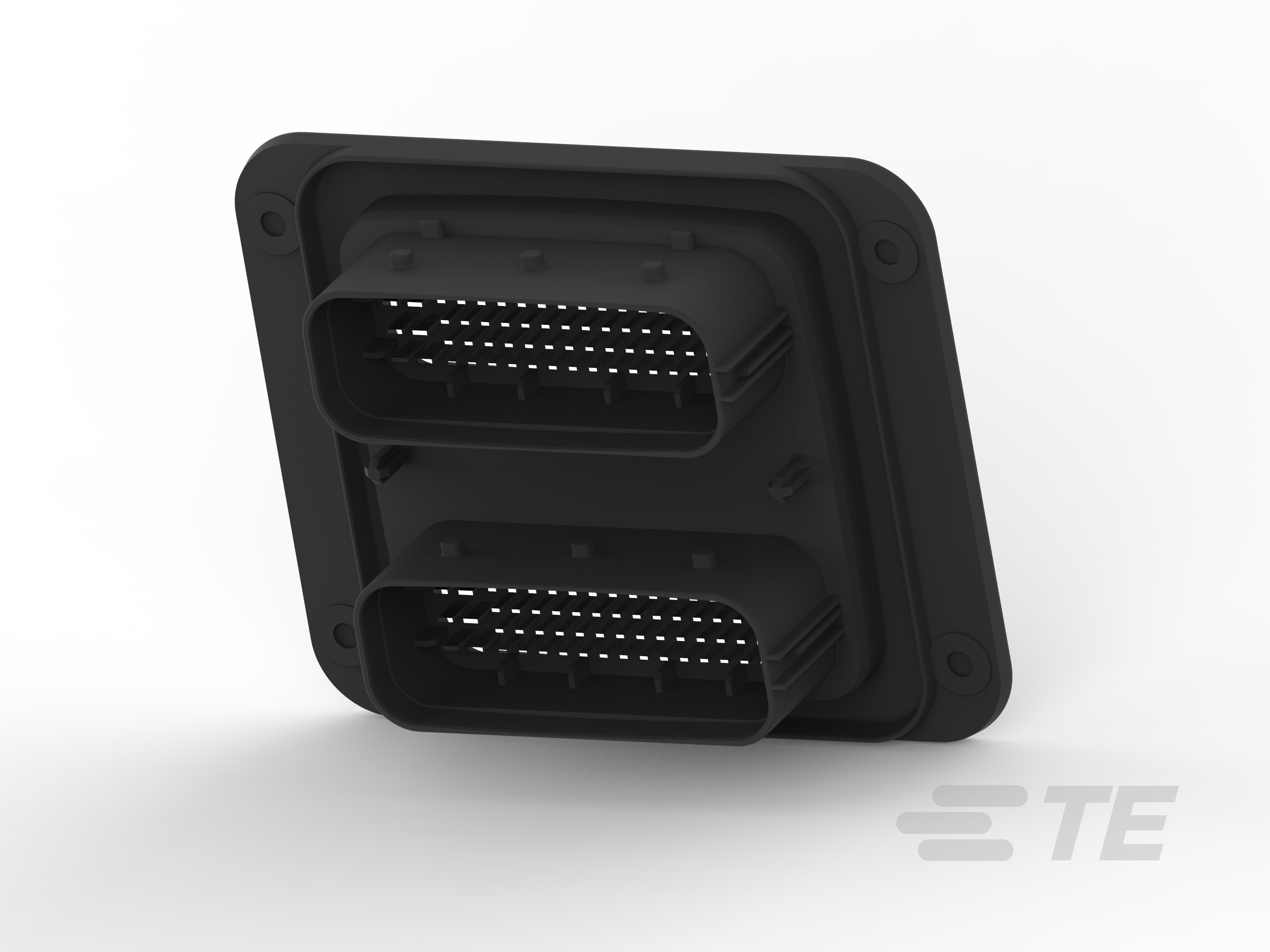

• Connector Shape : Rectangular

• Mixed & Hybrid Header : Yes

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : Yes

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 2

• Number of Signal Positions : 124

• PCB Mount Orientation : Vertical

• Number of Positions : 124

• Number of Rows : 8

• Housing Material : PA 66 GF25

• Centerline (Pitch) (mm): 4, 5

• Centerline (Pitch) (in): .157, .197

• Mating Tab Thickness (mm): .8, .64

• Mating Tab Thickness (in): .031, .025

• Mating Tab Width (mm): 2.8, 1.5

• Mating Tab Width (in): .11, .059

• Contact Size : 2.8mm, 1.5mm

• Contact Mating Area Plating Material : Silver (Ag)

• Contact Type : Tab

• PCB Mount Retention Type : Mounting Hole

• Mounting Holes : With

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Shielded : No

• Circuit Application : Power & Signal

• Connector & Keying Code : A-B

• Primary Product Color : Black

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Packaging Quantity : 32

• Packaging Method : Box

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Operating Voltage (VDC): 260

• IP Rating : IP69K, IP67

• Termination Method to PCB : Through Hole - Solder
