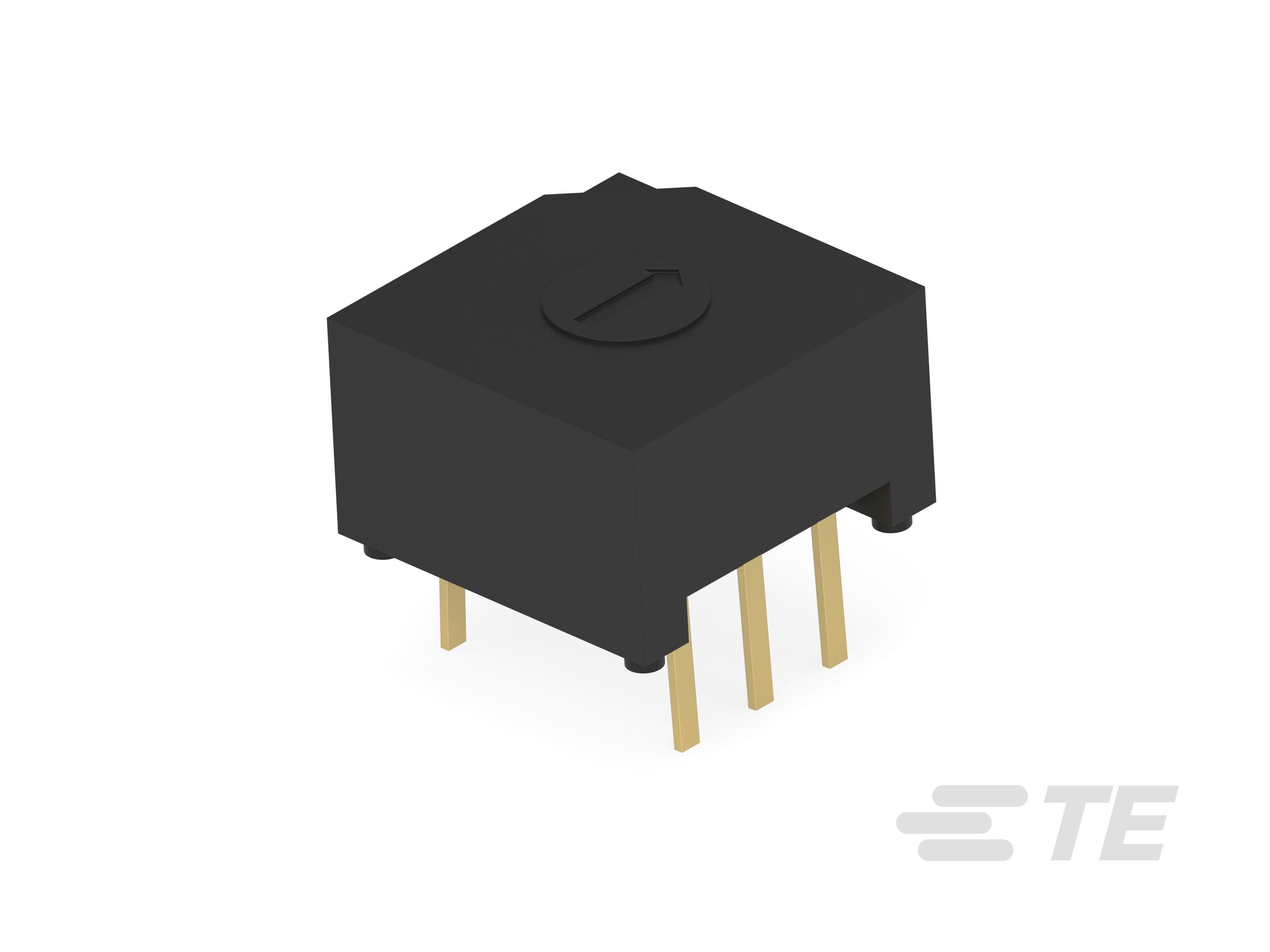

16 Position, Flush Actuator, Black Actuator, Rotary DIP, 16 Switch, Thermoplastic, Sealed, .4 A Contact Rating, Alcoswitch DIP, Rotary Switches
1-1825007-8
16 Position, Flush Actuator, Black Actuator, Rotary DIP, 16 Switch, Thermoplastic, Sealed, .4 A Contact Rating, Alcoswitch DIP, Rotary Switches
-
- Alcoswitch
- Alcoswitch Rotary DIP DRD ,
- Alcoswitch DIP
- TE Internal #: 1-1825007-8
- TE Internal Description: DRD16SE04=ROT DIP,16P,SMT
- Alias #: DRD16SE04
-
Number of Positions : 16
-
Actuator Style : Flush Actuator
-
Actuator Color : Black
-
Rotary Switch Type : Rotary DIP
-
Number of Switches : 16
