Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

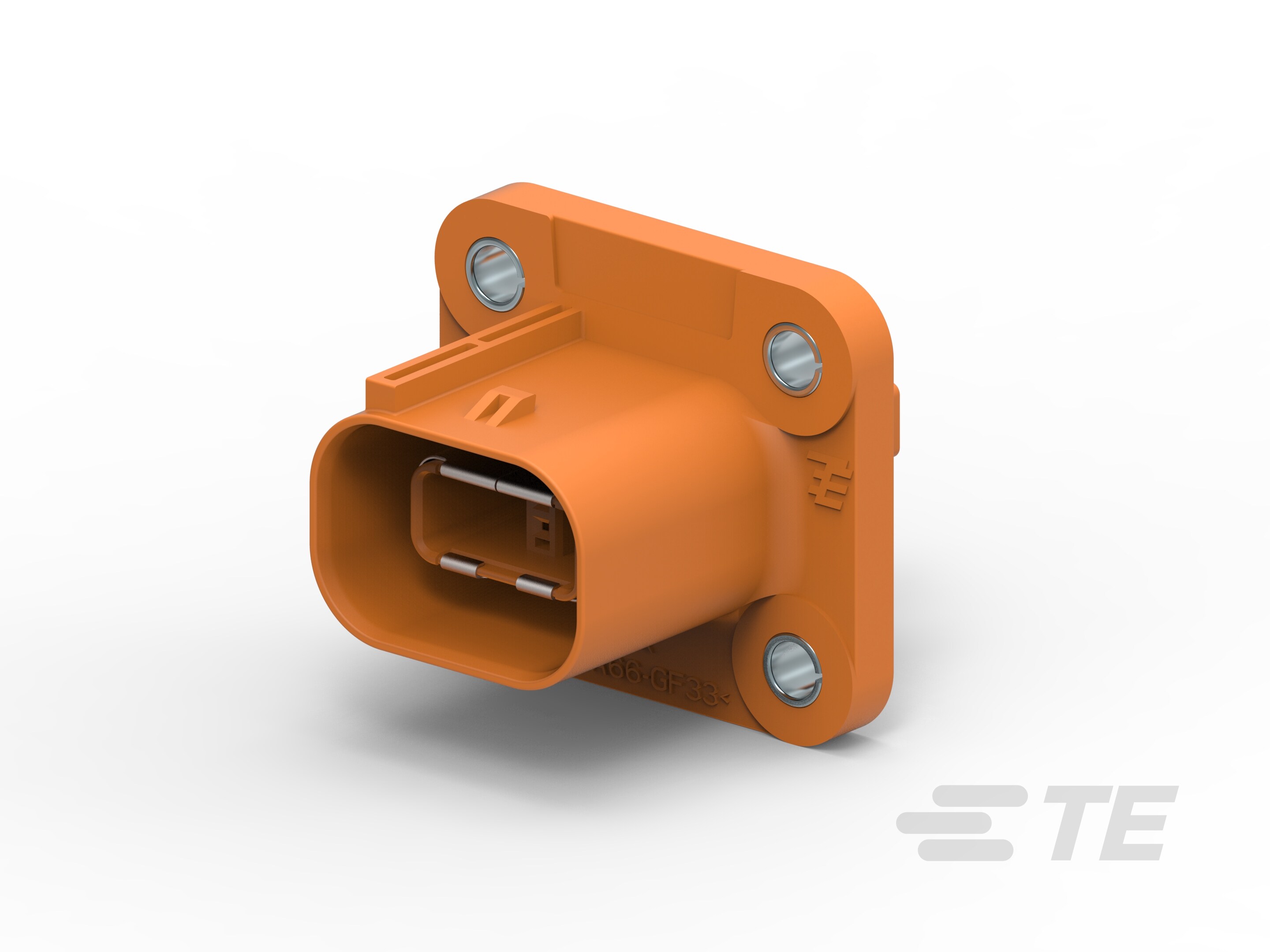

• Connector Shape : Rectangular

• Mixed & Hybrid Header : Yes

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Device

• Header Type : Fully Shrouded

• Sealable : Yes

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 2

• Number of Signal Positions : 2

• PCB Mount Orientation : Vertical

• Number of Positions : 4

• Number of Rows : 2, 1

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Mating Area Plating Material : Silver

• Contact Type : Tab

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Alignment : Without

• Mating Alignment : With

• Shielded : Yes

• Circuit Application : Signal

• Connector & Keying Code : E

• Primary Product Color : Orange

• Operating Temperature (Max) : 125 °C [ 212 °F ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Packaging Quantity : 1

• Packaging Method : Package

• Connector Length : 45.4 mm [ 1.78 in ]

• Connector Width : 40.6 mm [ 1.59 in ]

• Voltage Rating (Max) (VDC): 600

• Termination Method to PCB : Through Hole - Press-Fit

• Centerline (Pitch) : 10.4 mm [ .409 in ]
