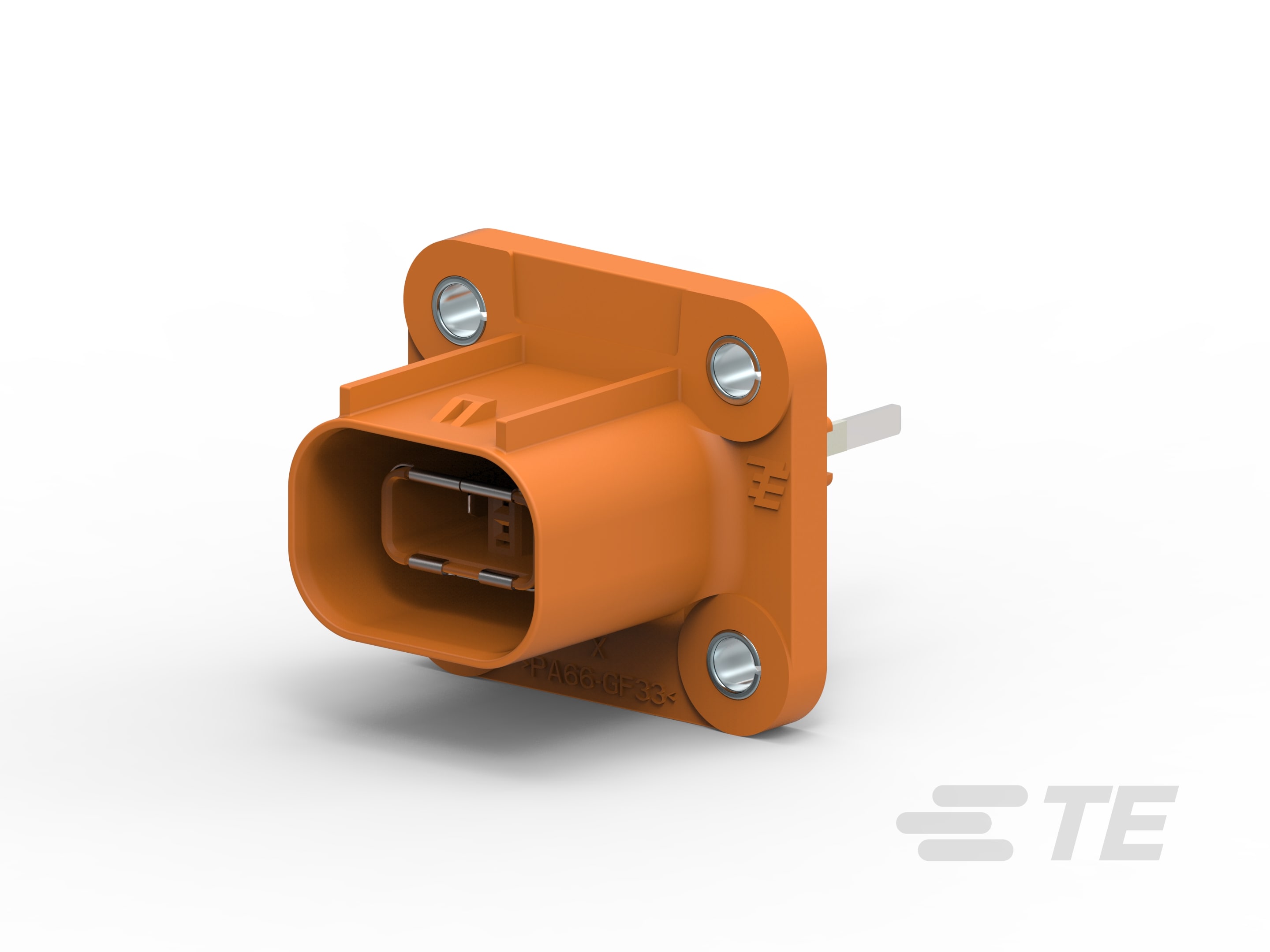

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Shape : Rectangular

• Sealable : Yes

• Connector System : Wire-to-Device

• PCB Connector Assembly Type : PCB Mount Header

• Header Type : Fully Shrouded

• Mixed & Hybrid Header : No

• PCB Mount Orientation : Vertical

• Operating Voltage (VDC): 750

• Nominal Voltage Architecture (V): 750

• Voltage Rating (Max) (VDC): 750

• Primary Product Color : Orange

• Connector & Keying Code : D

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Mating Area Plating Material : Silver

• Contact Type : Tab

• PCB Mount Alignment : Without

• Mounting Holes : Without

• PCB Mount Retention : Without

• Mating Alignment : With

• Panel Mount Feature : Without

• Connector Length : 45.4 mm [ 1.78 in ]

• Connector Width : 40.6 mm [ 1.59 in ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Operating Temperature (Max) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140

• Operating Temperature (Max) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284

• Shielded : Yes

• Circuit Application : Signal

• UL Flammability Rating : None

• Degree of Protection : IP67
