Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

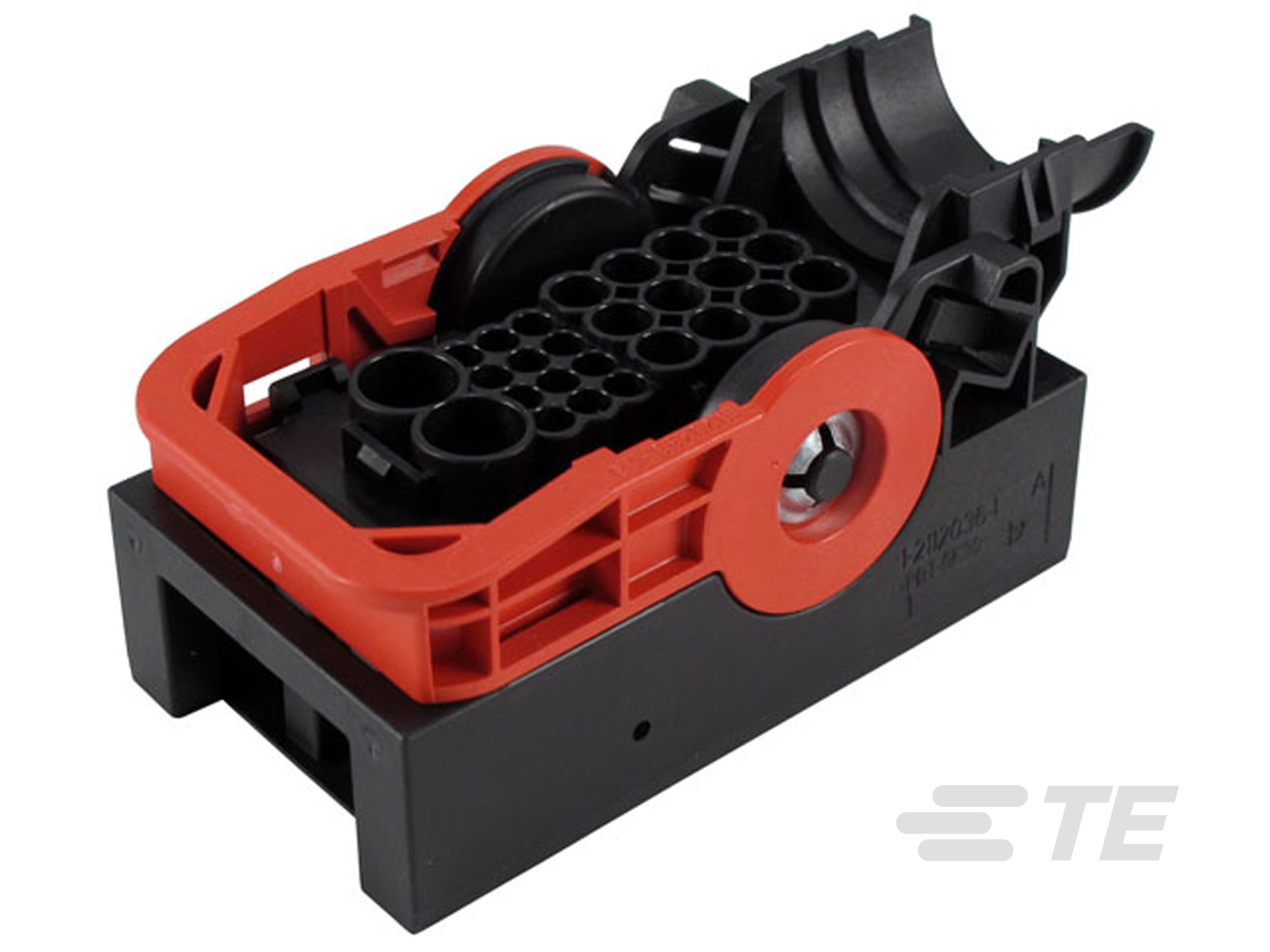

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : Yes

• Number of Rows : 2, 3, 4

• Number of Positions : 26

• Operating Voltage (VDC): 42

• Primary Product Color : Black

• Connector & Keying Code : A

• Cable Exit Angle : 90°

• Contact Current Rating (Max) (A): 20, 30, 50

• Contact Type : Receptacle

• Mating Tab Width (mm): 1.6, 2.8, 6.3

• Mating Tab Width (in): .062, .11, .248

• Contact Size : 2.8mm, 1.5K, 6.3mm

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : Yes

• Strain Relief : With

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) (mm): 4, 6

• Centerline (Pitch) (in): .157, .236

• Housing Material : PBT GF30

• Product Width : 44 mm [ 1.73 in ]

• Connector Height : 41.7 mm [ 1.64 in ]

• Row-to-Row Spacing (mm): 4.2, 6, 9

• Row-to-Row Spacing (in): .165, .236, .354

• Product Length : 92.5 mm [ 3.64 in ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-0

• Degree of Protection : IP67, IP69K

• Packaging Method : Box

• Packaging Quantity : 96
