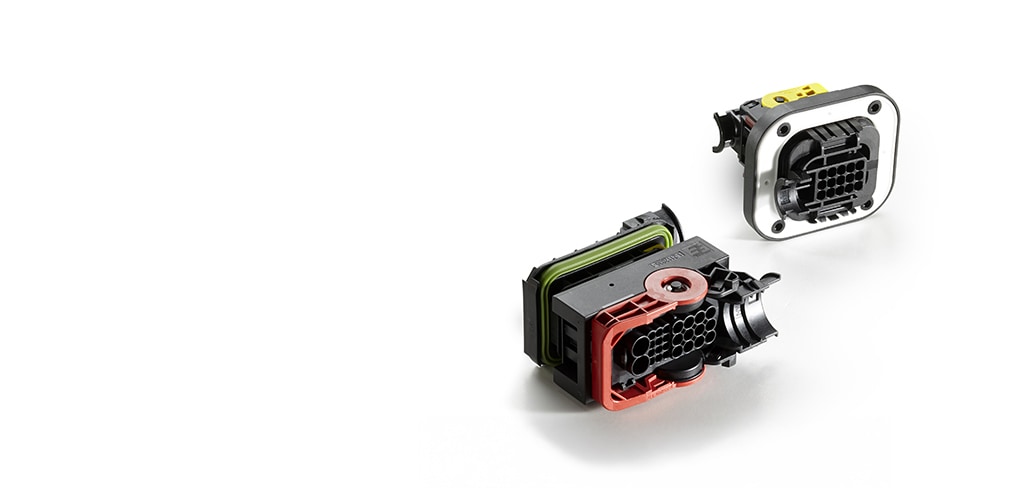

LEAVYSEAL Connector Housings

LEAVYSEAL Connector Housings-CAT-L489-CH8172
  • AMP
|
  • LEAVYSEAL
LEAVYSEAL Connector Housings are versatile and durable connectors designed for demanding industrial and commercial environments. Featuring configurations from 15 to 92 positions, these housings utilize a lever lock system for secure and straightforward mating. With the ability to handle up to 40 amps and IP69K protection, LEAVYSEAL housings are suited for applications requiring high pin count and robust sealing against moisture and dust. The housings accept AMP MCP 6.3/4.8K, 2.8, and 1.5K box and blade contacts.
More Less

Product Features

  • Number of Positions : 15, 18, 21, 22, 25, 26, 29, 31, 39, 46, 48, 58, 62, 66, 92, 95, 104

  • Connector & Housing Type : Housing for Female Terminals, Housing for Male Terminals, Plug, Receptacle

  • Mating Tab Width (mm): .64, 1.2, 1.5, 1.6, 2.8, 5.8, 6.3

  • Mating Tab Width (in): .025, .047, .059, .062, .063, .11, .228, .248, .25

  • Connector System : Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire

  • Centerline (Pitch) (mm): 2.5, 3, 3.5, 4, 4.6, 5, 5.5, 6, 9

  • Centerline (Pitch) (in): .098, .118, .138, .157, .18, .181, .196, .197, .2, .21, .216, .236, .24, .354, .4

Available from

LADD Inc
Overview

Key Benefits

LEAVYSEAL Connector Housings

  • Versatile Configurations: Available in multiple sizes and arrangements from 15 to 92 positions, offering flexibility for various applications.
  • Secure Connections: Features a lever lock system for reliable and easy mating, reducing the risk of connection failures.
  • High Current Capacity: Supports up to 40 amps, making it suitable for high-power applications.
  • Environmental Protection: Provides robust sealing with IP67 and IP69K ratings, suitable for harsh conditions.
  • Comprehensive Compatibility: Accepts a wide range of contact sizes and types, including AMP MCP 6.3/4.8K, 2.8, and 1.5K.
  • Durable Construction: Made with flame-retardant materials like UL 94 V-0, offering enhanced safety and longevity.
  • Ease of Installation: Integrated cable attachment and secondary lock features simplify installation and maintenance.
LEAVYSEAL Connector Housings offer design flexibility accepting mixed wire sizes.

Key Features

LEAVYSEAL Connector Housings

Feature
Configurable Positions
 Available configurations include 15, 18, 21, 22, 26, 29, 31, 39, 46, 62, 76, 92, and 124 positions.
Lever Lock System
 Integrated lever lock mechanism provides secure and straightforward mating.
High Current Capacity
 Supports up to 40 amps with AMP MCP 6.3/4.8K contacts, and up to 20 amps with 1.5K contacts.
Environmental Protection
 IP67 and IP69K ratings offer robust sealing against water and dust ingress.
Contact Compatibility
 Compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts, accommodating various applications.
Durable Housing Material
 Made from flame-retardant materials like UL 94 V-0 rated PBT, suitable for harsh environments.
Secondary Locking
 Integrated secondary lock confirms contact alignment and retention for reliable connections.
Variety of Mounting Options
 Available in in-line, flange, and PCB mounting configurations for diverse installation needs.
Wide Temperature Range
 Operates from -40°C to +140°C, making it suitable for extreme environmental conditions.
Color Coding and Keying
 Multiple color and keying options help avoid mismating and enable proper connector pairing.
Accessory Compatibility
 Supports accessories such as backshells, flanges, locking slides, and sealing covers.
Integrated Cable Attachment
 Built-in cable attachment simplifies installation and enhances connection stability.
Catalog
LEAVYSEAL Catalog (English)
Infographic
LEAVYSEAL Infographic (English)
Infographic
LEAVYSEAL Extension Infographic (English)
  1. LEAVYSEAL Connector Overview & Assembly Instructions (English)

Learn about our heavy-duty LEAVYSEAL connectors, which feature a lever lock for mating. Watch this video for an overview of the connectors and for step-by-step instructions on inserting and removing contacts, as well as mating and unmating.

LEAVYSEAL Connectors

Real World Applications

LEAVYSEAL Connector Housings

  • Heavy-Duty Trucks: Used for connecting critical components like engine control units, lighting systems, and sensors that require robust and reliable connections to withstand harsh road conditions.
  • Agricultural Machinery: Suited for applications in tractors and harvesters, where connectors must handle exposure to dust, moisture, and vibration while maintaining stable power and signal transmission.
  • Construction Equipment: Employed in excavators, bulldozers, and cranes, where connectors need to support high-power applications and endure extreme environmental conditions such as mud, water, and debris.
  • Public Transportation Vehicles: Applied in buses and trains for connecting systems like braking, climate control, and lighting, where dependable performance under continuous use is critical.
  • Mining Vehicles: Utilized in heavy machinery like haul trucks and drilling rigs, where connectors are subject to severe environmental stress, including dirt, dust, and heavy mechanical loads.
  • Specialized Utility Vehicles: Used in emergency response vehicles and mobile maintenance units, where connectors support various systems such as power distribution, communication devices, and equipment controls under challenging operating conditions.

LEAVYSEAL Connector Series

LEAVYSEAL Headerse

LEAVYSEAL Connector Headers
LEAVYSEAL Backshellse

LEAVYSEAL Connector Backshells
leavyseal mounting accessories

LEAVYSEAL Mounting Accessories

leavyseal locking clips

LEAVYSEAL Locking Slides

leavyseal connector

Product Group

LEAVYSEAL Connectors

Our LEAVYSEAL high pin connectors feature a lever-lock system for mating.

Connectivity Solutions for Vehicle in Harsh Environments

Discover our ruggedized connectors and terminal portfolio designed for long-lasting service, even under severe conditions.

Application

E-mobility Solutions for Commercial Vehicles

Our HIVONEX connector and charging solutions enable a seamless transition into the next generation of E-mobility.
Commercial & Industrial Vehicles

Industries

Powering the Future of Commercial & Industrial Transportation

We engineer connectivity solutions that enable heavy-duty vehicles to run reliably and efficiently under harsh conditions.
FAQ

LEAVYSEAL Connector Housings

Q:    What is a LEAVYSEAL connector?

A:    TE Connectivity’s LEAVYSEAL environmentally sealed connectors are designed for wire-to-wire, wire-to-board, and wire-to-device applications. The LEAVYSEAL connectors are used in harsh environment applications where even a small degradation in connection may be critical.

Q:    What are the appropriate applications for LEAVYSEAL connectors?

A:    Truck, Bus, Off-highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational, Marine, Motorcycle



READ MORE FAQS ABOUT LEAVYSEAL CONNECTORS

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Mixed & Hybrid Connector  No, Yes

  • Connector Shape  Rectangular

  • Connector & Housing Type  Housing for Female Terminals, Housing for Male Terminals, Plug, Receptacle

  • Connector System  Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire

  • Sealable  No, Yes

  • Primary Locking Feature  Clean Body, Contact Retainer, Integrated in Housing, Locking Lance, On the Terminal

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Blank Cavity Position  13, 14, 15, 16, 0

  • Number of Positions  15, 18, 21, 22, 25, 26, 29, 31, 39, 46, 48, 58, 62, 66, 92, 95, 104

  • Number of Rows  1, 2, 3, 4, 6

Electrical Characteristics

  • Operating Voltage (VDC) 12, 24, 28, 30, 32, 36, 42, 60

  • Operating Voltage (VAC) 42, 60

  • Nominal Voltage Architecture (V) 12, 24, 28, 36, 42, 48, 80, 90

Body Features

  • Cable Exit Angle  180°, 75°, 90°

  • Primary Product Color  Beige, Black, Blue, Brown, Claret Violet, Gray, Green, Light Blue, Natural, Violet

  • Connector & Keying Code  A, B, C, D, E, F, G, H, I

Contact Features

  • Contact Type  Receptacle, Socket, Tab

  • Contact Size  .64mm, 1.2mm, 1.5K, 1.5mm, 1.6mm, 2.8mm, 5.8mm, 6.3mm, AMP MCP 2.8mm

  • Mating Tab Width (mm) .64, 1.2, 1.5, 1.6, 2.8, 5.8, 6.3

  • Mating Tab Width (in) .025, .047, .059, .062, .063, .11, .228, .248, .25

  • Contact Current Rating (Max) (A) 7, 10, 20, 23, 25, 29, 30, 32, 40, 45, 50

Mechanical Attachment

  • Mating Alignment  With

  • Terminal Position Assurance  No, Yes

  • Mating Alignment Type  Keyed, Polarization, Polarizing Rib, Polarizing Slot

  • Strain Relief  With, Without

  • Connector Mounting Type  Cable Mount (Free-Hanging), Panel Mount

Housing Features

  • Housing Material  PBT GF, PBT GF15, PBT GF20, PBT GF30

  • Centerline (Pitch) (mm) 2.5, 3, 3.5, 4, 4.6, 5, 5.5, 6, 9

  • Centerline (Pitch) (in) .098, .118, .138, .157, .18, .181, .196, .197, .2, .21, .216, .236, .24, .354, .4

Dimensions

  • Product Width (mm) 32.4, 37, 37.3, 37.9, 40, 43.4, 43.5, 43.7, 44, 44.15, 45.5, 45.8, 46, 46.1, 47.1, 50, 58.4, 63.2, 70.7

  • Product Width (mm) 32.4, 37, 37.3, 37.9, 40, 43.4, 43.5, 43.7, 44, 44.15, 45.5, 45.8, 46, 46.1, 47.1, 50, 58.4, 63.2, 70.7

  • Product Width (in) 1.27, 1.46, 1.47, 1.49, 1.57, 1.7, 1.713, 1.72, 1.73, 1.738, 1.791, 1.8, 1.81, 1.811, 1.814, 1.85, 1.854, 1.96, 2.299, 2.48, 2.783

  • Compatible Insulation Diameter Range (mm) 1.4 – 2.16, 3.4 – 4.32, 2.2 – 3

  • Product Length (mm) 48.4, 57.2, 57.8, 59.2, 59.5, 66.6, 69.2, 69.7, 71.5, 76.5, 85.2, 92, 92.5, 104, 112.9, 113.2, 113.25, 115.4, 120.5, 122, 124.8, 125, 135.8

  • Row-to-Row Spacing (mm) 1.5, 2.54, 2.95, 3, 3.5, 4, 4.2, 4.5, 4.95, 5, 5.5, 6, 6.3, 8, 9

  • Compatible Insulation Diameter Range (mm) 1.4 – 2.16, 3.4 – 4.32, 2.2 – 3

  • Connector Height (mm) 36.4, 37.3, 37.9, 38.6, 41.7, 42.5, 43.7, 44, 45.8, 45.93, 46, 49, 50.2, 51.5, 55.3, 57, 62.7, 66.7, 67, 70.7, 70.8, 80

  • Wire Size (AWG) 13, 16 – 12, 20 – 13, 22 – 13

  • Connector Height (mm) 36.4, 37.3, 37.9, 38.6, 41.7, 42.5, 43.7, 44, 45.8, 45.93, 46, 49, 50.2, 51.5, 55.3, 57, 62.7, 66.7, 67, 70.7, 70.8, 80

  • Connector Height (in) 1.433, 1.47, 1.49, 1.492, 1.52, 1.64, 1.67, 1.72, 1.73, 1.732, 1.803, 1.808, 1.81, 1.94, 1.976, 2.028, 2.24, 2.47, 2.62, 2.78, 2.79, 3.149

  • Row-to-Row Spacing (mm) 1.5, 2.54, 2.95, 3, 3.5, 4, 4.2, 4.5, 4.95, 5, 5.5, 6, 6.3, 8, 9

  • Row-to-Row Spacing (in) .059, .1, .116, .118, .138, .157, .165, .177, .194, .196, .216, .217, .236, .248, .315, .354

  • Wire Size (mm²) 2.5, 4 – 6, .35 – 2.5, .35 – 1.5, .5 – .25, 1.5 – 2.5, .5 – 2.5

  • Product Length (mm) 48.4, 57.2, 57.8, 59.2, 59.5, 66.6, 69.2, 69.7, 71.5, 76.5, 85.2, 92, 92.5, 104, 112.9, 113.2, 113.25, 115.4, 120.5, 122, 124.8, 125, 135.8

  • Product Length (in) 1.9, 2.25, 2.27, 2.33, 2.622, 2.72, 2.724, 2.74, 2.81, 3.01, 3.35, 3.354, 3.62, 3.64, 4.095, 4.44, 4.45, 4.459, 4.543, 4.74, 4.744, 4.8, 4.91, 4.921, 5.346

Usage Conditions

  • Operating Temperature (Max) (°C) 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 140

  • Operating Temperature (Max) (°F) 125, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 284

  • Operating Temperature Range (°C) -40 – 125, -30 – 120, -40 – 140, -40 – 120

  • Operating Temperature Range (°F) -40 – 257, -40 – 284, -22 – 248, -40 – 248

Operation/Application

  • Circuit Application  Power, Power & Signal, Signal

Industry Standards

  • UL Flammability Rating  UL 94HB, UL 94V-0

  • IP Rating  IP67, IP68, IP69K, IP6K9K, IPX7, IPX9K

  • Compatible With Agency/Standards Products  LV214

Packaging Features

  • Packaging Method  Box, Bulk, Carton, Container, Package, Standard, Tray

  • Packaging Quantity  1, 22, 44, 54, 64, 72, 80, 81, 84, 96, 108, 117, 126, 150, 159, 160, 180, 196, 200, 270, 285, 440

Other

  • Serviceable  Yes

  • Connector Position Assurance Capable  No, Yes

Reference Number

  • TE Internal Number CAT-L489-CH8172
