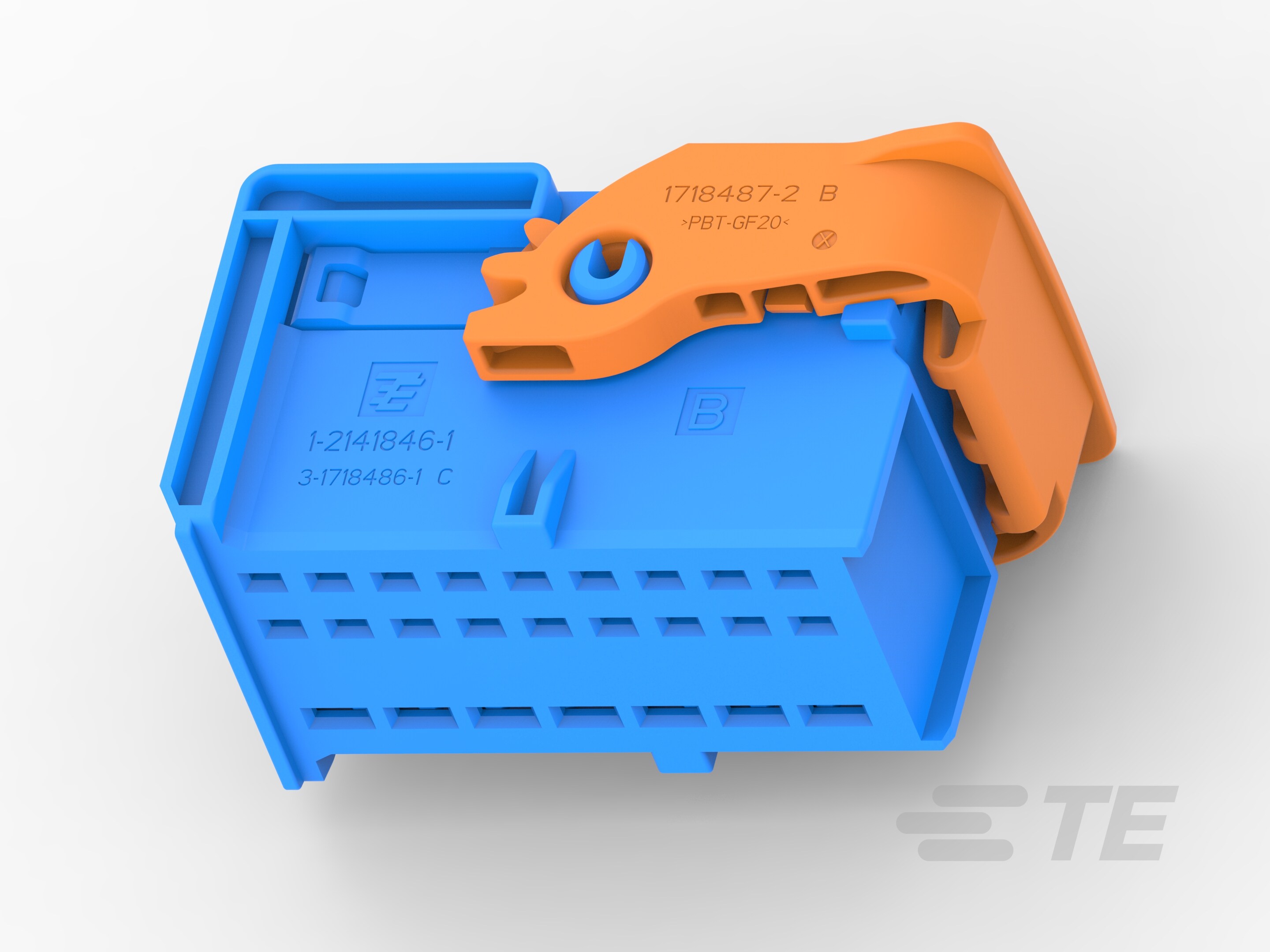

1-2141846-3
Cover Assembly, Cable Exit Angle 180°, Blue, PBT GF, 25 Position, AMP MCP Connector System, Automotive Connector Caps & Covers
1-2141846-3
Cover Assembly, Cable Exit Angle 180°, Blue, PBT GF, 25 Position, AMP MCP Connector System, Automotive Connector Caps & Covers
-
- AMP
- AMP MCP Connector System
- TE Internal #: 1-2141846-3
- TE Internal Description: CARRIER,RECEPTACLE HSG, 25POS,ASSY
- All AMP Carrier for Receptacle Inserts (14)
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
-
Primary Product Color : Blue
-
Primary Product Material : PBT GF
-
Operating Temperature (Max) (°C): 85, 120, 110, 100, 90, 105, 75, 70, 80
-
Operating Temperature (Max) (°F): 185, 194, 158, 167, 176, 212, 221, 230, 248
Documents
Product Drawings
- CARRIER, ENG_CD_2141846_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2141846-3_A_c-1-2141846-3-a-3d.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2141846-3_A_c-1-2141846-3-a.2d_dxf.zip English
- ENG_CVM_CVM_1-2141846-3_A_c-1-2141846-3-a.3d_igs.zip English
- ENG_CVM_CVM_1-2141846-3_A_c-1-2141846-3-a.3d_stp.zip English
Product Specifications
- Application Specification GER_SS_114-18663_B.pdf German
- Product Specification ENG_SS_108-18957_B.pdf English
