1-2177908-1

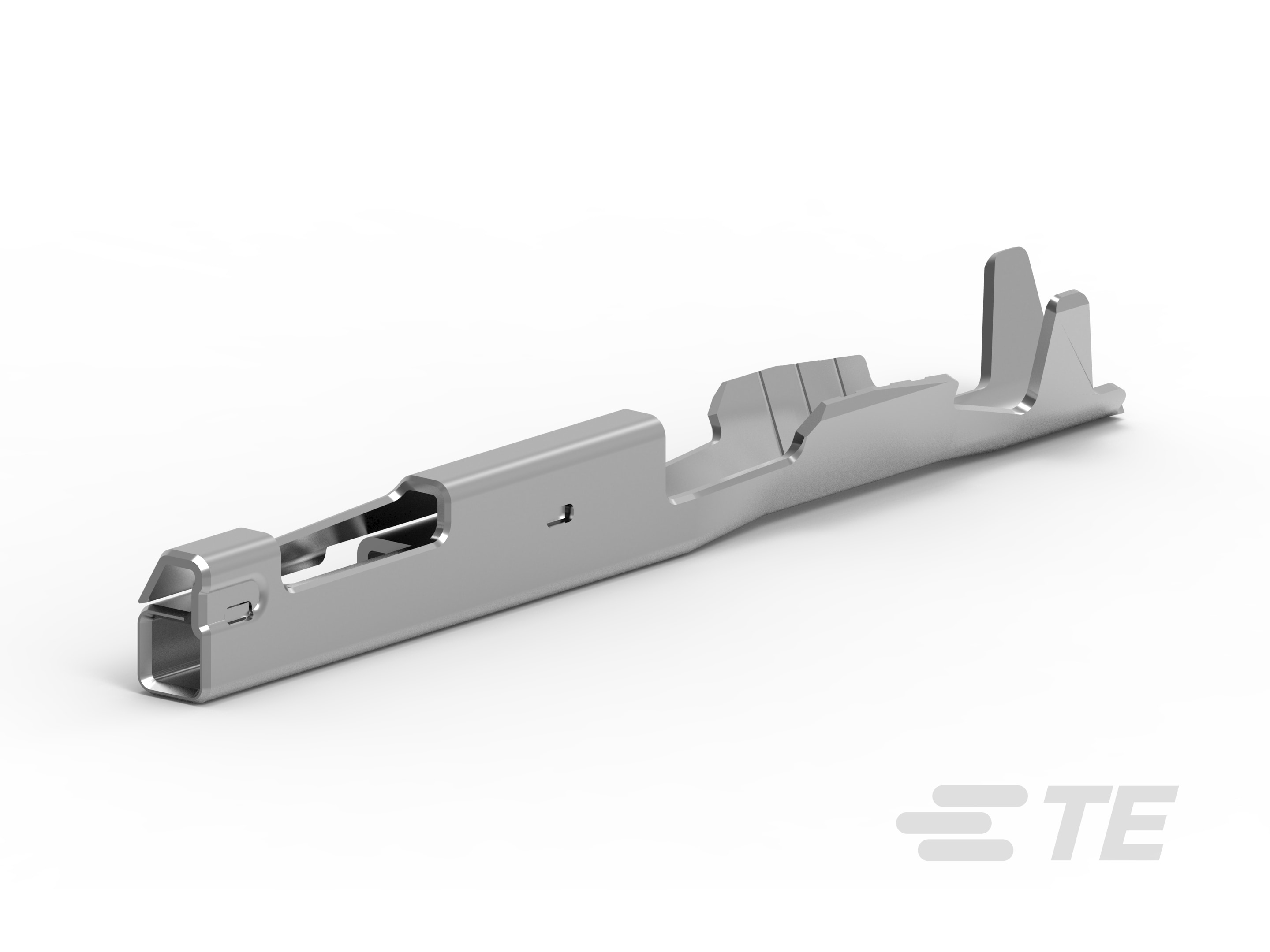

Receptacle Terminal, 26 – 25 AWG, .13 – .17 mm² Wire, .5 mm [.02 in] Tab Width, Tin (Sn), .4 mm [.016 in] Tab Thickness, MCON 0.50mm
1-2177908-1
Receptacle Terminal, 26 – 25 AWG, .13 – .17 mm² Wire, .5 mm [.02 in] Tab Width, Tin (Sn), .4 mm [.016 in] Tab Thickness, MCON 0.50mm
-
- MCON
- MCON 0.50mm
- TE Internal #: 1-2177908-1
- TE Internal Description: MCON 0.50 TERMINAL
- All MCON 0.50 Terminals (4)
-
Terminal Type : Receptacle
-
Wire Size (AWG): 26 – 25
-
Wire Size (mm²): .13 – .17
-
Mating Tab Width : .5 mm [ .02 in ]
-
Interface Plating : Tin (Sn)
Documents
Product Drawings
- MCON 050, Buchsenkontakt, clean body MCON 050, TERMINAL, CLEAN BODY ENG_CD_2208562_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2177908-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2177908-1_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2177908-1_A.3d_igs.zip English
- ENG_CVM_CVM_1-2177908-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94191_E.pdf English
- Product Specification ENG_SS_108-94342_C.pdf English
Agency Approvals
- CSA Certificate ENG_AAD_CSA_164196_6233_2482868_A.pdf English
