Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

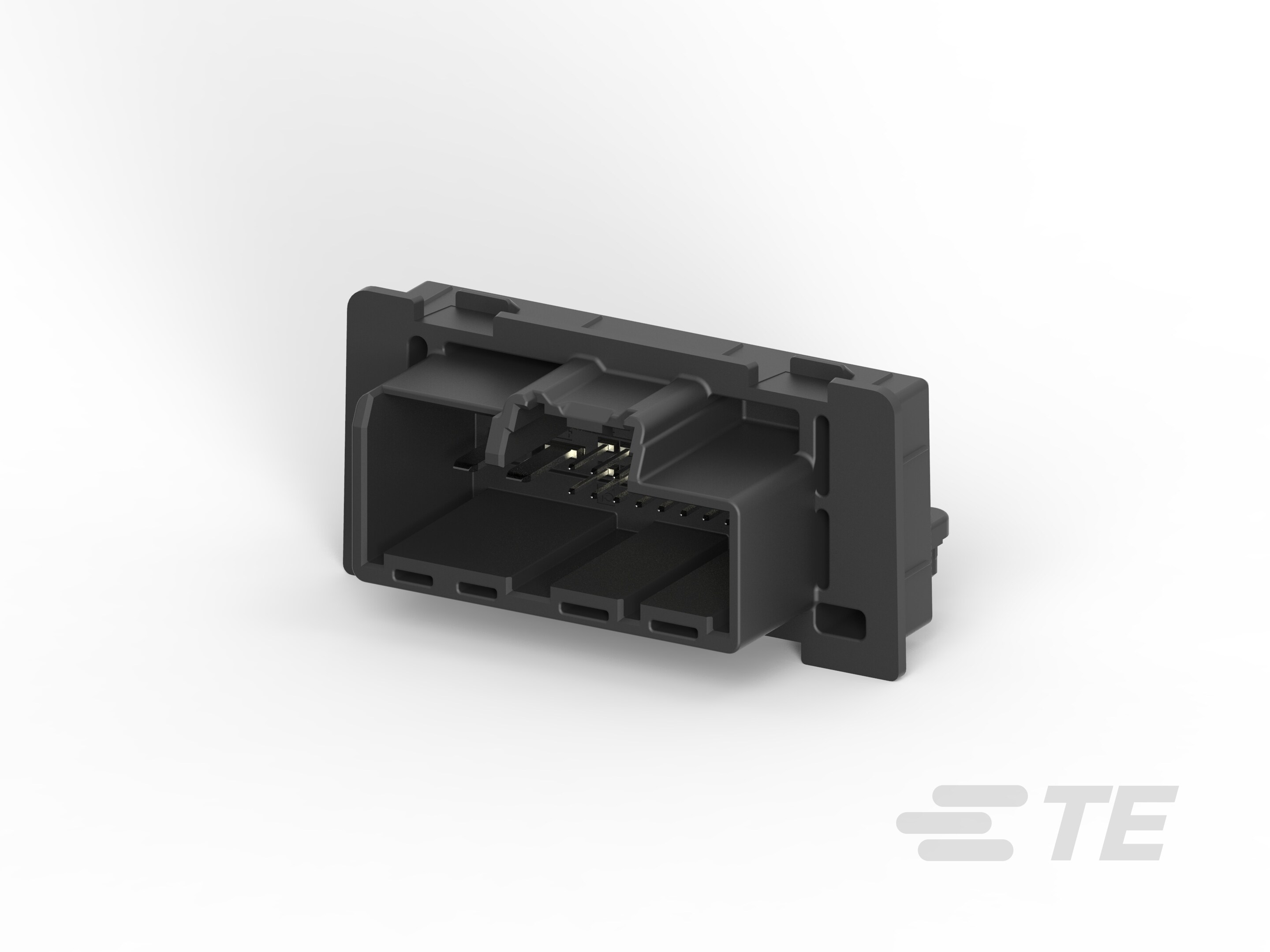

• Connector Shape : Rectangular

• Mixed & Hybrid Header : Yes

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 20

• PCB Mount Orientation : Horizontal

• Number of Positions : 24

• Number of Rows : 2

• Mating Tab Thickness (mm): .6, .8

• Mating Tab Thickness (in): .031, .024

• Mating Tab Width (mm): 2.5, .64

• Mating Tab Width (in): .1, .025

• Contact Size : 2.8mm, .64mm

• Contact Mating Area Plating Material : Tin

• Contact Type : Tab

• Mounting Holes : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Mating Alignment : With

• Shielded : No

• Circuit Application : Power & Signal

• Connector & Keying Code : A

• Primary Product Color : Black

• Operating Temperature (Max) (°C): 80, 100, 90, 65, 85, 75, 70

• Operating Temperature (Max) (°F): 212

• Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]

• Profile Height from PCB : 21.9 mm [ .862 in ]

• Connector Length : 63.16 mm [ 2.487 in ]

• PCB Thickness (Recommended) : 1 – .8 mm [ .04 – .031 in ]

• Connector Width : 35.3 mm [ 1.39 in ]

• Termination Method to PCB : Through Hole - Press-Fit

• Centerline (Pitch) (mm): 6.05, 2.54

• Centerline (Pitch) (in): .238, .1
