1-2350891-3

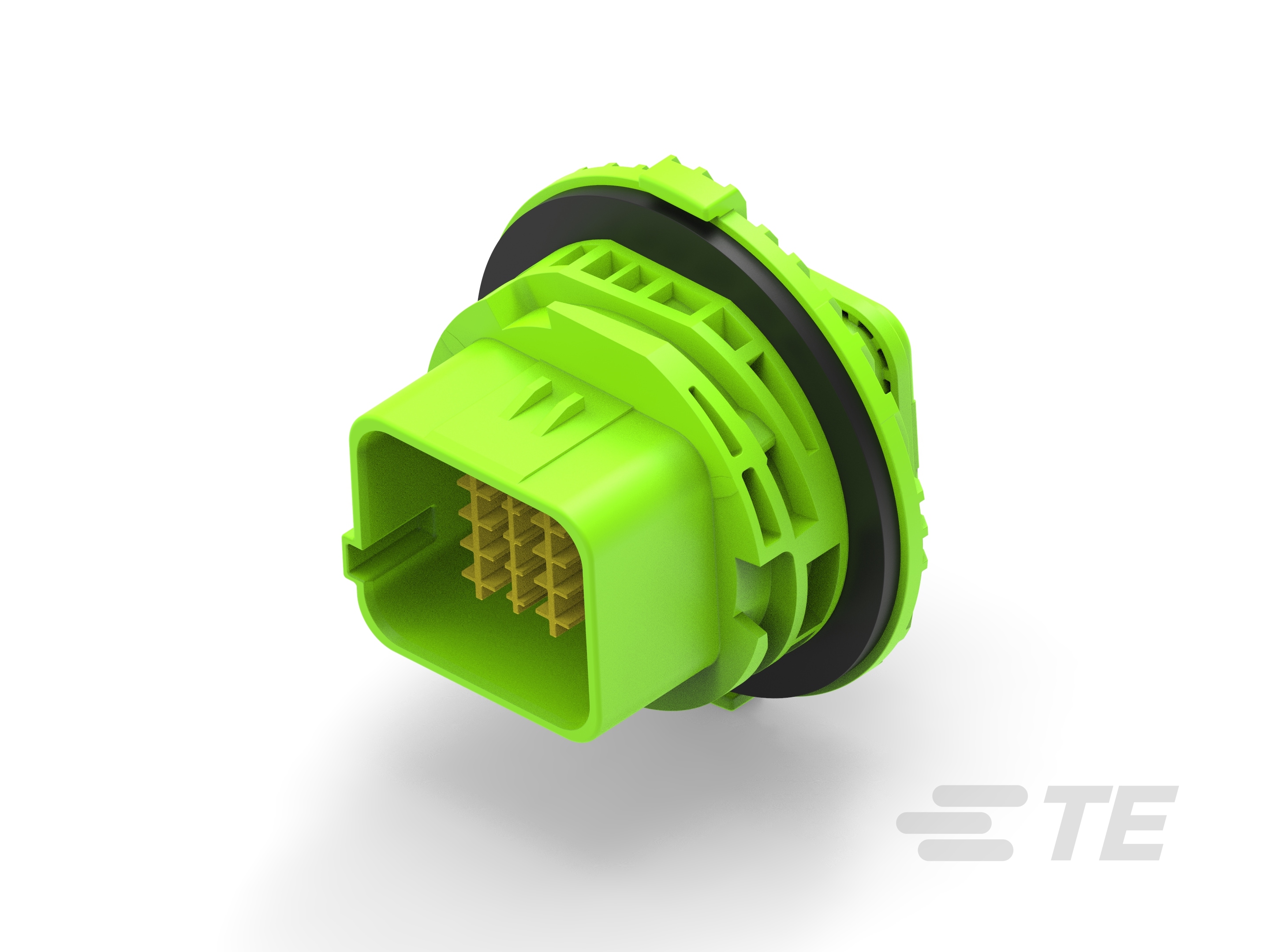

20 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Green, Wire & Cable, Power, DEUTSCH NTSEAL
1-2350891-3
20 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.5 mm [.138 in] Centerline, Sealable, Green, Wire & Cable, Power, DEUTSCH NTSEAL
-
- DEUTSCH
- DEUTSCH NTSEAL
- TE Internal #: 1-2350891-3
- TE Internal Description: 20POS,HYBRID,PIN HSG,SLD,COD C
-
Number of Positions : 20
-
Connector & Housing Type : Housing for Male Terminals
-
Mating Pin Diameter (mm): 1, 1.55
-
Mating Pin Diameter (in): .039, .061
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) : 3.5 mm [ .138 in ]
Documents
Product Drawings
- NTS 20POS TAB HOUSING ASSEMLBY DEUTSCH TERMINAL HYBRID CONNECTOR ENG_CD_2350891_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2350891-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2350891-3_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2350891-3_A.3d_igs.zip English
- ENG_CVM_CVM_1-2350891-3_A.3d_stp.zip English
Datasheets & Catalog Pages
- NTSEAL Sealed Wire-to-Wire Connectors ENG_DS_ict-ntseal-ds-a4-en_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-32209_C3.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_20230214_C1_C.pdf English
