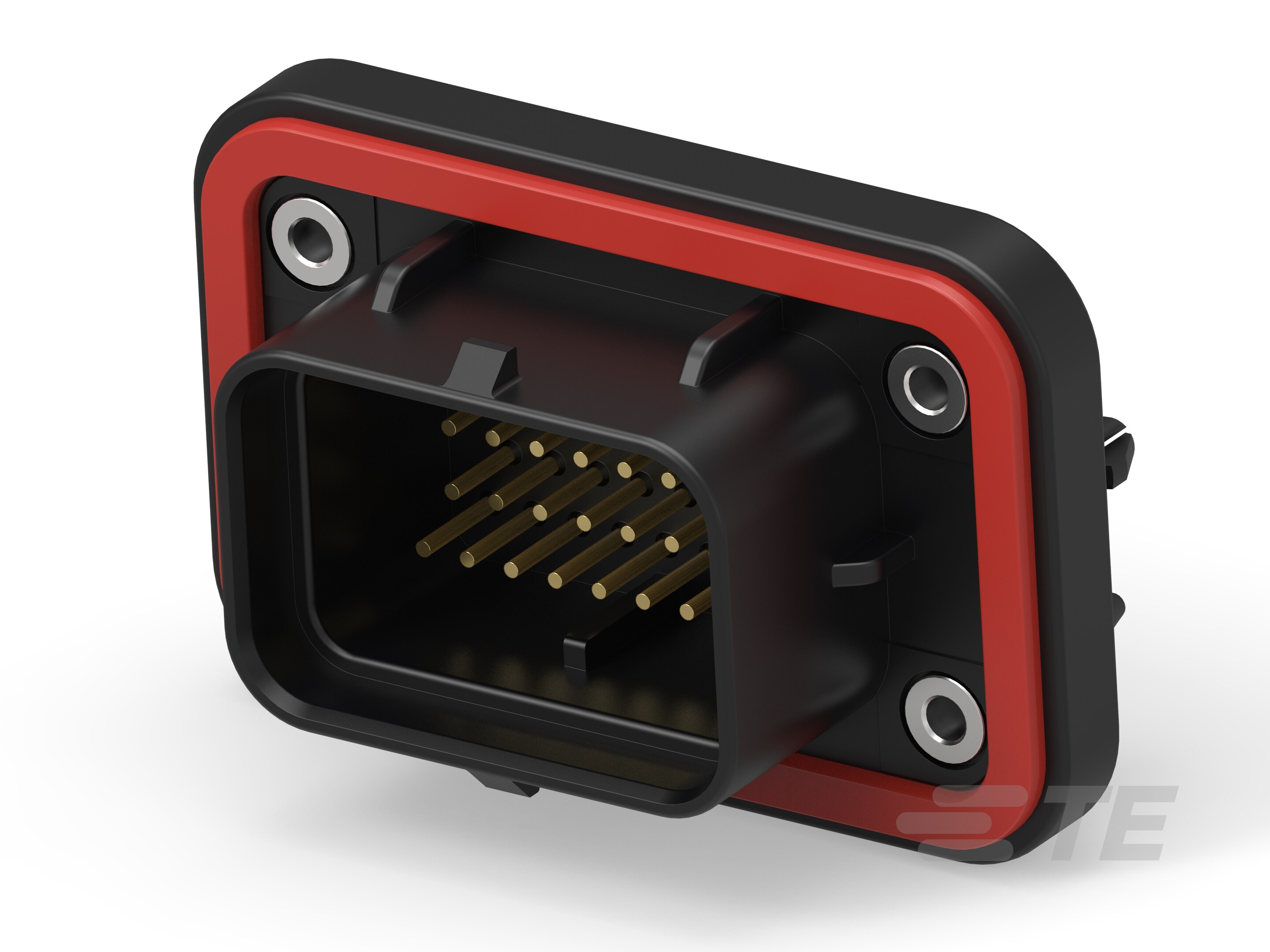

PCB Mount Header, Vertical, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Gold (Au), Through Hole - Solder, Sealable, Black, SUPERSEAL 1.0mm
1-2388688-3
PCB Mount Header, Vertical, Cable-to-Board, 34 Position, 3 mm [.118 in] Centerline, Gold (Au), Through Hole - Solder, Sealable, Black, SUPERSEAL 1.0mm
-
- SUPERSEAL 1.0mm
- TE Internal #: 1-2388688-3
- TE Internal Description: SUPERSEAL 34P HDR DBL LOCK VER COD 1
- All SUPERSEAL Connector Headers: 1.0 mm (35)
-
PCB Connector Assembly Type : PCB Mount Header
-
PCB Mount Orientation : Vertical
-
Connector System : Cable-to-Board
-
Number of Positions : 34
-
Number of Rows : 4
Documents
Product Drawings
- SUPERSEAL 34P HEADER 180 DEGREE DOUBLE LOCK ENG_CD_C-2437478_A2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-2388688-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1-2388688-3_A.2d_dxf.zip English
- ENG_CVM_CVM_1-2388688-3_A.3d_igs.zip English
- ENG_CVM_CVM_1-2388688-3_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-78140_A9.pdf English
