Please review product documents or contact us for the latest agency approval information.

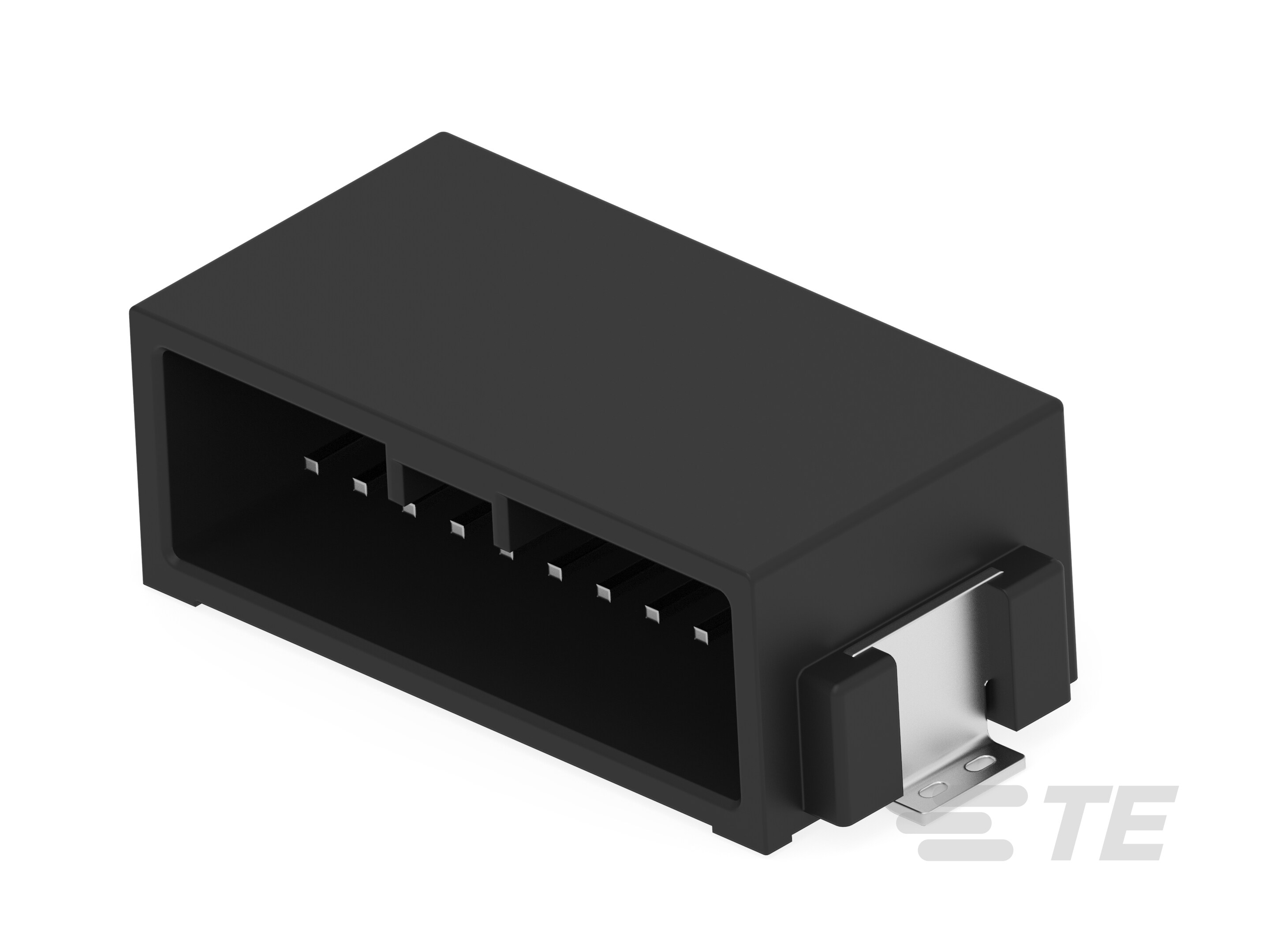

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• PCB Mount Orientation : Horizontal

• Number of Positions : 16

• Number of Rows : 2

• Primary Product Color : Black

• Contact Mating Area Plating Material Thickness : 1 – 2.5 µm [ 40 – 100 µin ]

• Contact Mating Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 3

• Termination Method to PCB : Surface Mount

• Mating Alignment Type : Keyed

• PCB Mount Retention Type : Retention Leg

• Mating Retention : With

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : PBT

• Centerline (Pitch) : 1.8 mm [ .071 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
