Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Terminal Features : Sheared

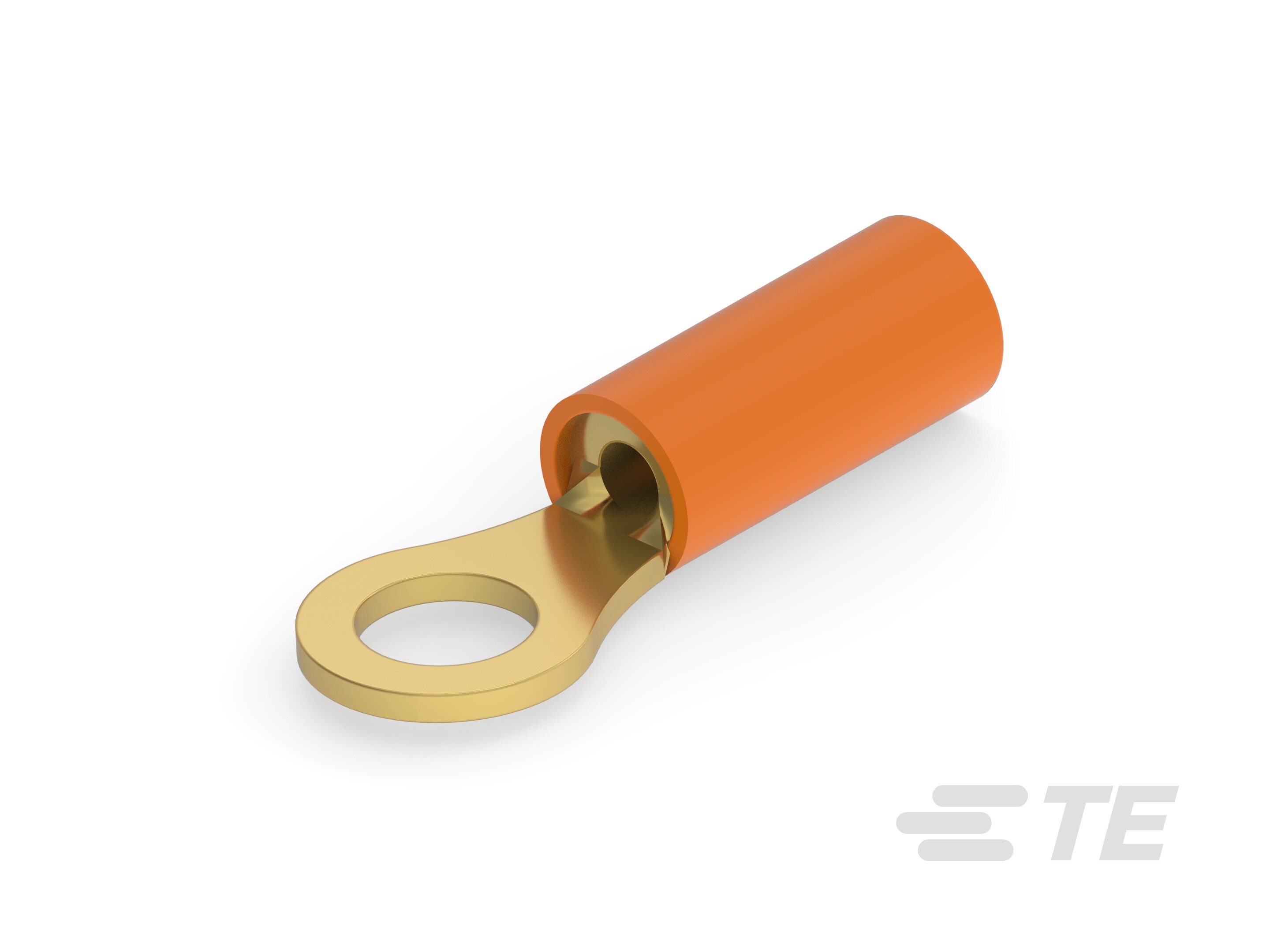

• Ring Terminal Product Type : Closed Ring Tongue Terminal

• Stud Size : 10

• Sealable : No

• Wire Insulation Support Retention Type : Insulation Support

• Packaging Quantity : 1000

• Packaging Method : Box

• Government Qualified Terminal : No

• Insulation Sleeve Color : Orange

• Product Weight (g): 4.536

• Voltage Rating (V): 300

• Wire Insulation Support : With

• Number of Holes : 1

• Barrel Type : Closed

• Terminal Orientation : Straight

• Terminal Plating Material : Gold

• Wire Size (AWG): 18 – 16

• Wire Size (mm²): .8 – 1.4

• Wire Size (CMA): 1600 – 2800

• Stud Diameter : 5 mm [ .197 in ]

• Tongue Thickness : .79 mm [ .031 in ]

• Product Length : 21.44 mm [ .844 in ]

• Compatible Insulation Diameter (Max) : 3.43 mm [ .135 in ]

• Compatible Insulation Diameter Range : 1.4 – 3.43 mm [ .055 – .135 in ]

• Insulation Option : Partially Insulated

• Compatible With Wire Plating Material : Gold
