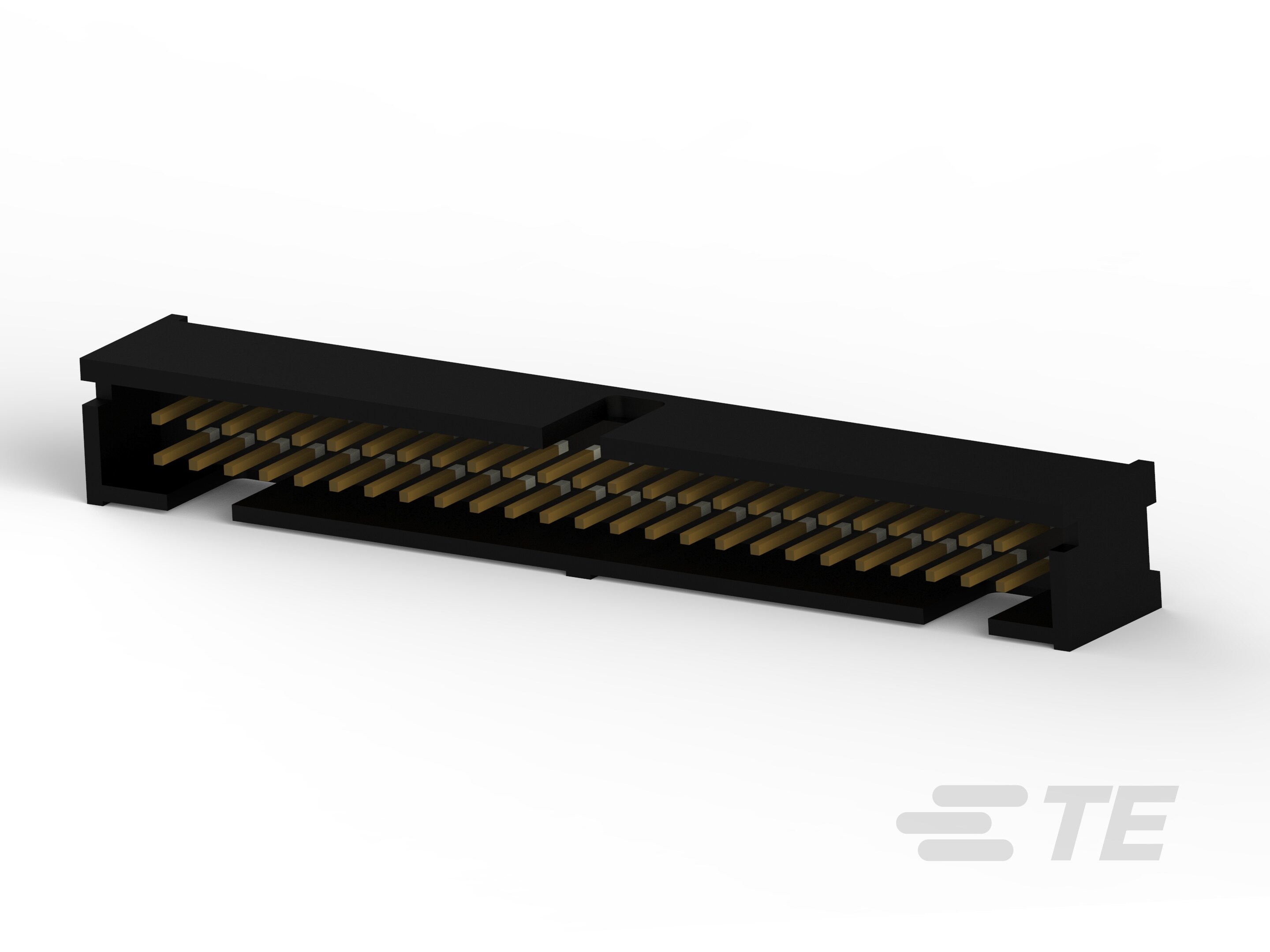

• Ribbon Cable Connector Header Type : Pin Header

• Connector Product Type : Connector Assembly

• Connector System : Wire-to-Board

• Connector & Housing Type : Plug

• Connector & Contact Terminates To : Printed Circuit Board

• Housing Material : Glass-Filled Nylon/PBT

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• PCB Mount Alignment : Without

• Mating Alignment : With

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• Mating Alignment Type : Dual Polarizing Bar, Center

• Mating Retention : Without

• Connector Mounting Type : Board Mount

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Termination Post & Tail Length : 3.05 mm [ .12 in ]

• Termination Method to PCB : Through Hole - Solder

• Connector Length : 58.42 mm [ 2.3 in ]

• Connector Height : 8.81 mm [ .347 in ]

• Shrouded End Dimension : 3.81 mm [ .15 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Primary Product Color : Black

• Daisy Chain : With

• Connector Profile : Low

• Contact Type : Pin

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Plating Material : Gold Flash over Palladium Nickel, Gold

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness (µin): 30

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): 1

• Housing Temperature Rating : Standard

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Packaging Method : Tube

• Packaging Quantity : 35

• UL Flammability Rating : UL 94V-0

• Insulation Resistance (MΩ): 5000

• Operating Voltage (VAC): 250

• Number of Positions : 50

• PCB Mount Orientation : Vertical

• Number of Rows : 2

• Circuit Application : Signal
