1-770904-0

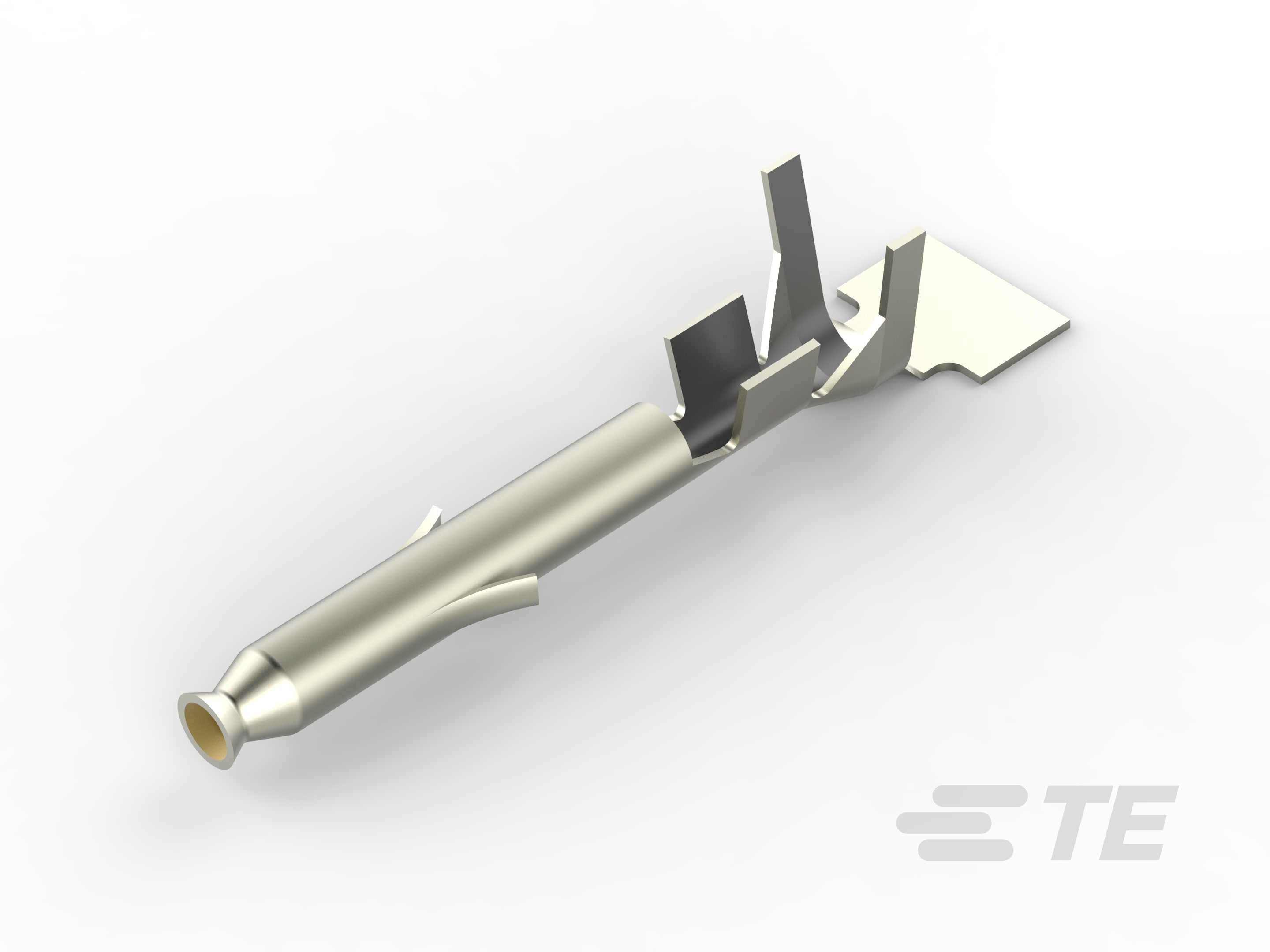

Socket Contact, Gold (Au), 600 VAC, 600 VDC, 22 – 18 AWG, .3 – .9 mm² Wire, Crimp, Brass, Power, Mini-Universal MATE-N-LOK
1-770904-0
Socket Contact, Gold (Au), 600 VAC, 600 VDC, 22 – 18 AWG, .3 – .9 mm² Wire, Crimp, Brass, Power, Mini-Universal MATE-N-LOK
-
- MATE-N-LOK
- Mini-Universal MATE-N-LOK
- TE Internal #: 1-770904-0
- TE Internal Description: MINI UMNL SOK 22-18 AWG AU
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Gold (Au)
-
Wire Contact Termination Area Plating Material : Tin
-
Operating Voltage (VAC): 600
-
Operating Voltage (VDC): 600
