1-770904-1

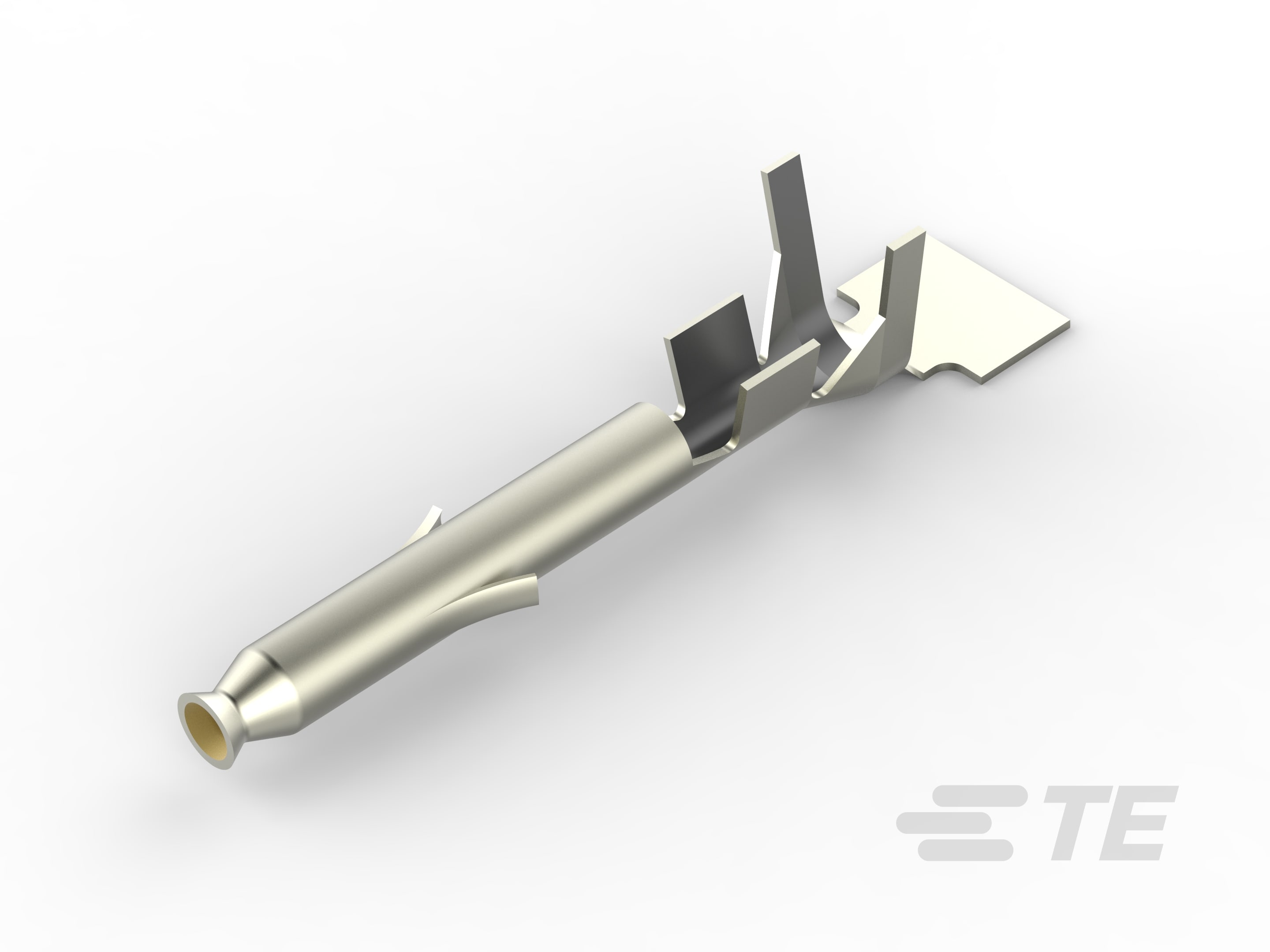

Socket Contact, Gold, 600 VAC, 600 VDC, 22 – 18 AWG, .3 – .9 mm² Wire, Crimp, Phosphor Bronze, Power, Mini-Universal MATE-N-LOK
1-770904-1
Socket Contact, Gold, 600 VAC, 600 VDC, 22 – 18 AWG, .3 – .9 mm² Wire, Crimp, Phosphor Bronze, Power, Mini-Universal MATE-N-LOK
-
- MATE-N-LOK
- Mini-Universal MATE-N-LOK
- TE Internal #: 1-770904-1
- TE Internal Description: MINI UMNL SOK 22-18AWG AU LF
-
Contact Type : Socket
-
Contact Mating Area Plating Material : Gold
-
Wire Contact Termination Area Plating Material : Tin
-
Operating Voltage (VAC): 600
-
Operating Voltage (VDC): 600
