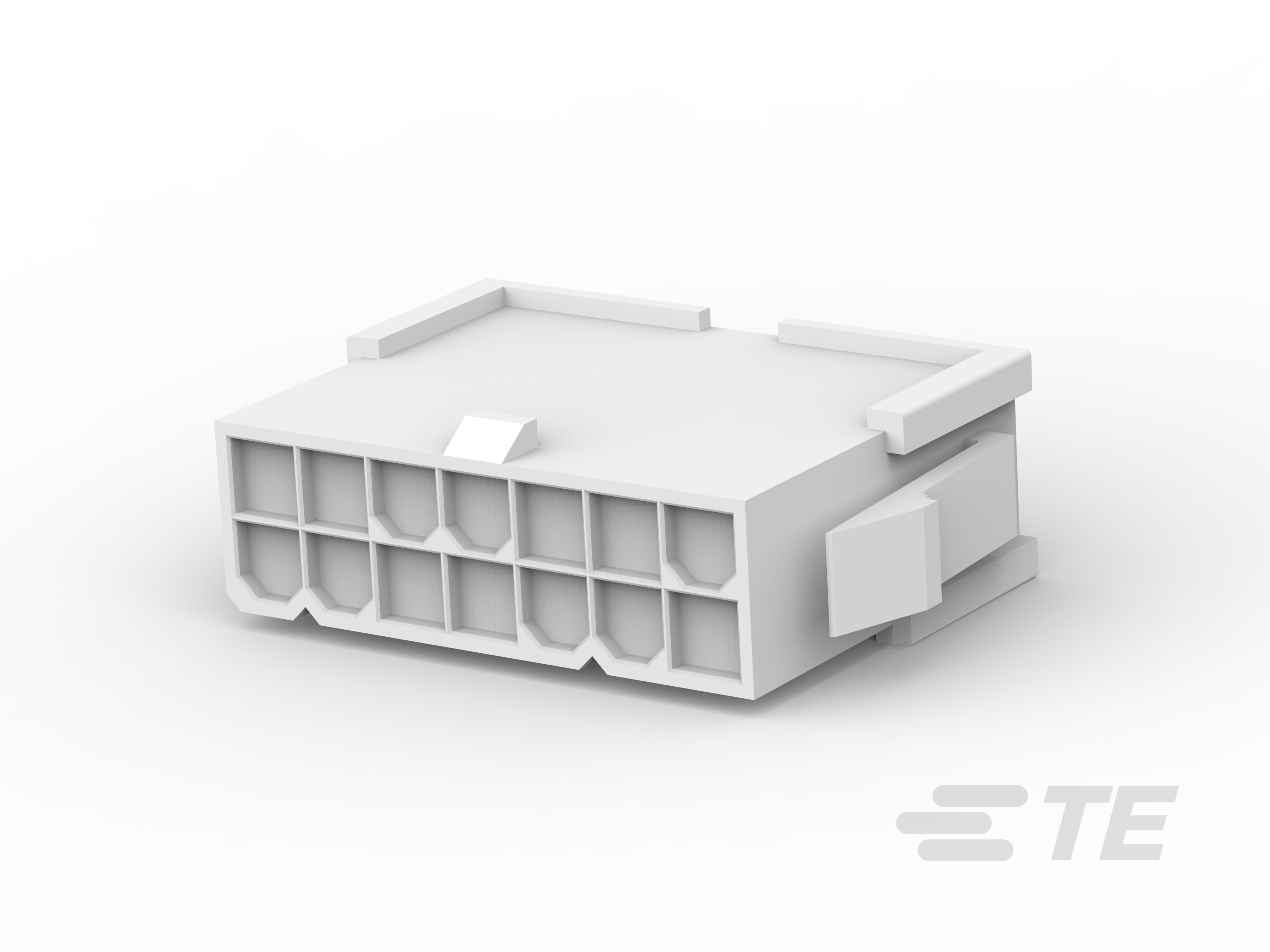

Housing, Plug, Wire-to-Panel / Wire-to-Wire, UL 94V-2, 14 Position, 4.2 mm [.165 in] Centerline, 2 Row, 600 VAC, Standard Rectangular Connectors
1-794953-4
Housing, Plug, Wire-to-Panel / Wire-to-Wire, UL 94V-2, 14 Position, 4.2 mm [.165 in] Centerline, 2 Row, 600 VAC, Standard Rectangular Connectors
-
- VAL-U-LOK
- TE Internal #: 1-794953-4
- TE Internal Description: 14P PM PLUG VAL-U-LOK V2
-
Connector Product Type : Housing
-
Connector & Housing Type : Plug
-
Connector System : Wire-to-Panel, Wire-to-Wire
-
UL Flammability Rating : UL 94V-2
-
Number of Positions : 14
