1-925017-5

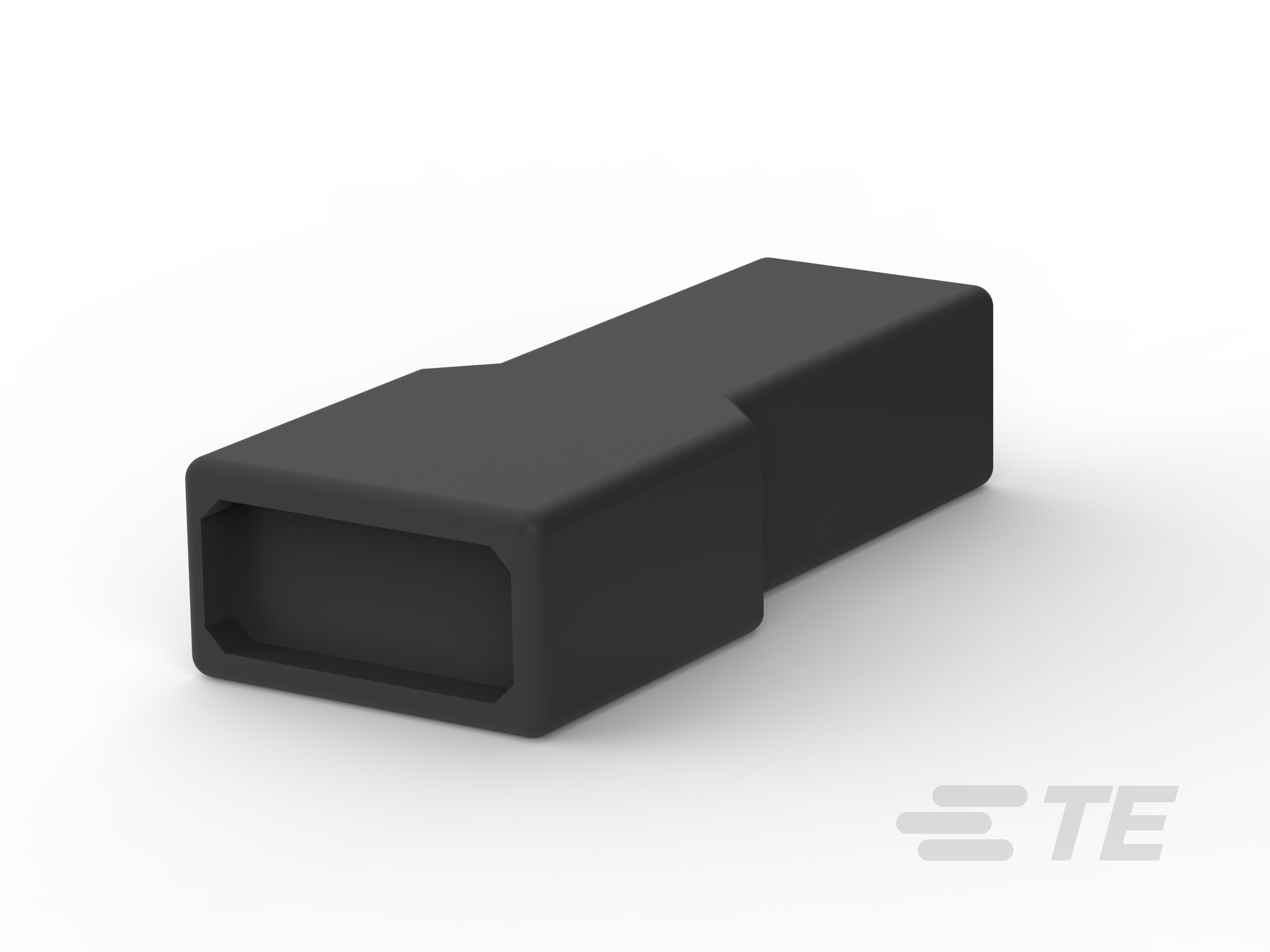

Receptacle, Receptacle, 1 Position, Straight, UL 94V-2, Black, Polyethylene, -40 – 105 °C [-40 – 221 °F], FASTON 250, Crimp Terminal Housings
1-925017-5
Receptacle, Receptacle, 1 Position, Straight, UL 94V-2, Black, Polyethylene, -40 – 105 °C [-40 – 221 °F], FASTON 250, Crimp Terminal Housings
-
- FASTON
- FASTON 250
- TE Internal #: 1-925017-5
- TE Internal Description: 250 FASTON HSG.,REC.,1 POS,BLACK
-
Terminal Type : Receptacle
-
Connector & Housing Type : Receptacle
-
Number of Positions : 1
-
Terminal Orientation : Straight
-
UL Flammability Rating : UL 94V-2
Documents
Product Drawings
- INSULATION - SLEEVE (FOR FASTON # 41771; # 160256) Isolations-Kappe fur Faston ENG_CD_925017_K4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1-925017-5_K.pdf 3D
- Customer View Model ENG_CVM_CVM_1-925017-5_K.2d_dxf.zip English
- ENG_CVM_CVM_1-925017-5_K.3d_igs.zip English
- ENG_CVM_CVM_1-925017-5_K.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-106496_A1.pdf English
