Please review product documents or contact us for the latest agency approval information.

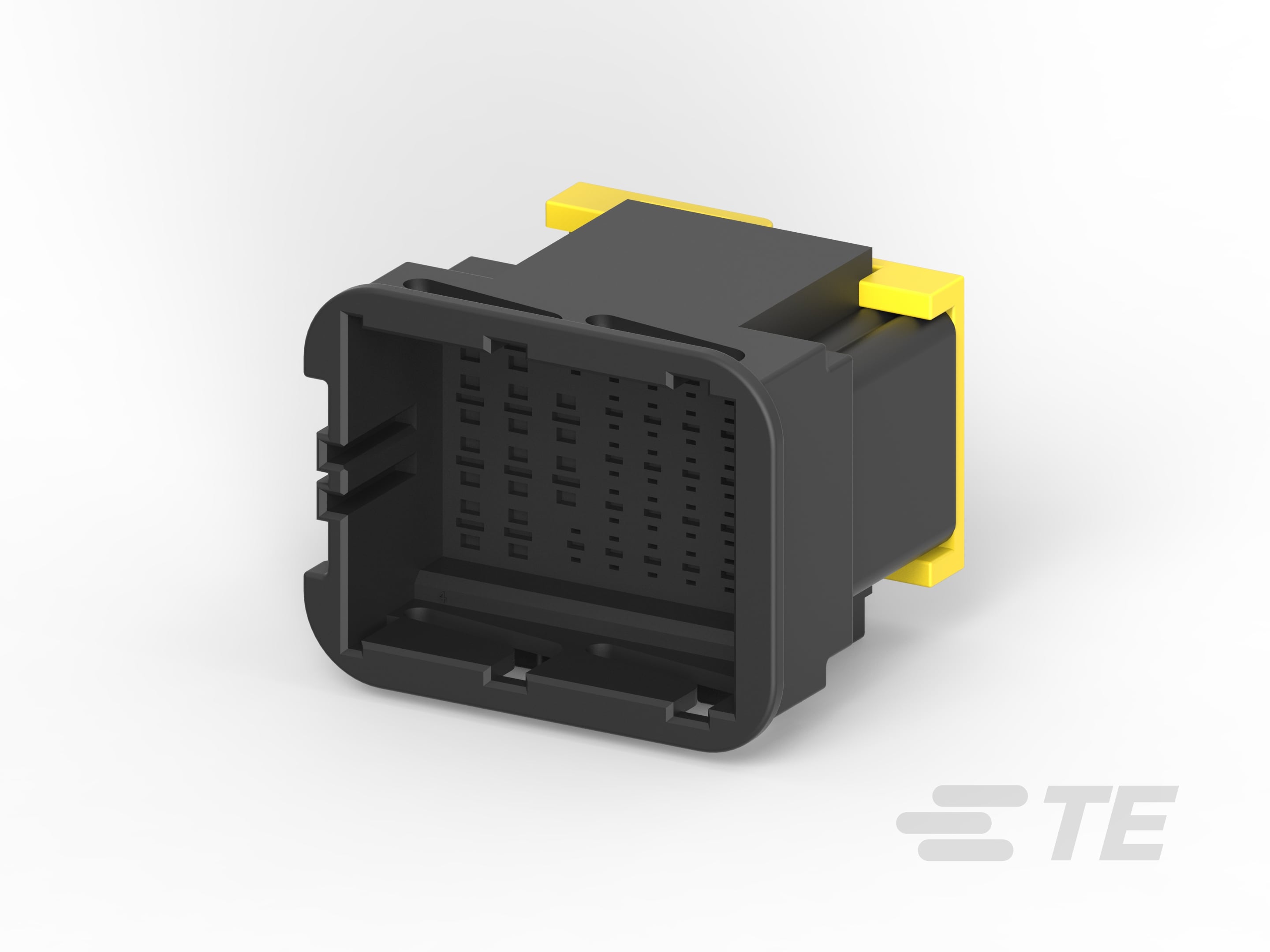

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Male Terminals

• Primary Locking Feature : On the Terminal

• Sealable : Yes

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : Yes

• Number of Positions : 42

• Number of Rows : 5

• Blank Cavity Position : 0

• Primary Product Color : Black

• Cable Exit Angle : 180°

• Mating Tab Width : 1.6 mm [ .063 in ]

• Contact Size : 1.6mm, 2.8mm

• Contact Type : Tab

• Connector Mounting Type : Panel Mount

• Mating Alignment Type : Polarization Slot

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PA GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Product Width : 46.2 mm [ 1.81 in ]

• Connector Height : 40.3 mm [ 1.58 in ]

• Product Length : 53.05 mm [ 2.08 in ]

• Row-to-Row Spacing : 4 mm [ .157 in ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

• Circuit Application : Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 63
