Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

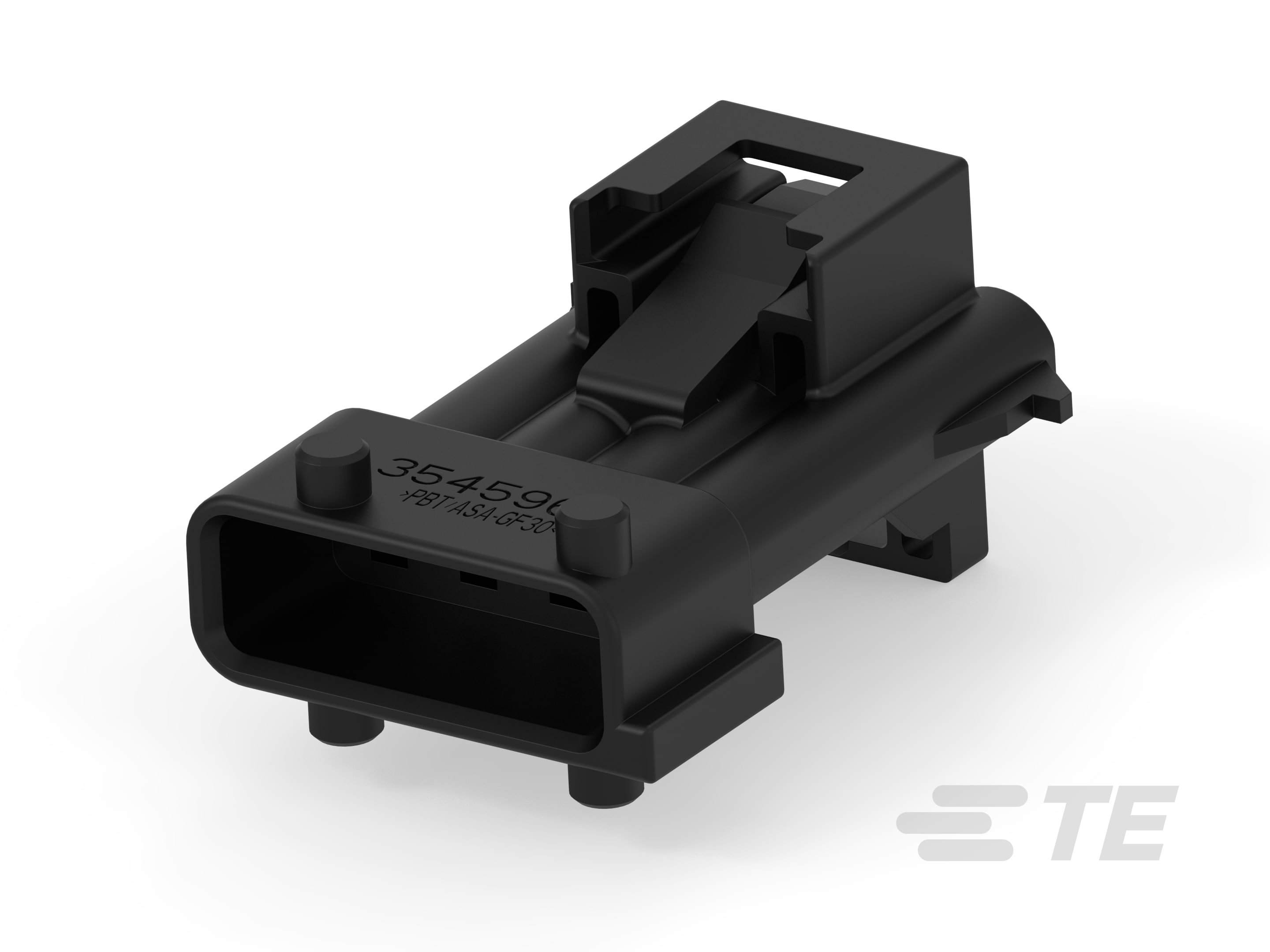

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Sealable : No

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Tab

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Current Rating (Max) (A): 30

• Housing Material : PBT GF

• Centerline (Pitch) : 5 mm [ .197 in ]

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Panel Mount

• Packaging Method : Box

• Connector Height : 38 mm [ 1.496 in ]

• Product Length : 20.6 mm [ .811 in ]

• Product Width : 20.6 mm [ .811 in ]

• Number of Positions : 4

• Number of Rows : 1

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Connector & Keying Code : A1

• Operating Temperature (Max) (°C): 80, 75, 70

• Operating Temperature (Max) (°F): 167, 158, 176

• Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]
